MERSEN Fuse: HSJ Series, Class J, Cylindrical Body, Very-Fast-Acting, 40 A, 600 V AC - Very-Fast-Acting Cylindrical Fuses
MERSENVery-Fast-Acting Cylindrical Fuses

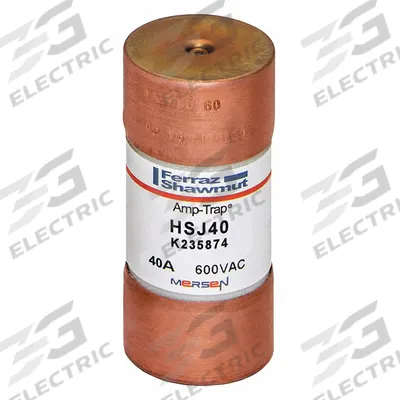

MERSEN Fuse: HSJ Series, Class J, Cylindrical Body, Very-Fast-Acting, 40 A, 600 V AC

The MERSEN HSJ Series is a very-fast-acting cylindrical fuse, Class J, with a 40 A rating at 600 V AC and 500 V DC (MPN HSJ40). This MERSEN fuse provides overcurrent protection for industrial equipment.

SKU 3G-OTH-24830

Brand
MERSEN
Item
Fuse: HSJ Series, Class J, Cylindrical Body, Very-Fast-Acting, 40 A, 600 V AC
Category
Very-Fast-Acting Cylindrical Fuses
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

MERSEN
Manufacturer Part Number
HSJ40
Series
HSJ
Type
Class J, Cylindrical Body, Very-Fast-Acting, 40 A
AC
600 V
DC
500 V
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

MERSEN Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The MERSEN HSJ Series is a very-fast-acting cylindrical fuse, Class J, with a 40 A rating at 600 V AC and 500 V DC (MPN HSJ40). This MERSEN fuse provides overcurrent protection for industrial equipment.

Frequently Asked Questions

What is the MERSEN HSJ40 fuse used for?

The MERSEN HSJ40 is a very-fast-acting Class J cylindrical fuse rated 40 A at 600 V AC and 500 V DC. It provides overcurrent protection for industrial equipment such as motor control centers, panelboards, and power supplies where rapid clearing of short circuits is required.

What are the specifications of the MERSEN HSJ40 fuse?

The MERSEN HSJ40 is a Class J, cylindrical-body, very-fast-acting fuse rated 40 A, 600 V AC, and 500 V DC. It is part of the HSJ series and carries the manufacturer part number HSJ40. These ratings ensure reliable overcurrent protection in demanding industrial circuits.

Where to buy MERSEN HSJ40 fuses worldwide?

3G Electric supplies the MERSEN HSJ40 fuse to customers worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your site. Contact us for a quote and lead time on this Class J, 40 A, 600 V AC / 500 V DC fuse.

How to select the right MERSEN HSJ series fuse for an application?

To select the correct MERSEN HSJ series fuse, match the voltage rating (600 V AC or 500 V DC) and current rating (e.g., 40 A for HSJ40) to your circuit requirements. Ensure the Class J rejection-style holder is used. Consult the manufacturer's time-current curve for coordination with upstream devices.
