MIDWEST INSTRUMENT 3-Color Differential Pressure Indicator: 1,000 psig Max - Differential Pressure Indicators
MIDWEST INSTRUMENTDifferential Pressure Indicators

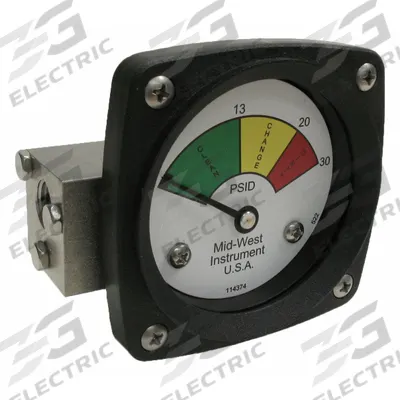

MIDWEST INSTRUMENT 3-Color Differential Pressure Indicator: 1,000 psig Max

The MIDWEST INSTRUMENT 3-Color Differential Pressure Indicator (MPN 522S-030V) is a differential pressure indicator with a maximum static pressure of 1,000 psig. It features a stainless steel housing and a Viton…

SKU 3G-OTH-174447

Brand
MIDWEST INSTRUMENT
Item
3-Color Differential Pressure Indicator: 1,000 psig Max
Category
Differential Pressure Indicators
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

MIDWEST INSTRUMENT
Manufacturer Part Number
522S-030V
Type
Static Pressure, 522
Accuracy
±5% of Full Scale
Sensor Material
Viton
Housing Material
Stainless Steel
Transition Points
0 psid to 13 psid (Green) / 13 psid to 20 psid (Yellow) / 20 psid to 30 psid (Red)
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

MIDWEST INSTRUMENT Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The MIDWEST INSTRUMENT 3-Color Differential Pressure Indicator (MPN 522S-030V) is a differential pressure indicator with a maximum static pressure of 1,000 psig. It features a stainless steel housing and a Viton sensor, with an accuracy of ±5% of Full Scale. The indicator uses three color-coded transition points: green from 0 psid to 13 psid, yellow from 13 psid to 20 psid, and red from 20 psid to 30 psid.

Frequently Asked Questions

What is the MIDWEST INSTRUMENT 3-Color Differential Pressure Indicator used for?

This indicator is used to monitor differential pressure in industrial fluid systems, such as filtration, pump protection, and process control. The three-color scale (green, yellow, red) provides a quick visual status of filter condition or system pressure drop, helping operators avoid unplanned downtime.

What are the specifications of the MIDWEST INSTRUMENT 522S-030V?

The MIDWEST INSTRUMENT 522S-030V has a maximum static pressure of 1,000 psig, accuracy of ±5% of Full Scale, a Viton sensor, and a stainless steel housing. Transition points are 0 psid to 13 psid (green), 13 psid to 20 psid (yellow), and 20 psid to 30 psid (red).

Where to buy the MIDWEST INSTRUMENT 522S-030V worldwide?

3G Electric supplies the MIDWEST INSTRUMENT 522S-030V differential pressure indicator to customers worldwide. We handle full logistics, customs clearance, and delivery to your site. Contact us for a quote and lead time on this model.

How to select a differential pressure indicator for filter monitoring?

Select a differential pressure indicator based on your system's maximum static pressure, required accuracy, and fluid compatibility. For filter monitoring, choose a model with color-coded transition points matching your acceptable pressure drop range. The MIDWEST INSTRUMENT 522S-030V offers a clear visual alert from green to red.

Used in

Common applications for MIDWEST INSTRUMENT
Filter monitoring in industrial water treatment — MIDWEST INSTRUMENT 522 series 3-color differential pressure indicators
Flow measurement in chemical processing — MIDWEST INSTRUMENT Series 120 piston-type differential pressure gauges
Liquid level indication in oil and gas storage tanks — MIDWEST INSTRUMENT Model 142 diaphragm-type differential pressure gauges
HVAC system filter condition monitoring — MIDWEST INSTRUMENT Series 130 differential pressure gauges with glass-reinforced plastic housing
Pump differential pressure monitoring in industrial plants — MIDWEST INSTRUMENT 522 series indicators with switch for alarm output
