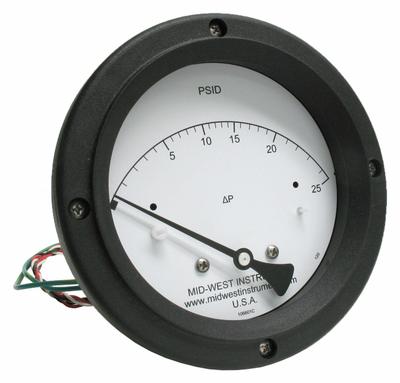

MIDWEST INSTRUMENT Differential Pressure Gauge & Switch: Back, 1/4 in NPT Female, 120 - Medium & High Operating Pressure Differential Gauges with Switch
MIDWEST INSTRUMENTMedium & High Operating Pressure Differential Gauges with Switch

MIDWEST INSTRUMENT Differential Pressure Gauge & Switch: Back, 1/4 in NPT Female, 120

The MIDWEST INSTRUMENT Differential Pressure Gauge & Switch: Back is a medium and high operating pressure differential gauge with switch from the Series 120. It features a 4 1/2 in dial, 1/4 in NPT female connection…

SKU 3G-OTH-174637

Brand
MIDWEST INSTRUMENT
Item
Differential Pressure Gauge & Switch: Back, 1/4 in NPT Female, 120
Category
Medium & High Operating Pressure Differential Gauges with Switch
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

MIDWEST INSTRUMENT
Manufacturer Part Number
120AC-00-O-AA-25P
Series
120
Type
120
Dial
4 1/2 in
NPT Female
1/4 in
Sensor Type
Piston
Gauge Accuracy
±3-2-3%
Housing Material
Aluminum
Certificate of Calibration
Not Included
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

MIDWEST INSTRUMENT Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The MIDWEST INSTRUMENT Differential Pressure Gauge & Switch: Back is a medium and high operating pressure differential gauge with switch from the Series 120. It features a 4 1/2 in dial, 1/4 in NPT female connection, and a piston sensor type. The aluminum housing provides durability, and the gauge accuracy is ±3-2-3%. Note that a certificate of calibration is not included.

Used in

Common applications for MIDWEST INSTRUMENT
Filter monitoring in industrial water treatment — MIDWEST INSTRUMENT 522 series 3-color differential pressure indicators
Flow measurement in chemical processing — MIDWEST INSTRUMENT Series 120 piston-type differential pressure gauges
Liquid level indication in oil and gas storage tanks — MIDWEST INSTRUMENT Model 142 diaphragm-type differential pressure gauges
HVAC system filter condition monitoring — MIDWEST INSTRUMENT Series 130 differential pressure gauges with glass-reinforced plastic housing
Pump differential pressure monitoring in industrial plants — MIDWEST INSTRUMENT 522 series indicators with switch for alarm output

MIDWEST INSTRUMENT Products

3G Electric supplies MIDWEST INSTRUMENT medium & high operating pressure differential gauges with switch. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
