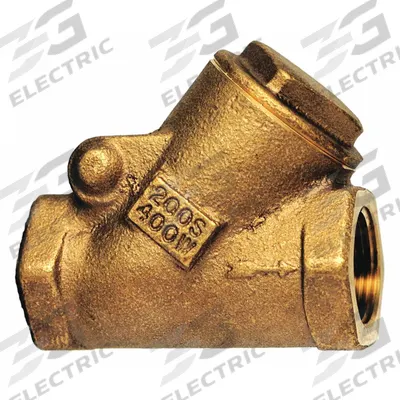

MILWAUKEE VALVE Swing Y Check Valve: Swing, Y-Style Valve Body, 1/2 in Pipe Size, FNPT x FNPT - Bronze Y Swing Check Valves
MILWAUKEE VALVEBronze Y Swing Check Valves

MILWAUKEE VALVE Swing Y Check Valve: Swing, Y-Style Valve Body, 1/2 in Pipe Size, FNPT x FNPT

The MILWAUKEE VALVE Swing Y Check Valve is a bronze Y-style swing check valve with a 1/2 in pipe size and FNPT x FNPT, NPT connections (MPN 509Y 1/2"). It is designed for reliable flow control in industrial piping…

SKU 3G-OTH-434139

Brand
MILWAUKEE VALVE
Item
Swing Y Check Valve: Swing, Y-Style Valve Body, 1/2 in Pipe Size, FNPT x FNPT
Category
Bronze Y Swing Check Valves
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

MILWAUKEE VALVE
Manufacturer Part Number
509Y 1/2"
Type
Y-Style Valve Body, FNPT x FNPT, NPT
Pipe Size
1/2 in
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

MILWAUKEE VALVE Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The MILWAUKEE VALVE Swing Y Check Valve is a bronze Y-style swing check valve with a 1/2 in pipe size and FNPT x FNPT, NPT connections (MPN 509Y 1/2"). It is designed for reliable flow control in industrial piping systems.

Frequently Asked Questions

What is the MILWAUKEE VALVE Swing Y Check Valve used for?

The MILWAUKEE VALVE Swing Y Check Valve is used to prevent backflow in industrial piping systems. Its Y-style body design allows inline flow with minimal pressure drop, making it suitable for water, oil, and gas applications in commercial and industrial facilities.

What are the specifications of the MILWAUKEE VALVE 509Y 1/2"?

The MILWAUKEE VALVE 509Y 1/2" is a bronze Y swing check valve with a 1/2 inch pipe size and FNPT x FNPT NPT connections. It features a swing disc mechanism for reliable backflow prevention. The valve body is Y-style, enabling straight-through flow and easy maintenance access.

Where to buy MILWAUKEE VALVE Swing Y Check Valve worldwide?

You can source the MILWAUKEE VALVE Swing Y Check Valve worldwide through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time on this valve.

How to install a MILWAUKEE VALVE Swing Y Check Valve?

Install the MILWAUKEE VALVE Swing Y Check Valve with the flow arrow pointing in the correct direction. Use thread sealant on NPT connections and tighten to standard torque. Ensure the valve is accessible for maintenance. Always follow local piping codes and manufacturer guidelines for proper installation.

Used in

Common applications for MILWAUKEE VALVE
Oxygen service systems — Milwaukee Valve oxygen-cleaned brass ball valves (e.g., MPN 17907S) for high-purity gas handling
Potable water distribution — Milwaukee Valve non-rising stem brass gate valves (e.g., MPN UP667 1") for isolation in plumbing networks
Steam and hot water systems — Milwaukee Valve bronze globe valves (e.g., MPN 502 1-1/2) for flow regulation in industrial boilers
Gas and oil pipelines — Milwaukee Valve angle-body globe valves (e.g., MPN 504-3/4) for throttling in fuel supply lines
Process piping — Milwaukee Valve full-port brass ball valves (e.g., MPN UPBA475B 2) for minimal pressure drop in chemical transfer
Drain and vent applications — Milwaukee Valve stainless steel vented ball valves (e.g., MPN 35FSSN0LL-034) for system purging in sanitary processes

MILWAUKEE VALVE Products

3G Electric supplies MILWAUKEE VALVE bronze y swing check valves. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
