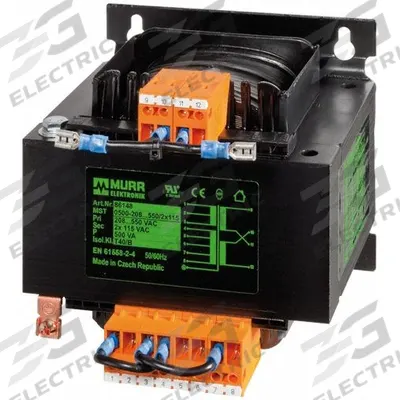

MURRELEKTRONIK Transformer: 208 to 550V AC, 115V AC/230V AC, Floor/Wall, 320 VA - Finger-Safe, Open Core Control Transformers
MURRELEKTRONIKFinger-Safe, Open Core Control Transformers

MURRELEKTRONIK Transformer: 208 to 550V AC, 115V AC/230V AC, Floor/Wall, 320 VA

The MURRELEKTRONIK Transformer (SKU 2AH045, MPN 86146) is a single-phase, finger-safe open core control transformer with a power rating of 320 VA. It accepts an input voltage of 208 to 550V AC and provides an output…

SKU 3G-OTH-45249

Brand
MURRELEKTRONIK
Item
Transformer: 208 to 550V AC, 115V AC/230V AC, Floor/Wall, 320 VA
Category
Finger-Safe, Open Core Control Transformers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

MURRELEKTRONIK
Manufacturer Part Number
86146
Type
Floor/Wall, 320 VA, Circuit Breaker
Phase
Single
AC/230V AC
115V
Power Rating
320 VA
Input Voltage
208 to 550V AC
Output Voltage
115V AC
Mounting Location
Wall
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

MURRELEKTRONIK Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The MURRELEKTRONIK Transformer (SKU 2AH045, MPN 86146) is a single-phase, finger-safe open core control transformer with a power rating of 320 VA. It accepts an input voltage of 208 to 550V AC and provides an output voltage of 115V AC. This unit is designed for wall mounting.

Frequently Asked Questions

What is the MURRELEKTRONIK transformer 86146 used for?

The MURRELEKTRONIK transformer 86146 is a single-phase, finger-safe open core control transformer used to step down industrial line voltages from 208 to 550V AC to a stable 115V AC output. It is commonly applied in control panels, machinery, and automation systems requiring isolated low-voltage power for relays, PLCs, and sensors.

What are the specifications of the MURRELEKTRONIK transformer 86146?

The MURRELEKTRONIK transformer 86146 is rated at 320 VA with an input voltage range of 208 to 550V AC and a fixed output of 115V AC. It is a single-phase unit designed for wall mounting and includes a circuit breaker. The MPN is 86146 and the SKU is 2AH045.

Where to buy the MURRELEKTRONIK transformer 86146 worldwide?

3G Electric supplies the MURRELEKTRONIK transformer 86146 to customers worldwide. We handle full logistics, customs clearance, and delivery to your site. As a global industrial solutions provider, we source and deliver this control transformer for applications across 14 industrial departments including electrical, machining, and automation.

How to install the MURRELEKTRONIK transformer 86146?

Mount the MURRELEKTRONIK transformer 86146 securely on a wall using the provided mounting brackets. Ensure the input voltage (208 to 550V AC) matches your supply and connect the primary and secondary terminals per the wiring diagram. Use appropriate overcurrent protection and verify the 115V AC output before energizing the load.
