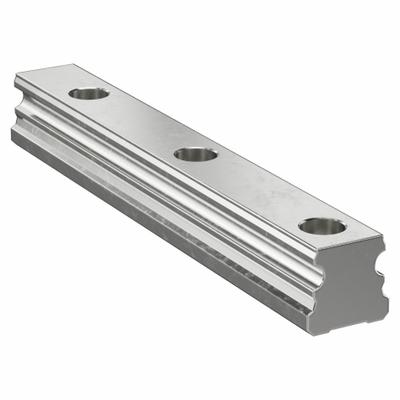

NB Guide Rail: 25, 760 mm Overall Lg, 25 mm Overall Wd, 21.8 mm Overall Ht - Alulin Series Steel-Reinforced Aluminum Guide Rails
NBAlulin Series Steel-Reinforced Aluminum Guide Rails

NB Guide Rail: 25, 760 mm Overall Lg, 25 mm Overall Wd, 21.8 mm Overall Ht

The NB Guide Rail: 25 is an Alulin Series steel-reinforced aluminum guide rail with a nominal rail size of 25, an overall length of 760 mm, an overall width of 25 mm, and an overall height of 21.8 mm. This product…

SKU 3G-OTH-122700

Brand
NB
Item
Guide Rail: 25, 760 mm Overall Lg, 25 mm Overall Wd, 21.8 mm Overall Ht
Category
Alulin Series Steel-Reinforced Aluminum Guide Rails
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

NB
Manufacturer Part Number
A25-760mm
Type
Aluminum
Overall Lg
760 mm
Size
25
Overall Ht
21.8 mm
Overall Wd
25 mm
Nominal Rail Size
25
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

NB Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The NB Guide Rail: 25 is an Alulin Series steel-reinforced aluminum guide rail with a nominal rail size of 25, an overall length of 760 mm, an overall width of 25 mm, and an overall height of 21.8 mm. This product, manufactured by NB under part number A25-760mm, is constructed from aluminum.

Used in

Common applications for NB
Industrial automation — NB Alulin series guide rails (e.g., A20-760mm) used in pick-and-place gantries for lightweight, high-speed linear motion.
Packaging machinery — NB ball spline shafts (e.g., SSP8S-500mm) in rotary indexing tables for precise torque transmission and linear movement.
Semiconductor manufacturing — NB stainless steel ball spline shafts (e.g., SSP6S-150mm) in wafer handling robots for corrosion resistance and precision.
Medical device assembly — NB Alulin series runner blocks (e.g., GNS-1500) in diagnostic equipment for smooth, low-friction linear positioning.
CNC machine tools — NB ball spline nuts (e.g., SSPF 10) in tool changers for reliable linear actuation under load.
Printing equipment — NB Alulin series guide rails (e.g., A20-4000mm) in large-format printers for long-stroke, lightweight linear guidance.

NB Products

3G Electric supplies NB alulin series steel-reinforced aluminum guide rails. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
