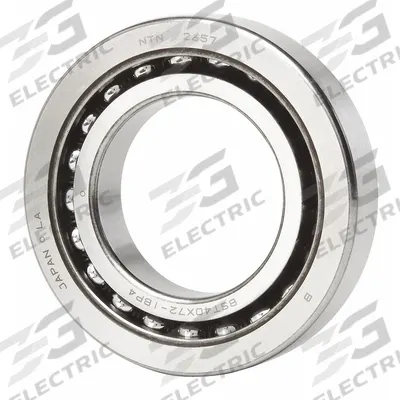

NTN Ball Screw Support Bearing: 40X90, 1 Row, 60°, Open, ABEC 7, Thermoplastic Cage - Angular Contact Thrust Bearings for Ball Screws
NTNAngular Contact Thrust Bearings for Ball Screws

NTN Ball Screw Support Bearing: 40X90, 1 Row, 60°, Open, ABEC 7, Thermoplastic Cage

The NTN Ball Screw Support Bearing: 40X90 is a single, angular contact thrust bearing for ball screws, featuring a 40 mm bore, a 60° contact angle, an open design, an ABEC 7 precision rating, and a thermoplastic…

SKU 3G-OTH-97395

Brand
NTN
Item
Ball Screw Support Bearing: 40X90, 1 Row, 60°, Open, ABEC 7, Thermoplastic Cage
Category
Angular Contact Thrust Bearings for Ball Screws
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

NTN
Manufacturer Part Number
BST40X90-1BP4
Type
60°, Open, ABEC 7, Thermoplastic Cage
Bore
40 mm
Row
1
Bearing Type
Single Bearing
Contact Bearing Type
Angular Contact
Matched Bearing Type
Not Matched/Single Bearing
System of Measurement
Metric
Bearing Industry Number
40X90
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

NTN Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The NTN Ball Screw Support Bearing: 40X90 is a single, angular contact thrust bearing for ball screws, featuring a 40 mm bore, a 60° contact angle, an open design, an ABEC 7 precision rating, and a thermoplastic cage. This metric bearing, identified by industry number 40X90 and manufacturer part number BST40X90-1BP4, is supplied as a single bearing with no matched pairing.

Frequently Asked Questions

What is the NTN Ball Screw Support Bearing 40X90 used for?

The NTN Ball Screw Support Bearing 40X90 is used to support ball screws in precision linear motion systems, such as CNC machine tools, robotics, and industrial automation. Its angular contact design and 60° contact angle handle axial loads from ball screw thrust, while the ABEC 7 rating ensures high rotational accuracy for positioning applications.

What are the specifications of the NTN BST40X90-1BP4 bearing?

The NTN BST40X90-1BP4 is a single angular contact thrust bearing with a 40 mm bore, 90 mm outer diameter, 1 row, 60° contact angle, open design, ABEC 7 precision, and a thermoplastic cage. It is metric, not matched, and carries the industry number 40X90. NTN manufactures this bearing for ball screw support applications.

Where to buy the NTN Ball Screw Support Bearing 40X90 worldwide?

You can source the NTN Ball Screw Support Bearing 40X90 worldwide through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time; we supply genuine NTN bearings for ball screw support applications.

How to select the NTN Ball Screw Support Bearing 40X90 for a ball screw?

To select the NTN Ball Screw Support Bearing 40X90, match the 40 mm bore to your ball screw shaft diameter and ensure the 90 mm outer diameter fits your housing. The 60° contact angle and ABEC 7 precision suit high-axial-load, high-accuracy applications. Use a single bearing if preload adjustment is separate; consult NTN guidelines for installation and lubrication.
