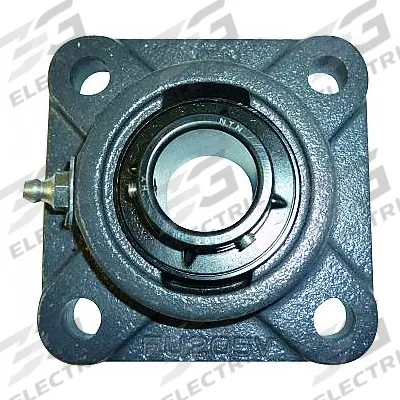

NTN 4 Bolt Flange Bearing: Radial Ball, 3 in Bore, Cast Iron, Set Screws - General Purpose Flange-Mount Ball Bearings
NTNGeneral Purpose Flange-Mount Ball Bearings

NTN 4 Bolt Flange Bearing: Radial Ball, 3 in Bore, Cast Iron, Set Screws

The NTN 4 Bolt Flange Bearing is a general purpose flange-mount ball bearing with a 3 in cylindrical bore and cast iron housing. It features set screws for shaft locking and uses NLGI #3 equivalent lubricant. This…

SKU 3G-OTH-105907

Brand
NTN
Item
4 Bolt Flange Bearing: Radial Ball, 3 in Bore, Cast Iron, Set Screws
Category
General Purpose Flange-Mount Ball Bearings
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

NTN
Manufacturer Part Number
UCFUX-3M
Type
Cast Iron, Set Screws
Bore
3 in
Lg
7 7/8 in
Wd
3 23/64 in
Bore Type
Cylindrical
Lubricant Material
NLGI #3 Equivalent
Mounting Bolt Size
3/4 in
System of Measurement
Inch
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

NTN Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The NTN 4 Bolt Flange Bearing is a general purpose flange-mount ball bearing with a 3 in cylindrical bore and cast iron housing. It features set screws for shaft locking and uses NLGI #3 equivalent lubricant. This inch-system unit has a mounting bolt size of 3/4 in and overall dimensions of 7 7/8 in length by 3 23/64 in width.

Frequently Asked Questions

What is the NTN 4 Bolt Flange Bearing used for?

The NTN 4 Bolt Flange Bearing is used to support rotating shafts in industrial machinery such as conveyors, fans, and material handling equipment. Its cast iron housing and set screw locking provide reliable radial load support in general purpose applications.

What are the specifications of the NTN UCFUX-3M flange bearing?

The NTN UCFUX-3M has a 3 in cylindrical bore, cast iron housing, set screw shaft locking, and NLGI #3 equivalent lubricant. It uses a 3/4 in mounting bolt, measures 7 7/8 in length by 3 23/64 in width, and follows the inch system of measurement.

Where to buy the NTN UCFUX-3M flange bearing worldwide?

You can source the NTN UCFUX-3M flange bearing through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations, ensuring you receive the correct NTN bearing for your application.

How to install the NTN 4 Bolt Flange Bearing with set screws?

To install, align the bearing housing on a flat surface and tighten the 3/4 in mounting bolts. Slide the shaft through the bore, then tighten the set screws evenly against the shaft using a hex key. Ensure the shaft is properly aligned to avoid binding.
