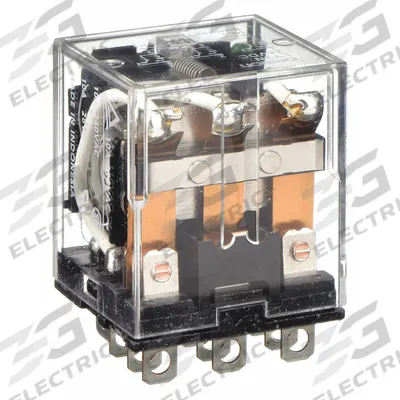

OMRON General Purpose Relay: Socket Mounted, 10 A Current Rating, 24V DC, 3PDT
The OMRON General Purpose Relay: Socket Mounted (SKU 1YCR4, MPN LY3N-DC24) is a plug-in relay from the LY Series with a square base and flat pins. It features a 3PDT contact configuration, 11 pins/terminals, and a…
SKU 3G-OTH-38708
Need installation or engineering help?
Ask a question
Product Description
The OMRON General Purpose Relay: Socket Mounted (SKU 1YCR4, MPN LY3N-DC24) is a plug-in relay from the LY Series with a square base and flat pins. It features a 3PDT contact configuration, 11 pins/terminals, and a quick-connect electrical connection. The relay operates at 24V DC with an inductive load current rating of 5 A and a general current rating of 10 A.
Frequently Asked Questions
What is the OMRON LY3N-DC24 relay used for?
The OMRON LY3N-DC24 is a general-purpose relay used for switching industrial loads in control panels, automation systems, and machinery. Its 3PDT configuration and 10 A rating suit motor starters, conveyor controls, and HVAC equipment. 3G Electric supplies this relay worldwide.
What are the specifications of the OMRON LY3N-DC24 relay?
The OMRON LY3N-DC24 is a socket-mounted relay from the LY Series with a square base and flat pins. It has a 3PDT contact arrangement, 11 terminals, and quick-connect wiring. Operating at 24V DC, it carries 10 A general current and 5 A inductive load. Plug-in mounting simplifies replacement.
Where to buy the OMRON LY3N-DC24 relay worldwide?
You can source the OMRON LY3N-DC24 relay from 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead times on this LY Series relay.
How to install the OMRON LY3N-DC24 relay?
To install the OMRON LY3N-DC24, ensure the relay coil voltage matches your 24V DC supply. Plug the relay into a compatible square-base socket until it clicks. Use quick-connect terminals for wiring, and verify the 3PDT contacts are correctly assigned. Always de-energize circuits before installation.
Used in
Common applications for OMRONOMRON Products
3G Electric supplies OMRON socket-mounted relays. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
