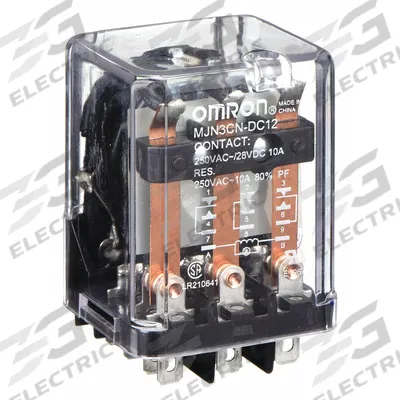

OMRON General Purpose Relay: Socket Mounted, 10 A Current Rating, 12V DC, 3PDT
The OMRON MJN Series General Purpose Relay is a socket-mounted, plug-in relay with a square base and flat pins. It features a 3PDT contact configuration, a 10 A current rating, and operates on 12V DC. The relay uses…
SKU 3G-OTH-36962
Need installation or engineering help?
Ask a question
Product Description
The OMRON MJN Series General Purpose Relay is a socket-mounted, plug-in relay with a square base and flat pins. It features a 3PDT contact configuration, a 10 A current rating, and operates on 12V DC. The relay uses quick-connect electrical connections and has 11 pins/terminals, with the manufacturer part number MJN3C-N-DC12.
Frequently Asked Questions
What is the OMRON MJN3C-N-DC12 relay used for?
The OMRON MJN3C-N-DC12 is a general-purpose relay used for switching loads in industrial control panels, HVAC systems, and automation equipment. Its 3PDT configuration and 10 A rating make it suitable for motor starters, lighting controls, and signal switching in machinery.
What are the specifications of the OMRON MJN3C-N-DC12 relay?
The OMRON MJN3C-N-DC12 is a socket-mounted relay with a square base and flat pins. It has a 3PDT contact configuration, 10 A current rating, 12V DC coil voltage, and 11 quick-connect terminals. It is part of the MJN Series and uses plug-in mounting.
Where to buy the OMRON MJN3C-N-DC12 relay worldwide?
You can source the OMRON MJN3C-N-DC12 relay through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead times.
How to install the OMRON MJN3C-N-DC12 relay?
To install the OMRON MJN3C-N-DC12 relay, ensure the socket is correctly wired and mounted. Align the relay's flat pins with the socket, then press firmly until it clicks into place. Verify the coil voltage (12V DC) and connections before energizing the circuit.
