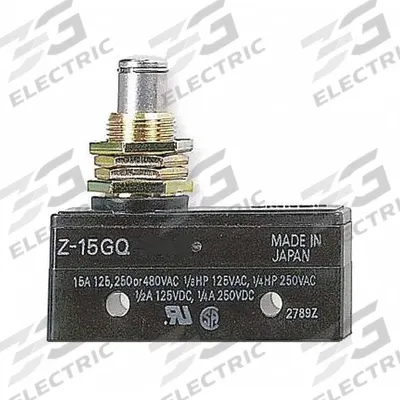

OMRON Snap Action Switch: Plunger Actuator, 1NO/1NC - Plunger Snap-Action Switches
OMRONPlunger Snap-Action Switches

OMRON Snap Action Switch: Plunger Actuator, 1NO/1NC

The OMRON Z-15GQ is a plunger snap-action switch from the Z Series, featuring a plunger actuator and a 1NO/1NC contact configuration with solder electrical connection. It is rated for 15 A at 250 V AC. This switch is…

SKU 3G-OTH-39426

Brand
OMRON
Item
Snap Action Switch: Plunger Actuator, 1NO/1NC
Category
Plunger Snap-Action Switches
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

OMRON
Manufacturer Part Number
Z-15GQ
Series
Z
AC Contact Rating
15 A @ 250 V
Electrical Connection
Solder
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

OMRON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The OMRON Z-15GQ is a plunger snap-action switch from the Z Series, featuring a plunger actuator and a 1NO/1NC contact configuration with solder electrical connection. It is rated for 15 A at 250 V AC. This switch is designed for industrial applications requiring precise, reliable switching.

Frequently Asked Questions

What is the OMRON Z-15GQ snap action switch used for?

The OMRON Z-15GQ is a plunger snap-action switch used in industrial automation for precise, reliable switching. It is commonly applied in limit sensing, position detection, and safety interlock circuits on machinery, conveyors, and packaging equipment where a compact, durable switch with a 15 A rating at 250 V AC is required.

What are the specifications of the OMRON Z-15GQ?

The OMRON Z-15GQ is a Z Series plunger snap-action switch with a 1NO/1NC contact configuration. It has an AC contact rating of 15 A at 250 V and uses a solder electrical connection. The plunger actuator provides direct mechanical actuation for reliable switching in industrial environments.

Where to buy the OMRON Z-15GQ worldwide?

You can source the OMRON Z-15GQ through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time; we provide this OMRON snap-action switch to procurement teams and engineers globally.

How to install the OMRON Z-15GQ snap action switch?

To install the OMRON Z-15GQ, mount the switch securely using its mounting holes, ensuring the plunger aligns with the actuating mechanism. Solder wires to the common, normally open, and normally closed terminals per your circuit diagram. Verify the actuator travel and force meet the switch's specifications before energizing the circuit.
