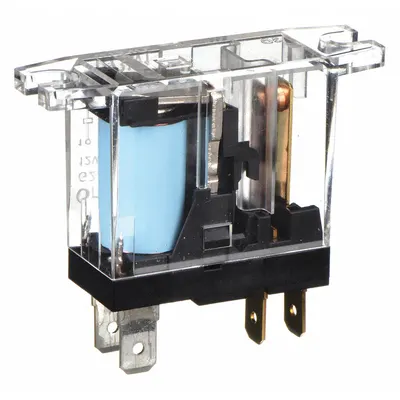

OMRON Flange Mount Relay: Surface (Top Flange) Mounted, 10 A Current Rating, 12V DC
The OMRON Flange Mount Relay is a surface (top flange) mounted relay from the G2R Power Series, featuring a square base and quick-connect electrical connection. It operates with a 10 A current rating at 30V DC…
SKU 3G-OTH-35988
Also listed as: G2R1ATDC12 · G2R 1A T DC12
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
The OMRON Flange Mount Relay is a surface (top flange) mounted relay from the G2R Power Series, featuring a square base and quick-connect electrical connection. It operates with a 10 A current rating at 30V DC (resistive load) and 12V DC coil voltage, with an SPST-NO contact configuration (MPN G2R-1A-T-DC12).
Frequently Asked Questions
What is the OMRON G2R-1A-T-DC12 flange mount relay used for?
The OMRON G2R-1A-T-DC12 is a surface-mounted relay from the G2R Power Series, designed for industrial control panels, automation systems, and switching resistive loads up to 10 A at 30V DC. Its top flange mount and quick-connect terminals simplify installation in tight spaces.
What are the specifications of the OMRON G2R-1A-T-DC12 relay?
The OMRON G2R-1A-T-DC12 is a SPST-NO relay with a 12V DC coil, 10 A current rating at 30V DC (resistive load), square base, top flange mounting, and quick-connect electrical connection. It is part of the G2R Power Series and has MPN G2R-1A-T-DC12.
Where to buy the OMRON G2R-1A-T-DC12 relay worldwide?
You can source the OMRON G2R-1A-T-DC12 relay through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time.
How to install the OMRON G2R-1A-T-DC12 flange mount relay?
Mount the OMRON G2R-1A-T-DC12 relay using its top flange with screws onto a flat surface. Connect wires to the quick-connect terminals per the wiring diagram. Ensure the coil voltage is 12V DC and the load does not exceed 10 A at 30V DC. Follow standard electrical safety practices.
Used in
Common applications for OMRONOMRON Products
3G Electric supplies OMRON surface-mounted relays. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
