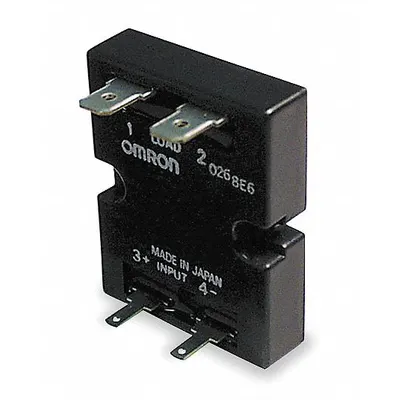

OMRON Solid State Relay: Surface Mounted, 10 A Max Output Current, Phototriac
The OMRON Solid State Relay: Surface Mounted (MPN G3NE-210T-US-DC5) is a panel-mounted, Form A, AC-output relay with a DC input current of 5 A and an output voltage range of 120 to 240V AC. It features a…
SKU 3G-OTH-37911
Also listed as: G3NE210TUSDC5 · G3NE 210T US DC5
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
The OMRON Solid State Relay: Surface Mounted (MPN G3NE-210T-US-DC5) is a panel-mounted, Form A, AC-output relay with a DC input current of 5 A and an output voltage range of 120 to 240V AC. It features a quick-connect electrical connection and a maximum output current of 5 A without a heat sink. This surface-mounted relay is not finger-safe and is designed for DC current type applications.
Frequently Asked Questions
What is the OMRON G3NE-210T-US-DC5 solid state relay used for?
The OMRON G3NE-210T-US-DC5 is a panel-mounted solid state relay used for switching AC loads in industrial automation, HVAC, and process control systems. Its phototriac output provides silent, fast switching for resistive or inductive loads up to 240V AC, making it suitable for heaters, motors, and lighting.
What are the specifications of the OMRON G3NE-210T-US-DC5?
The OMRON G3NE-210T-US-DC5 is a DC-input, AC-output solid state relay with a Form A (SPST-NO) switch configuration. It has an input current of 5 A, output voltage range of 120 to 240V AC, maximum output current of 10 A (5 A without heat sink), and quick-connect terminals. It is panel-mounted and not finger-safe.
Where to buy the OMRON G3NE-210T-US-DC5 worldwide?
You can source the OMRON G3NE-210T-US-DC5 solid state relay through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time; we supply genuine OMRON components for industrial applications.
How to install the OMRON G3NE-210T-US-DC5 solid state relay?
Mount the OMRON G3NE-210T-US-DC5 on a panel using the provided holes, ensuring adequate airflow for heat dissipation. Connect the DC input (5 A) to the control terminals and the AC load (120–240V AC) to the output quick-connect terminals. Use a heat sink if output current exceeds 5 A. Follow OMRON's wiring diagram for polarity and load type.
