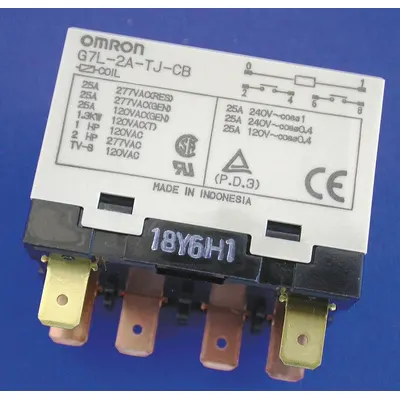

OMRON Enclosed Power Relay: Bracket Mounted, 30 A Current Rating, 24V AC, DPST-NO
The OMRON G7L Series Enclosed Power Relay is a bracket-mounted relay with a square base and E-bracket mounting style. It features a 25 A operating current, 24V AC coil voltage, DPST-NO contact configuration, and…
SKU 3G-OTH-35260
Also listed as: G7L2ATJCBAC24 · G7L 2A TJ CB AC24
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
The OMRON G7L Series Enclosed Power Relay is a bracket-mounted relay with a square base and E-bracket mounting style. It features a 25 A operating current, 24V AC coil voltage, DPST-NO contact configuration, and quick-connect electrical connection. The relay has 6 pins/terminals and is identified by manufacturer part number G7L-2A-TJ-CB-AC24.
Frequently Asked Questions
What is the OMRON G7L-2A-TJ-CB-AC24 enclosed power relay used for?
The OMRON G7L-2A-TJ-CB-AC24 is a bracket-mounted enclosed power relay used for switching high-current loads in industrial control panels, HVAC systems, and automation equipment. Its DPST-NO contacts handle up to 25 A, making it suitable for motor starters, lighting controls, and power distribution applications.
What are the specifications of the OMRON G7L-2A-TJ-CB-AC24 relay?
The OMRON G7L-2A-TJ-CB-AC24 is a DPST-NO relay with a 24V AC coil, 25 A operating current, and quick-connect terminals. It has a square base, E-bracket mounting style (bracket sold separately), and 6 pins. The series is G7L, and the manufacturer part number is G7L-2A-TJ-CB-AC24.
Where to buy the OMRON G7L-2A-TJ-CB-AC24 relay worldwide?
You can source the OMRON G7L-2A-TJ-CB-AC24 relay worldwide through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time; we supply genuine OMRON components for industrial applications.
How to install the OMRON G7L-2A-TJ-CB-AC24 relay?
Mount the OMRON G7L-2A-TJ-CB-AC24 using the E-bracket (sold separately) on a flat surface. Connect the 24V AC coil to the control circuit and the DPST-NO contacts to the load using quick-connect terminals. Ensure the operating current does not exceed 25 A. Follow standard relay wiring practices and verify polarity-free AC connections.
Used in
Common applications for OMRONOMRON Products
3G Electric supplies OMRON bracket-mounted relays. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
