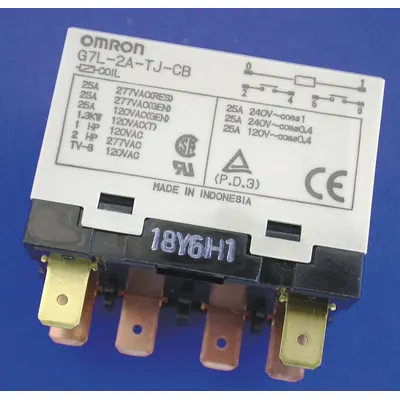

OMRON G7L-2A-TJ-CB-DC24 Enclosed Power Relay
The OMRON G7L Series Enclosed Power Relay is a bracket-mounted relay with a square base and E-bracket mounting style. It features a 25 A operating current, 24 VDC coil voltage, DPST-NO contact configuration, and…
SKU 3G-OTH-35438
Also listed as: G7L2ATJCBDC24 · G7L 2A TJ CB DC24
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
The OMRON G7L Series Enclosed Power Relay is a bracket-mounted relay with a square base and E-bracket mounting style. It features a 25 A operating current, 24 VDC coil voltage, DPST-NO contact configuration, and quick-connect electrical connections. The E-bracket is sold separately, and the relay has 6 pins/terminals.
Frequently Asked Questions
What is the OMRON G7L-2A-TJ-CB-DC24 enclosed power relay used for?
The OMRON G7L-2A-TJ-CB-DC24 is a bracket-mounted enclosed power relay used for switching high-current loads in industrial control panels, HVAC systems, and automation equipment. Its DPST-NO contacts and 30 A rating make it suitable for motor starters, lighting controls, and power distribution applications.
What are the specifications of the OMRON G7L-2A-TJ-CB-DC24 relay?
The OMRON G7L-2A-TJ-CB-DC24 is a DPST-NO relay with a 24 VDC coil, 30 A current rating, and 25 A operating current. It has a square base, E-bracket mounting (sold separately), quick-connect terminals, and 6 pins. It is part of the G7L Series from OMRON.
Where to buy the OMRON G7L-2A-TJ-CB-DC24 relay worldwide?
3G Electric supplies the OMRON G7L-2A-TJ-CB-DC24 relay to customers worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your location. Contact us for pricing and lead time on this OMRON relay.
How to install the OMRON G7L-2A-TJ-CB-DC24 relay?
Mount the OMRON G7L-2A-TJ-CB-DC24 relay using the separately sold E-bracket. Connect wires to the quick-connect terminals per the wiring diagram. Ensure the coil voltage is 24 VDC and the load does not exceed 30 A. Follow standard industrial relay installation practices for safety.
