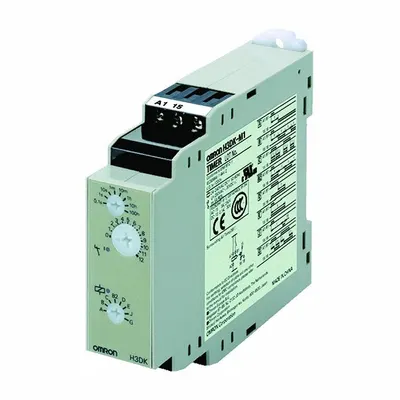

OMRON H3DK-S1 AC/DC24-240 DIN-Rail Mounted Timer Relay
The OMRON H3DK-S1 AC/DC24-240 is a DIN-Rail Mounted Timer Relay with an Interval delay function. It accepts a 24 to 240V AC/DC input and offers a contact rating of 5 A @ 250V (resistive load) for AC and 10.00 mA @ 5V…
SKU 3G-OTH-38469
Also listed as: H3DKS1ACDC24240 · H3DK S1 AC DC24 240 · H3DK-S1-AC-DC24-240
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
The OMRON H3DK-S1 AC/DC24-240 is a DIN-Rail Mounted Timer Relay with an Interval delay function. It accepts a 24 to 240V AC/DC input and offers a contact rating of 5 A @ 250V (resistive load) for AC and 10.00 mA @ 5V for DC. This 6-pin/terminal unit provides a timing range from 0.1 second to 1,200 hours.
Frequently Asked Questions
What is the OMRON H3DK-S1 timer relay used for?
The OMRON H3DK-S1 is a DIN-rail mounted timer relay with an Interval delay function, used in industrial control panels for precise timing of equipment start/stop cycles. It accepts 24 to 240V AC/DC input and switches loads up to 5 A at 250V AC, making it suitable for automation, HVAC, and process control applications.
What are the specifications of the OMRON H3DK-S1 AC/DC24-240?
The OMRON H3DK-S1 AC/DC24-240 is a 6-pin/terminal DIN-rail timer relay with an Interval delay function. Input voltage: 24 to 240V AC/DC. Contact rating: 5 A @ 250V AC (resistive load) and 10.00 mA @ 5V DC. Timing range: 0.1 second to 1,200 hours. Manufacturer part number: H3DK-S1 AC/DC24-240.
Where to buy the OMRON H3DK-S1 timer relay worldwide?
3G Electric supplies the OMRON H3DK-S1 AC/DC24-240 timer relay to customers worldwide. As a global industrial sourcing partner, we handle full logistics, customs clearance, and delivery to your location. Contact us for pricing and lead time on this DIN-rail mounted timer relay.
How to install the OMRON H3DK-S1 timer relay on a DIN rail?
To install the OMRON H3DK-S1, snap it onto a standard 35 mm DIN rail until it locks. Wire the 6 terminals per the wiring diagram: connect the 24 to 240V AC/DC supply to the appropriate input pins, and connect the load to the output contacts rated 5 A @ 250V AC. Ensure the Interval delay function is set via the front dial.
Used in
Common applications for OMRONOMRON Products
3G Electric supplies OMRON din-rail mounted relays. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
