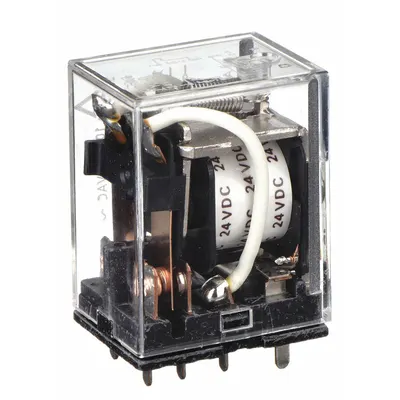

OMRON General Purpose Relay: PCB Mounted, 10 A Current Rating, 24V DC, DPDT
The OMRON General Purpose Relay is a PCB-mounted relay from the LY Series, featuring a square base and DPDT contact configuration with 8 pins/terminals. It operates on 24V DC and has a current rating of 10 A, with an…
SKU 3G-OTH-37651
Also listed as: LY20DC24 · LY2 0 DC24
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
The OMRON General Purpose Relay is a PCB-mounted relay from the LY Series, featuring a square base and DPDT contact configuration with 8 pins/terminals. It operates on 24V DC and has a current rating of 10 A, with an operating current of 7.5 A at 110V AC for inductive loads. The relay uses printed circuit board mounting and electrical connection, with manufacturer part number LY2-0-DC24.
Frequently Asked Questions
What is the OMRON LY2-0-DC24 relay used for?
The OMRON LY2-0-DC24 is a general-purpose PCB-mounted relay used for switching industrial loads in control panels, automation systems, and machinery. Its DPDT configuration and 10 A rating suit motor starters, conveyor controls, and HVAC equipment where reliable signal or power switching is required.
What are the specifications of the OMRON LY2-0-DC24 relay?
The OMRON LY2-0-DC24 is a PCB-mounted relay from the LY Series with a square base, DPDT contacts, and 8 pins. It operates on 24V DC, has a current rating of 10 A, and an operating current of 7.5 A at 110V AC for inductive loads. Mounting and connection are via printed circuit board.
Where to buy the OMRON LY2-0-DC24 relay worldwide?
You can source the OMRON LY2-0-DC24 relay through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time; we provide competitive sourcing for OMRON relays.
How to install the OMRON LY2-0-DC24 relay on a PCB?
Insert the relay's 8 pins into the matching PCB holes, ensuring correct orientation per the DPDT pinout. Solder the pins on the opposite side, avoiding excessive heat. For inductive loads, use a flyback diode across the coil to suppress voltage spikes. Follow OMRON's LY Series datasheet for precise layout guidelines.
