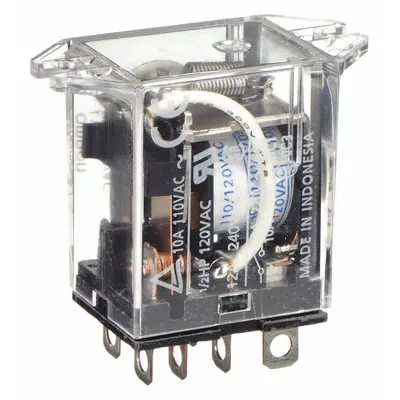

OMRON Flange Mount Relay: Surface (Top Flange) Mounted, 10 A Current Rating, 120V AC
The OMRON LY Series Flange Mount Relay is a surface-mounted relay with a top flange mounting style and a square base. It features a DPDT contact configuration, a 10 A current rating at 120V AC, and an operating…
SKU 3G-OTH-36963
Also listed as: LY2FAC110120 · LY2F AC110 120 · LY2F-AC110-120
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
The OMRON LY Series Flange Mount Relay is a surface-mounted relay with a top flange mounting style and a square base. It features a DPDT contact configuration, a 10 A current rating at 120V AC, and an operating current of 7.5 A at 110V AC for inductive loads. The relay uses a plug-in terminal electrical connection and is identified by manufacturer part number LY2F-AC110/120.
Frequently Asked Questions
What is the OMRON LY2F-AC110/120 flange mount relay used for?
The OMRON LY2F-AC110/120 is a DPDT surface-mounted relay used for switching industrial loads such as motors, solenoids, and lighting. Its 10 A rating at 120V AC and 7.5 A inductive load capacity make it suitable for automation panels, HVAC systems, and machine control circuits requiring reliable top-flange mounting.
What are the specifications of the OMRON LY2F-AC110/120 relay?
The OMRON LY Series relay has a DPDT contact configuration, 10 A current rating at 120V AC, and operating current of 7.5 A at 110V AC for inductive loads. It features a square base, top flange mounting, plug-in terminal connection, and manufacturer part number LY2F-AC110/120.
Where to buy the OMRON LY2F-AC110/120 relay worldwide?
3G Electric supplies the OMRON LY2F-AC110/120 relay worldwide. As a global industrial equipment distributor since 1990, we handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time on this OMRON LY Series relay.
How to install the OMRON LY2F-AC110/120 flange mount relay?
Mount the OMRON LY2F-AC110/120 relay securely using the top flange holes onto a flat surface. Connect wires to the plug-in terminals per the DPDT wiring diagram, ensuring voltage matches 120V AC. Avoid overtightening terminals and verify coil polarity if applicable. Follow standard relay installation practices for reliable operation.
Used in
Common applications for OMRONOMRON Products
3G Electric supplies OMRON surface-mounted relays. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
