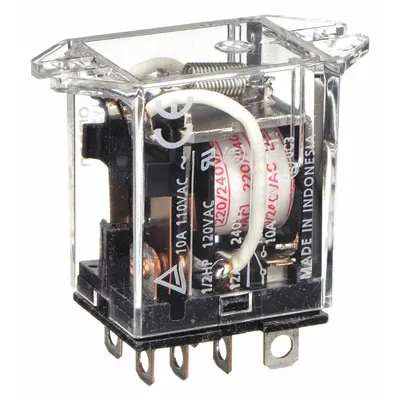

OMRON Flange Mount Relay: Surface (Top Flange) Mounted, 10 A Current Rating, 220/240V AC
The OMRON Flange Mount Relay is a surface-mounted relay from the LY Series, featuring a top flange mounting style and a square base. It is a DPDT relay with a plug-in terminal electrical connection, rated for 10 A at…
SKU 3G-OTH-37616
Also listed as: LY2FAC220240 · LY2F AC220 240 · LY2F-AC220-240
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
The OMRON Flange Mount Relay is a surface-mounted relay from the LY Series, featuring a top flange mounting style and a square base. It is a DPDT relay with a plug-in terminal electrical connection, rated for 10 A at 110V AC (resistive load) and 220/240V AC operation (MPN LY2F-AC220/240).
Frequently Asked Questions
What is the OMRON Flange Mount Relay used for?
The OMRON Flange Mount Relay is used for industrial switching and control applications, such as motor starters, conveyor systems, and automation panels. Its DPDT configuration and 10 A rating suit resistive loads in machinery and process control. 3G Electric supplies this relay for global industrial projects.
What are the specifications of the OMRON LY2F-AC220/240 relay?
The OMRON LY2F-AC220/240 is a DPDT relay from the LY Series with a square base and top flange mounting. It operates at 220/240V AC, has a current rating of 10 A at 110V AC (resistive load), and uses plug-in terminals. The manufacturer part number is LY2F-AC220/240.
Where to buy the OMRON LY2F-AC220/240 relay worldwide?
You can source the OMRON LY2F-AC220/240 relay worldwide through 3G Electric. As a global industrial equipment distributor, we handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time on this OMRON LY Series relay.
How to install the OMRON flange mount relay?
Install the OMRON flange mount relay by securing the top flange to a flat surface using appropriate screws. Connect wires to the plug-in terminals per the DPDT wiring diagram, ensuring the coil voltage matches 220/240V AC. Always de-energize circuits before installation and follow OMRON's guidelines for safe operation.
