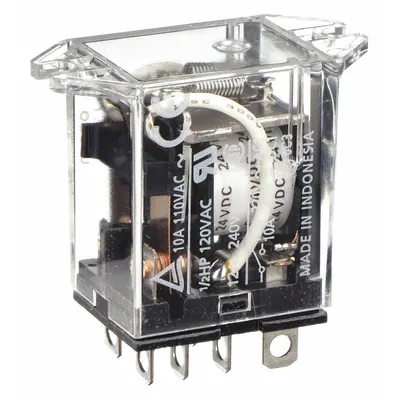

OMRON Flange Mount Relay: Surface (Top Flange) Mounted, 10 A Current Rating, 24V DC
The OMRON Flange Mount Relay is a surface-mounted relay from the LY Series, featuring a top flange mounting style and a square base. It operates with a DPDT contact configuration and a 10 A current rating at 24V DC…
SKU 3G-OTH-36691
Also listed as: LY2FDC24 · LY2F DC24
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
The OMRON Flange Mount Relay is a surface-mounted relay from the LY Series, featuring a top flange mounting style and a square base. It operates with a DPDT contact configuration and a 10 A current rating at 24V DC, with an operating current of 5 A at 24V DC for inductive loads. The relay uses a plug-in terminal electrical connection and is identified by manufacturer part number LY2F-DC24.
Frequently Asked Questions
What is the OMRON Flange Mount Relay used for?
The OMRON LY2F-DC24 relay is used for industrial switching applications requiring a DPDT contact configuration. It is commonly employed in control panels, automation systems, and machinery where reliable switching of loads up to 10 A at 24V DC is needed, including inductive loads.
What are the specifications of the OMRON LY2F-DC24 relay?
The OMRON LY2F-DC24 is a surface-mounted relay from the LY Series with a top flange mounting style and square base. It features DPDT contacts, a 10 A current rating at 24V DC, and an operating current of 5 A at 24V DC for inductive loads. Electrical connection is via plug-in terminal.
Where to buy OMRON LY2F-DC24 worldwide?
3G Electric supplies the OMRON LY2F-DC24 relay worldwide. As a global industrial equipment distributor, we handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time; we source and deliver this relay to any country.
How to install the OMRON flange mount relay?
Mount the OMRON LY2F-DC24 relay securely on a flat surface using the top flange holes. Ensure the plug-in terminal connection is aligned correctly and tightened. Verify the coil voltage is 24V DC and the load does not exceed 10 A. Follow standard industrial relay installation practices for safety.
