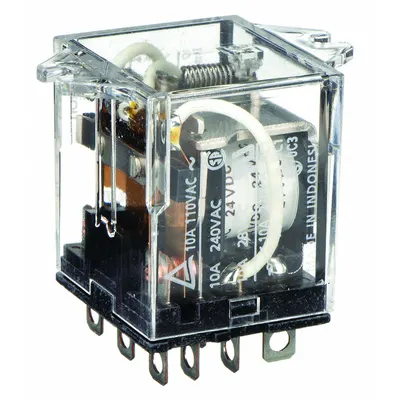

OMRON Flange Mount Relay: Surface (Top Flange) Mounted, 10 A Current Rating, 24V DC
The OMRON Flange Mount Relay is a surface (top flange) mounted relay from the LY Series, featuring a 3PDT configuration with a 24V DC coil. It has an octal base type, plug-in terminal electrical connection, and an…
SKU 3G-OTH-36714
Also listed as: LY3FDC24 · LY3F DC24
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
The OMRON Flange Mount Relay is a surface (top flange) mounted relay from the LY Series, featuring a 3PDT configuration with a 24V DC coil. It has an octal base type, plug-in terminal electrical connection, and an operating current of 7.5 A at 110V AC (inductive load). This relay is designed for industrial control applications requiring reliable switching in a compact, top-flange mounting format.
Frequently Asked Questions
What is the OMRON Flange Mount Relay used for?
The OMRON Flange Mount Relay is used for industrial control applications requiring reliable switching in a compact, top-flange mounting format. It is suitable for automation systems, panel building, and machinery control where a 3PDT configuration with a 24V DC coil is needed.
What are the specifications of the OMRON LY3F-DC24 relay?
The OMRON LY3F-DC24 relay is a 3PDT surface-mounted relay from the LY Series with a 24V DC coil. It features an octal base type, plug-in terminal connection, and an operating current of 7.5 A at 110V AC (inductive load). The mounting style is top flange.
Where to buy the OMRON LY3F-DC24 relay worldwide?
You can source the OMRON LY3F-DC24 relay worldwide through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time.
How to install the OMRON flange mount relay?
To install the OMRON flange mount relay, mount it securely on a flat surface using the top flange holes. Connect the plug-in terminals to the corresponding octal base socket. Ensure the coil voltage is 24V DC and verify the load current does not exceed 7.5 A at 110V AC inductive load.
