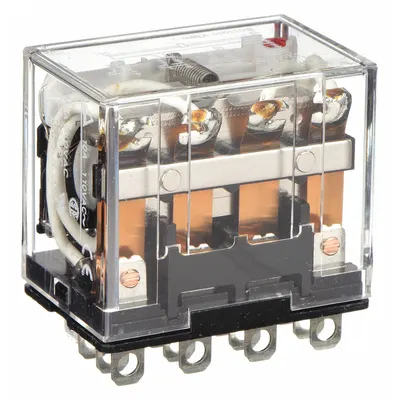

OMRON General Purpose Relay: Socket Mounted, 10 A Current Rating, 120V AC, 4PDT
The OMRON LY Series General Purpose Relay is a socket-mounted, plug-in relay with a square base and flat pins. This 4PDT model (MPN LY4N-AC120) features a 10 A current rating at 120V AC and has 14 pins/terminals. It…
SKU 3G-OTH-41106
Also listed as: LY4NAC120 · LY4N AC120
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
The OMRON LY Series General Purpose Relay is a socket-mounted, plug-in relay with a square base and flat pins. This 4PDT model (MPN LY4N-AC120) features a 10 A current rating at 120V AC and has 14 pins/terminals. It uses a plug-in electrical connection for straightforward installation.
Frequently Asked Questions
What is the OMRON LY4N-AC120 relay used for?
The OMRON LY4N-AC120 is a general-purpose relay used for switching loads in industrial control panels, automation systems, and HVAC equipment. Its 4PDT configuration and 10 A rating at 120V AC make it suitable for signal switching and moderate power control in machinery and process lines.
What are the specifications of the OMRON LY4N-AC120 relay?
The OMRON LY4N-AC120 is a socket-mounted, plug-in relay from the LY Series. It has a square base, flat pins, 4PDT contacts, a 10 A current rating at 120V AC, and 14 pins/terminals. The electrical connection is plug-in, and mounting style is plug-in.
Where to buy the OMRON LY4N-AC120 relay worldwide?
You can source the OMRON LY4N-AC120 relay through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time on this LY Series relay.
How to install the OMRON LY4N-AC120 relay?
To install the OMRON LY4N-AC120, first ensure the socket is correctly wired and de-energized. Align the relay's flat pins with the socket terminals and press firmly until it clicks into place. Verify the coil voltage (120V AC) matches your control circuit before applying power.
