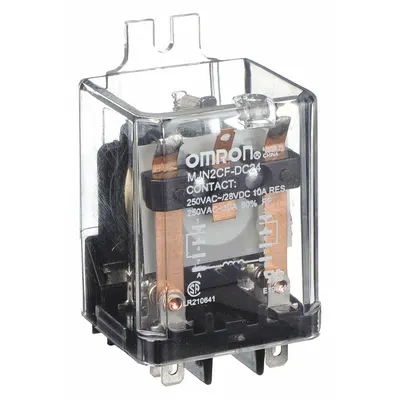

OMRON Flange Mount Relay: Surface (Side Flange) Mounted, 10 A Current Rating
The OMRON MJN Series Flange Mount Relay is a surface (side flange) mounted relay with an octal base and DPDT configuration. It features a 10 A operating current at 240V AC (inductive load) and a 24V DC coil, with…
SKU 3G-OTH-37700
Also listed as: MJN2CFDC24 · MJN2CF DC24
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
The OMRON MJN Series Flange Mount Relay is a surface (side flange) mounted relay with an octal base and DPDT configuration. It features a 10 A operating current at 240V AC (inductive load) and a 24V DC coil, with quick-connect terminals for electrical connection.
Frequently Asked Questions
What is the OMRON MJN2CF-DC24 flange mount relay used for?
The OMRON MJN2CF-DC24 is a DPDT surface-mounted relay used for switching inductive loads in industrial control panels, HVAC systems, and automation equipment. Its side flange mount and quick-connect terminals simplify installation in tight spaces, while the 10 A rating at 240V AC handles moderate motor and solenoid loads.
What are the specifications of the OMRON MJN2CF-DC24 relay?
The OMRON MJN2CF-DC24 is a DPDT relay with a 24V DC coil, 10 A current rating at 240V AC (inductive load), octal base, and side flange mounting. It uses quick-connect terminals for electrical connection and is part of the MJN Series. The manufacturer part number is MJN2CF-DC24.
Where to buy the OMRON MJN2CF-DC24 relay worldwide?
3G Electric supplies the OMRON MJN2CF-DC24 relay worldwide. As a global industrial equipment distributor since 1990, we handle full logistics, customs clearance, and delivery to your site. Contact us for availability and lead time; we source and deliver this OMRON MJN Series relay to any country.
How to install the OMRON MJN2CF-DC24 flange mount relay?
Mount the OMRON MJN2CF-DC24 relay securely to a flat surface using the side flange holes. Connect wiring to the quick-connect terminals per the DPDT schematic on the relay label. Ensure the coil voltage is 24V DC and the load does not exceed 10 A at 240V AC. Use an appropriate octal socket if required.
Used in
Common applications for OMRONOMRON Products
3G Electric supplies OMRON surface-mounted relays. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
