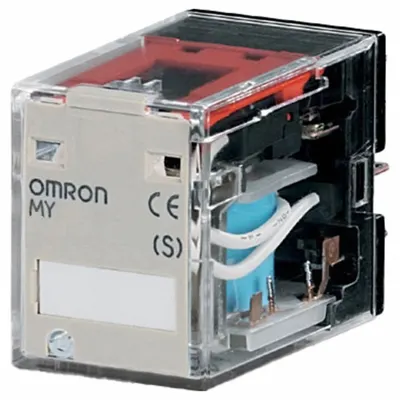

OMRON General Purpose Relay: PCB Mounted, 24V DC, DPDT
The OMRON MY Series General Purpose Relay (MPN MY2-02-DC24) is a PCB-mounted relay with a square base and soldering mounting style. It features a 24V DC coil, DPDT contact configuration, and 8 pins/terminals for PCB…
SKU 3G-OTH-36851
Also listed as: MY202DC24 · MY2 02 DC24
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
The OMRON MY Series General Purpose Relay (MPN MY2-02-DC24) is a PCB-mounted relay with a square base and soldering mounting style. It features a 24V DC coil, DPDT contact configuration, and 8 pins/terminals for PCB terminal electrical connection.
Frequently Asked Questions
What is the OMRON MY2-02-DC24 relay used for?
The OMRON MY2-02-DC24 is a general-purpose relay used for switching loads in industrial control panels, automation systems, and HVAC equipment. Its DPDT contact configuration and 24V DC coil make it suitable for signal switching and low-power motor control in manufacturing and building management.
What are the specifications of the OMRON MY2-02-DC24 relay?
The OMRON MY2-02-DC24 is a PCB-mounted relay from the MY Series with a square base, soldering mounting style, and PCB terminal electrical connection. It operates on a 24V DC coil, has DPDT contacts, and 8 pins/terminals. The manufacturer part number is MY2-02-DC24.
Where to buy the OMRON MY2-02-DC24 relay worldwide?
You can source the OMRON MY2-02-DC24 relay through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time; we supply genuine OMRON MY Series relays.
How to install the OMRON MY2-02-DC24 relay on a PCB?
To install the OMRON MY2-02-DC24 relay, align its 8 pins with the PCB holes and solder each terminal using a soldering iron. Ensure the coil voltage (24V DC) matches your circuit. Follow standard PCB soldering practices: clean the board, apply flux, and avoid overheating the relay body.
