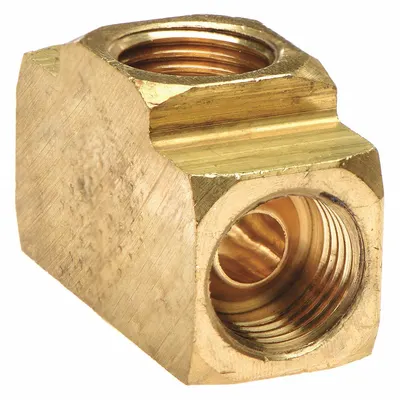

PARKER Flared Fitting Tee: 5/16 in OD x 5/16 in OD x 5/16 in OD Fitting Size, Flared
The Parker 244IFHD-5 is a standard brass inverted flare tube fitting tee, supplied in a 10-pack, with a 5/16 in OD x 5/16 in OD x 5/16 in OD fitting size. It meets SAE J512 standards and features a 1/2"-20 thread size A.
SKU 3G-OTH-655619
Also listed as: 244IFHD5 · 244IFHD 5
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
The Parker 244IFHD-5 is a standard brass inverted flare tube fitting tee, supplied in a 10-pack, with a 5/16 in OD x 5/16 in OD x 5/16 in OD fitting size. It meets SAE J512 standards and features a 1/2"-20 thread size A.
Frequently Asked Questions
What is the Parker 244IFHD-5 flared fitting tee used for?
The Parker 244IFHD-5 is a standard brass inverted flare tube fitting tee used to create a leak-tight branch connection in hydraulic or pneumatic tubing systems. It is commonly applied in industrial fluid power, instrumentation, and refrigeration lines where SAE J512 flare connections are specified.
What are the specifications of the Parker 244IFHD-5?
The Parker 244IFHD-5 is a brass inverted flare tee supplied in a 10-pack. It has a 5/16 in OD x 5/16 in OD x 5/16 in OD fitting size, meets SAE J512 standards, and features a 1/2"-20 thread size A. The manufacturer part number is 244IFHD-5.
Where to buy the Parker 244IFHD-5 worldwide?
3G Electric supplies and delivers the Parker 244IFHD-5 brass inverted flare tee worldwide. We handle full logistics, customs clearance, and delivery to your facility. Contact us for availability and lead time on this 10-pack of SAE J512-compliant fittings.
How to install a Parker inverted flare fitting tee?
To install a Parker inverted flare tee, cut the tubing square, deburr, and slide the flare nut onto the tube. Use a flaring tool to create a 45° flare on the tube end. Tighten the nut against the fitting cone with two wrenches—one on the body, one on the nut—until snug. Do not overtighten.
