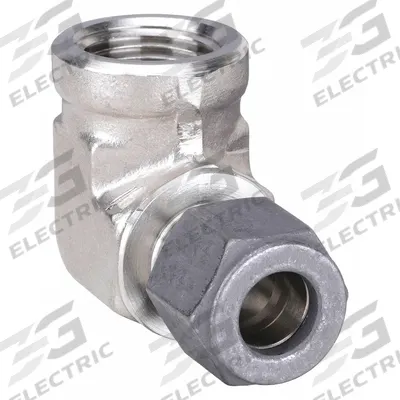

PARKER Compression Fitting Elbow: 3/8 in OD x 3/8 in Pipe Fitting Size - Single-Ferrule Stainless Steel Fittings
PARKERSingle-Ferrule Stainless Steel Fittings

PARKER Compression Fitting Elbow: 3/8 in OD x 3/8 in Pipe Fitting Size

The PARKER Compression Fitting Elbow (SKU 5XPC1) is a single-ferrule stainless steel fitting in a Compression x FNPT configuration, with a 3/8 in OD x 3/8 in Pipe Fitting Size. Part of the CPI™ series (MPN 6-6…

SKU 3G-OTH-474601

Brand
PARKER
Item
Compression Fitting Elbow: 3/8 in OD x 3/8 in Pipe Fitting Size
Category
Single-Ferrule Stainless Steel Fittings
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

PARKER
Manufacturer Part Number
6-6 DBZ-SS
Series
CPI(TM)
Type
Compression x FNPT
Compatible Fitting Brands
CPI™
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

PARKER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The PARKER Compression Fitting Elbow (SKU 5XPC1) is a single-ferrule stainless steel fitting in a Compression x FNPT configuration, with a 3/8 in OD x 3/8 in Pipe Fitting Size. Part of the CPI™ series (MPN 6-6 DBZ-SS), it is compatible with CPI™ fitting brands.

Frequently Asked Questions

What is a PARKER CPI compression fitting elbow used for?

This PARKER single-ferrule stainless steel elbow connects 3/8 in OD tubing to a 3/8 in FNPT port in instrumentation and process systems. It provides a leak-tight seal in high-pressure gas or liquid lines common in chemical, petrochemical, and power generation plants.

What are the specifications of the PARKER 6-6 DBZ-SS compression fitting?

The PARKER 6-6 DBZ-SS is a CPI series compression x FNPT elbow. It has a 3/8 in OD tube size and a 3/8 in pipe fitting size. The single-ferrule stainless steel design is compatible with CPI fitting brands and rated for high-pressure fluid handling.

Where to buy PARKER compression fittings worldwide?

3G Electric supplies and delivers genuine PARKER compression fittings worldwide. We handle full logistics and customs clearance for global orders. Contact us for availability and lead time on the CPI series 6-6 DBZ-SS elbow or other PARKER tube fitting configurations.

How to install a single-ferrule compression fitting?

Insert the tube fully into the fitting until it bottoms out. Tighten the nut finger-tight, then use a wrench to turn the nut 1-1/4 turns past finger-tight for CPI series fittings. Always follow PARKER's published torque and re-make procedures to ensure a leak-free seal.
