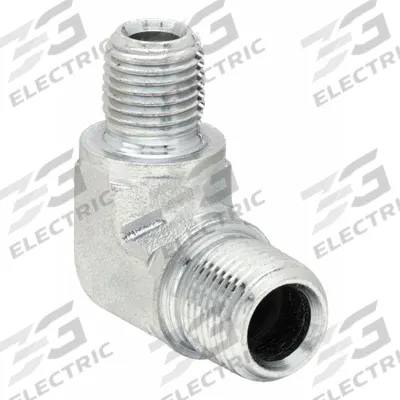

PARKER Metal Pipe Elbow: 90° Elbow, Steel, 1/4 in x 1/8 in - Hydraulic Threaded Extreme-Pressure Pipe Fittings
PARKERHydraulic Threaded Extreme-Pressure Pipe Fittings

PARKER Metal Pipe Elbow: 90° Elbow, Steel, 1/4 in x 1/8 in

The PARKER Metal Pipe Elbow is a 90° hydraulic threaded extreme-pressure pipe fitting made of steel, with a 1/4 in x 1/8 in size and male NPT threaded connections on both ends. It is rated for a maximum operating…

SKU 3G-OTH-467556

Brand
PARKER
Item
Metal Pipe Elbow: 90° Elbow, Steel, 1/4 in x 1/8 in
Category
Hydraulic Threaded Extreme-Pressure Pipe Fittings
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

PARKER
Manufacturer Part Number
1/4 X 1/8 CR-S
Type
Steel, 1/4 in x 1/8 in, Male NPT Threaded x Male NPT Threaded
Fitting Pipe Size
1/4 in x 1/8 in
Maximum Operating Pressure
6,000 psi
(DO NOT SEND) Manufacturer Location
Globally Sourced
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

PARKER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The PARKER Metal Pipe Elbow is a 90° hydraulic threaded extreme-pressure pipe fitting made of steel, with a 1/4 in x 1/8 in size and male NPT threaded connections on both ends. It is rated for a maximum operating pressure of 6,000 psi (MPN 1/4 X 1/8 CR-S).

Frequently Asked Questions

What is the PARKER 1/4 X 1/8 CR-S elbow used for?

This PARKER 90° steel elbow connects hydraulic lines in extreme-pressure systems up to 6,000 psi. It joins 1/4 in and 1/8 in male NPT threaded pipes, commonly used in industrial hydraulics, machine tools, and fluid power applications.

What are the specifications of the PARKER 1/4 X 1/8 CR-S elbow?

The PARKER metal pipe elbow is a 90° fitting with 1/4 in x 1/8 in male NPT threaded ends, made of steel. It has a maximum operating pressure of 6,000 psi. The manufacturer part number is 1/4 X 1/8 CR-S.

Where to buy the PARKER 1/4 X 1/8 CR-S elbow worldwide?

3G Electric supplies the PARKER 1/4 X 1/8 CR-S elbow to customers worldwide. We handle full logistics, customs clearance, and delivery for this hydraulic threaded extreme-pressure pipe fitting, ensuring it reaches your facility reliably.

How to install a PARKER 1/4 X 1/8 CR-S elbow?

Apply thread sealant to the male NPT threads, then hand-tighten the PARKER elbow into both ports. Use a wrench to tighten an additional 1-2 turns past hand-tight. Do not overtighten, as steel NPT fittings can crack the mating port.
