PARKER 90-Degree Swivel Fitting, S2102-6-6

A Parker 90-degree swivel fitting connects hydraulic hoses or tubes at a right angle while allowing rotation to reduce stress on the assembly. It is used in industrial fluid power systems, mobile equipment, and machinery where space constraints or movement require a compact, leak-resistant connection rated up to 3,000 psi.

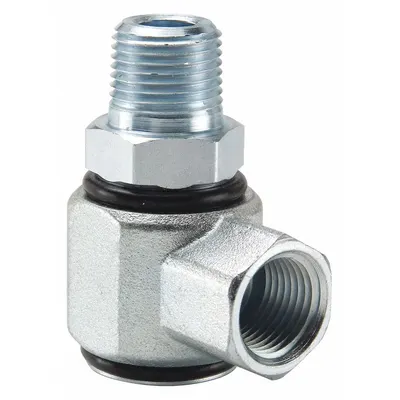

The Parker S2102-6-6 is a zinc-plated steel 90-degree swivel fitting with a 3/8 in female NPTF inlet and a 3/8 in male NPTF outlet. It has a maximum operating pressure of 3,000 psi and uses a nitrile seal. The fitting material is steel with a zinc-plated finish.

3G Electric supplies Parker hydraulic swivel fittings like the S2102-6-6 to customers worldwide. We handle full logistics, customs clearance, and delivery to your site. As a global industrial solutions provider, we source genuine Parker components and support procurement across 14 industrial departments.

To install a Parker 90-degree swivel fitting, ensure threads are clean and apply compatible thread sealant to the male NPTF outlet. Hand-tighten the female inlet onto the mating port, then use a wrench on the hex flats to torque to specification—avoid overtightening the swivel nut. Always verify pressure rating and seal compatibility with your fluid.
