Interpump PUMP E2B2015 DX NO.C/J

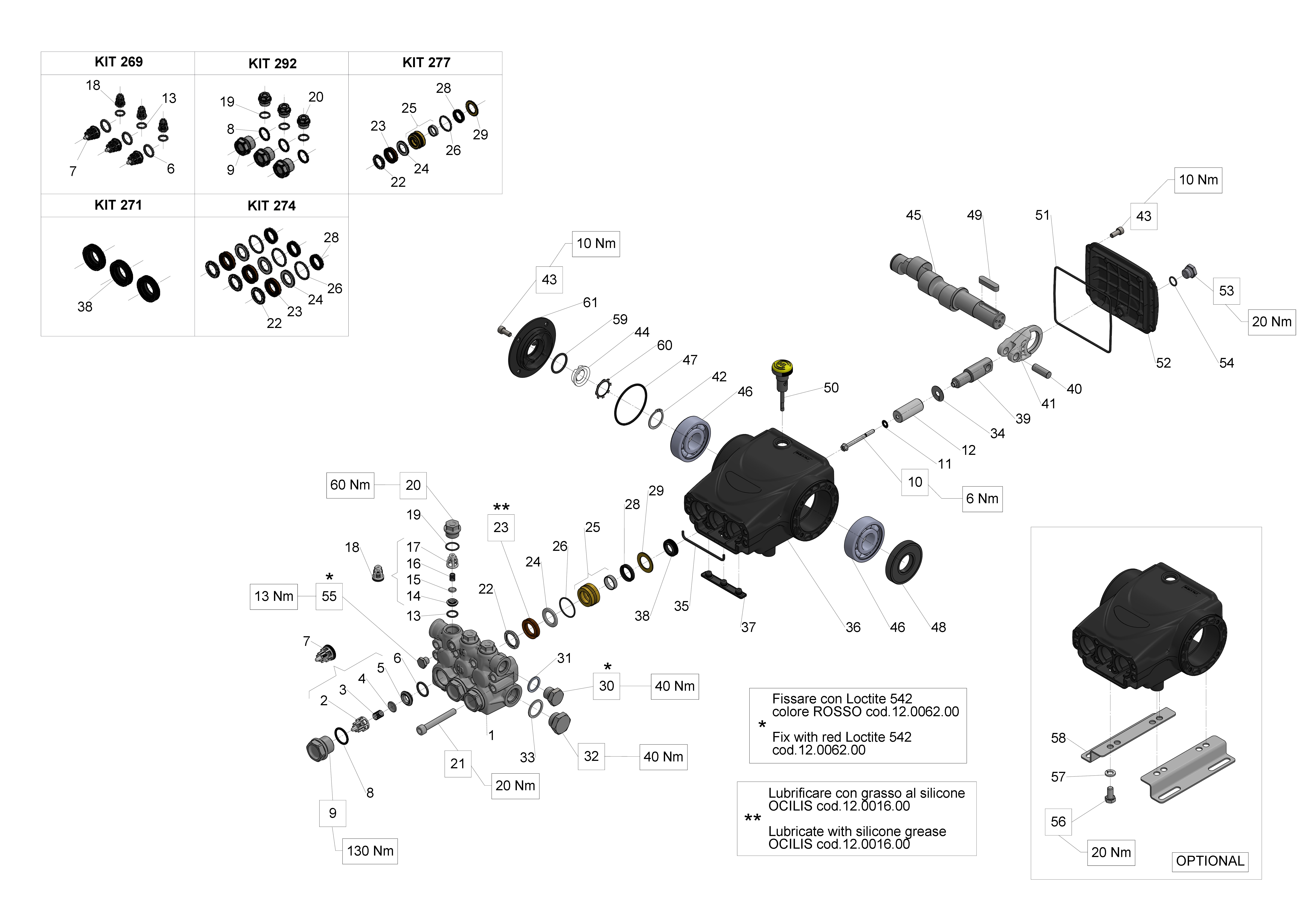

E2B2015 TECHNICAL INFORMATION Flow (L/min) 15 Flow (US Gpm) 3,96 Rotation regime (rpm) 1450 Pressure (MPa) 20 Pressure (bar) 200 Pressure (psi) 2900 Power (hp) 7,4 Power (kW) 5,44 Overall dimensions L x l x h (mm) 241,5x215x129,5 Weight (kg) 7 E2B2015 3/21/2026 Page 1 - 8 Copyright INTERPUMP GROUP S.P.A E2B2015 Documents Male shaft (key) Pump head with VH integrated valve R E2B2015 3/21/2026 Page 2 - 8 Copyright INTERPUMP GROUP S.P.A Illustration Male shaft (key) E2B2015 3/21/2026 Page 3 - 8 Copyright INTERPUMP GROUP S.P.A Illustration Male shaft (key) Pos. Code Description Qty Notes KIT292 34029201 KIT 292 VALVE PLUGS (NICK.)59 1 S. KIT277 34027701 KIT 277 CPL.SEAL D.18 58 SERIE 1 KIT274 34027401 KIT 274 PACKING D.18 58 1 SERIES KIT271 34027101 KIT 271 OIL SEAL D.15 1 58/59 SERIES KIT269 34026901 KIT 269 INTAKE/DELIVERY 1 VALVES 61 58150122 COPERCHIO LATERALE 1 60 90067100 CIRCLIP ZJ30 1 59 90385900 O-RING 25,07X2,62 (3100) 1 58 50200074 PUMP FOOT 2 57 96701600 WASHER 8,4 4 56 99303700 SCREW M 8x16-5739 4 55 98196700 PLUG G 1/8 X 8 NICKEL 1 54 90358500 O-RING 10,82X1,78 (2043) 1 53 98204250 PLUG G1/4"x12 1 52 58160022 REAR CRANKCASE COVER 1 51 90392550 O-RING D.113.97X2.62 1 50 98210500 OIL DIPSTICK G3/8x51 D.7 1 49 91489200 KEY 8(h9)X7X35 UNI 6604/A 1 48 90164100 OIL SEAL D.25X62X10 1 47 90389800 O-RING 56,82X2,62 (3225) 1 46 91833100 BALL BEARING 6305 SKF 2 45 58020165 CRANKSHAFT C.14 D.24 1 44 53210851 OIL LEVEL GAUGE 1 43 99183700 SCREW M 6x14 UNI 5931 8 42 90063500 CIRCLIP D. 25 UNI 7435 1 41 58030022 CONNECTING ROD 3 40 97734000 CONNECTING-ROD PIN 3 D.10X29,5 39 58050066 PISTON GUIDE 3 38 90156550 OIL SEAL D.15X24X5/7 3 37 58210451 PROTECTION 1 36 58010022 PUMP CRANKCASE 1 35 58210582 SPONGE GASKET D.3X94 1 34 96699000 WASHER D.7.5X23X0.5 3 33 96751400 WASHER 21,5X27X1,5 1 32 98217900 PLUG G 1/2X10 NICKEL 1 31 96738000 WASHER 17,5X23X1,5 1 E2B2015 3/21/2026 Page 4 - 8 Copyright INTERPUMP GROUP S.P.A Illustration Male shaft (key) Pos. Code Description Qty Notes 30 98209900 PLUG G. 3/8X13 NICKEL 1 29 58210870 RING FOR SEAL D.18 3 28 90265000 SEAL D. 18X24X5 L.P. 3 26 90360600 O-RING 26,70X1,78 (2106) 3 25 58605801 PACKING RETAINER+SLEEVE 3 D.18 24 90511150 ANTI-EXTR. RING D.18X28X2 3 23 90265350 PACKING D.18X28X6/3.7 HP 3 22 63101151 HEAD RING D.18 H.P. 3 21 99317500 SCREW M 8x60 UNI 5931 8 20 98213750 PLUG M18X1,5X10 D.23 (NICK.) 3 19 90359300 O-RING 15,60X1,78 (2062) 3 18 36719301 OUTLET VALVE 3 17 36211151 VALVE CAGE 3 16 94733300 SPRING D.6.2x10.5 S.S. 3 15 36211276 SPHERICAL VALVE 3 14 36211366 VALVE SEAT 3 13 90367400 O-RING D. 12X2 (120-20) 3 12 58040209 PISTON D.18X42 3 11 96690500 WASHER D.5X11.5x0.4 3 INOX+FKM58/59/63HT 10 99169000 SCREW M05X55 SPEC. A2-70 3 9 98222500 VALVE CAP M24X1,5X17 NICKEL 3 8 90384700 O-RING 20,29X2,62(3081) 3 7 36711501 INTAKE/DELIVERY VALVE 3 6 90384100 O-RING 17,12X2,62 (3068) 3 5 36200366 VALVE SEAT 3 4 36200176 VALVE PLATE 3 3 94737600 SPRING D. 9,4X14,8 3 2 36202551 VALVE CAGE 3 1 58120741 MANIFOLD FOR PISTON D. 18 1 NICKEL PL. E2B2015 3/21/2026 Page 5 - 8 Copyright INTERPUMP GROUP S.P.A Illustration Pump head with VH integrated valve R E2B2015 3/21/2026 Page 6 - 8 Copyright INTERPUMP GROUP S.P.A Illustration Pump head with VH integrated valve R Pos. Code Description Qty Notes KIT280 34028001 KIT 280 FIXED CHEM.INJECTOR 1 58-59 KIT279 34027901 KIT 279 ADJUSTABLE CHEM. INJ. 1 58-59 KIT278 34027801 KIT 278 BUILT-IN VALVE 58-59 1 47 36605401 H REG.VALVE ASSY. 1 46 92982800 WING NUT G3/4 1 45 36256951 INLET HOSE BARB FITTING (PL.) 1 44 90382800 O-RING 12,37X2,62 (3050) 1 43 92892500 FILTER D. 12X35 1 42 36318251 INLET NIPPLE G 3/4 1 41 90384100 O-RING 17,12X2,62 (3068) 1 40 36349270 CHEM. HOSE BARB FITTING 1 39 36334270 SHUTTER WITH HOSE FITTING 1 38 36348451 DETERGENT KNOB 1 37 94733400 SPRING D.6.4X12.5 1 36 97661500 ELASTIC PIN D. 2X12 1 35 36348270 CHEM. HOSE BARB FITTING 1 34 90357300 O-RING D. 5,28X1,78 (2021) 2 33 97478200 BALL 7/32(5,556) STAINLESS 1 32 94821700 TAPER SPRING D.4,3X7,3X11 1 31 10079866 INJECTOR NOZZLE D.2.20 1 ORANGE 31 10079566 NOZZLE D. 2.00 1 30 90358500 O-RING 10,82X1,78 (2043) 1 29 98204200 PLUG G1/4X9 NICKEL 1 28 36348870 NIPPLE D.3 M22X1.5 M 1 28 36348970 NIPPLE D.3 G3/8F 1 28 36347970 NIPPLE D.3 G3/8M 1 28 36348770 NIPPLE D.3 3/8NPT M 1 28 36349070 NIPPLE D.3 3/8NPT F 1 27 90383900 O-RING 15,88X2,62 (121) 1 26 36310451 VALVE GUIDE 1 25 94735500 SPRING D. 8,5X12 1 24 97483800 BALL 13/32 (10,319) 1 23 90382300 O-RING 9,92X2,62 (112) 1 21 58121341 MANIFOLD D.18*VALVE 1 R*NICKEL PL. 20 36348366 REG. VALVE SEAT 1 E2B2015 3/21/2026 Page 7 - 8 Copyright INTERPUMP GROUP S.P.A Illustration Pump head with VH integrated valve R Pos. Code Description Qty Notes 19 90357800 O-RING 7,66X1,78 (2031) 1 18 90503800 ANTI-EXTR.RING D.9X12X1.5 1 17 90358100 O-RING 8,73X1,78 - (108) 1 16 90358700 O-RING D. 11,11X1,78 (114) 1 14 36347770 MAX.PRESSURE NUT 1 13 99126700 SCREW M4X5 UNI5929 S.S. 1 6 94739500 SPRING D.11,3x34,5 1 5 36348651 SLIDE WASHER 2 4 36348170 PRESSURE ADJUST SCREW 1 3 90384500 O-RING 18,72X2,6 (3075) 1 2 10084666 REGULATION KNOB YOKE 1 1 36350651 REGULATION KNOB - RED S. 1 53-58-59 E2B2015 3/21/2026 Page 8 - 8 Copyright INTERPUMP GROUP S.P.A
