Interpump PUMP SWS71170 DX

The Interpump PUMP SWS71170 DX is an industrial pump delivering 170 L/min at 100 bar, powered by a 32.5 kW motor operating at 900 rpm. It suits high-pressure hydraulic and fluid-handling applications requiring…

SKU 3G-ITP-00964

Also listed as: SWS71170000 · SWS71170 000

Brand

Interpump

Item

PUMP SWS71170 DX

Local availability & support — Singapore

Local office: 20 Woodlands Link #09-05, Singapore 738733
Phone: +65 8878 8355
Delivery: Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
Payment: Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
Ships to: Singapore

Technical Specifications

Interpump

Flow Rate

170 L/min

Pressure

100 bar

Power

32.5 kW

Speed

900 RPM

Weight

68 kg

Dimensions

526 mm

Power

44.2 HP

Flow (US)

44.9 GPM

Pressure

10 MPa

Pressure

1450 PSI

Datasheet Content

SWS71170




TECHNICAL INFORMATION
Flow (L/min)                        170
Flow (US Gpm)                       44,9
Rotation regime (rpm)               900
Pressure (MPa)                      10
Pressure (bar)                      100
Pressure (psi)                      1450
Power (hp)                          44,2
Power (kW)                          32,5
Overall dimensions L x l x h (mm)   526x367x252,5
Weight (kg)                         68




SWS71170                                            3/21/2026   Page 1 - 6
Copyright INTERPUMP GROUP S.P.A
SWS71170

     Documents

Male shaft (key) - GAS




SWS71170                          3/21/2026   Page 2 - 6
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS




SWS71170                              3/21/2026   Page 3 - 6
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS

Pos.      Code          Description                  Qty Notes
KIT2443   34244301                                   1
KIT2442   34244201                                   1
KIT2155   34215501                                   1
KIT2154   34215401                                   1
KIT2135   34213501                                   1
KIT2043   34204301                                   1
KIT2042   34204201                                   1
70        98243600                                   1
69        95822000                                   3
68        71224922                                   1
67        71213856                                   3
66        71213756                                   3
65        71050866                                   3
64        90911000                                   3
63        90924000                                   3
63        90922200      UPPER HALF CONROD BUSHING 3
                        +0.5 (BIG END) S.70

63        90922100      UPPER HALF CONROD BUSHING 3
                        +0.25 (BIG END) S.70

62        90924300                                   3
62        90922500      LOWER HALF CONROD BUSHING 3
                        +0.50 (BIG END) S.70

62        90922400      LOWER HALF CONROD BUSHING 3
                        +0.25 (BIG END) S.70

61        71225951      PLUG CAP                     3
60        71225851                                   6
58        71223074      STAFFA DI SOLLEVAMENTO       1
57        99426600      VITE TE M12X25-UNI5739 ZINC. 1


56        71030701                                   3
55        90352800      O-RING D. 29.00x1.50 NBR 70SH 3

54        99199400                                   6
53        94754000      SPRING D.24.7X27             3
52        36715501                                   3
51        36715601                                   3
50        90524000                                   6
49        36207256                                   6
48        36209602                                   6
47        36208651      INNER VALVE GUIDE            6
46        94755000                                   3




SWS71170                                                         3/21/2026   Page 4 - 6
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS

Pos.   Code             Description                 Qty Notes

45     36204505         VALVE CAGE SS (71 SERIES)   6


44     90388900                                     12
43     90525000                                     6
42     71223766                                     6
41     71223636                                     2
40     99429500         SCREW M12X35 UNI5931 12.31 14
                        DACR.
39     99450050                                     8
38     71127536                                     1
37     90276800                                     3
36     71212366                                     3
35     90246000                                     3
34     90389100                                     3
33     71211866                                     3
32     90282900                                     3
31     71211966                                     3
30     90079700                                     3
29     71223856                                     3
28     90367100                                     3
27     71040509                                     3
26     96714000                                     3
25     90167800                                     3
24     97743000                                     3
23     71050715                                     3
22     90060600                                     1
21     71606601                                     3
20     90170000                                     1
19     71150022                                     1
18     91500000                                     1
17     71020035                                     1
16     99313800                                     6
15     98206000                                     4
14     90400000                                     1
13     71160022                                     1
12     98212000                                     1
11     98218100                                     4
10     90384100         O-RING 17,12X2,62 (3068)    4
9      99186800                                     20
8      71150122                                     1
7      90387700         O-RING 39,34X2,62 (3156)    1
6      70211801         OIL SIGHT GLASS             1




SWS71170                                                        3/21/2026   Page 5 - 6
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS

Pos.   Code             Description           Qty Notes

5      90075600         CIRCLIP D.45 (ZJ45)   1
4      70220381         SHIM 0.25 MM.         1
4      70220081         SHIM 0.1 MM.          1
3      90391800                               2
2      91859000                               2
1      71010022                               1




SWS71170                                                  3/21/2026   Page 6 - 6
Copyright INTERPUMP GROUP S.P.A

Technical Documents

(1)

Technical Data Sheet

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

Interpump Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

What is the Interpump PUMP SWS71170 DX used for?

The Interpump PUMP SWS71170 DX is an industrial pump designed for high-pressure hydraulic and fluid-handling applications. It delivers 170 L/min at 100 bar, making it suitable for demanding tasks in manufacturing, marine, and process industries where reliable, compact performance is required.

What are the specifications of the Interpump PUMP SWS71170 DX?

The Interpump PUMP SWS71170 DX delivers 170 L/min at 100 bar (10 MPa, 1450 psi) with a rotation regime of 900 rpm. It is powered by a 32.5 kW (44.2 hp) motor, weighs 68 kg, and has overall dimensions of 526 x 367 x 252.5 mm. The pump features a male shaft (key) connection.

Where to buy the Interpump PUMP SWS71170 DX in Singapore?

3G Electric sources and delivers the Interpump PUMP SWS71170 DX to Singapore. We handle logistics, customs clearance, and local delivery, providing technical support for industrial pump applications. Contact us for pricing and lead time on this high-pressure pump.

How to maintain the Interpump PUMP SWS71170 DX?

Regular maintenance of the Interpump PUMP SWS71170 DX includes checking oil level through the sight glass, inspecting seals and O-rings for wear, and ensuring the shaft key and connecting rod bushings are in good condition. Follow Interpump's recommended service intervals and use genuine spare parts for reliability.

Used in

Common applications for Interpump

Shipyard hull cleaning and surface prep — HT100 and W951 paired with dual-lance guns for dockyard service

Petrochemical heat-exchanger descaling — WS-series stainless pumps for neutral-pH cleaning chemistry

Outdoor HVAC condenser mist cooling — ZP180 pumps on rooftop chiller decks

Textile fibre-finishing — W170 and W270 for mist-jet application across drying lines

Municipal water treatment — W951 motor pumps for high-pressure disinfection chemical injection

Spare Parts & Repair Kits

Official SWS71170 parts list — 14 parts, 14 available in catalog

Official Parts List

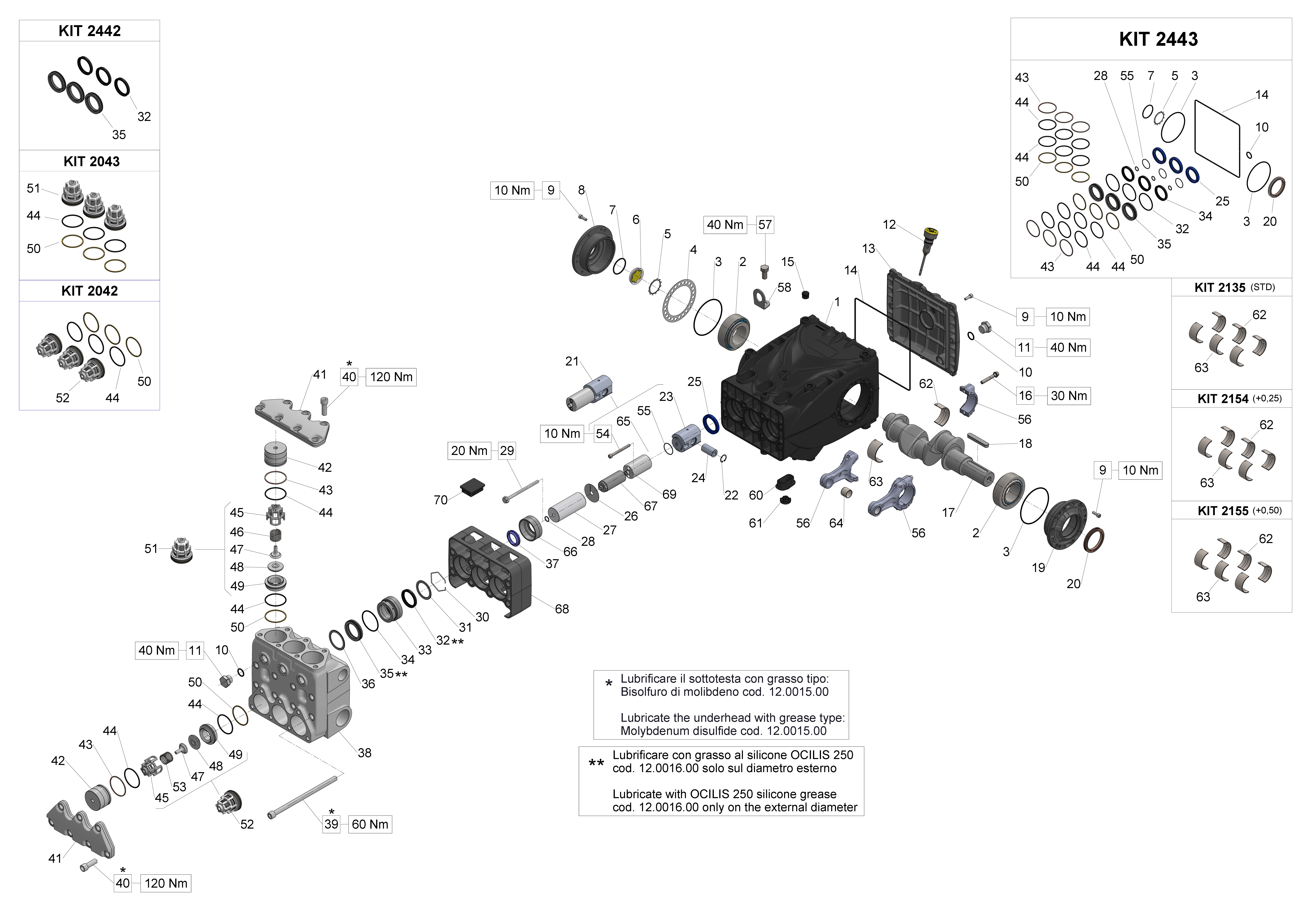

SWS71170 — Male shaft (key) - GAS exploded diagram

Individual Components

PosCodeDescriptionQty

70220081×1Available

70220381×1Available

90075600×1Available

OIL SIGHT GLASS SWS71170

70211801×1Available

View

O-RING 39,34X2,62 (3156)

90387700×1Available

View

O-RING 17,12X2,62 (3068)

90384100×4Available

View

SCREW M12X35 UNI5931 12.31 DACR.

99429500×14Available

View

VALVE CAGE SS (71 SERIES)

36204505×6Available

36208651×6Available

94754000×3Available

STAFFA DI SOLLEVAMENTO

71223074×1Available

View

PLUG CAP

71225951×3Available

View

UPPER HALF CONROD BUSHING +0.25 (BIG END) S.70

90922100×3Available

View

UPPER HALF CONROD BUSHING +0.5 (BIG END) S.70

90922200×3Available

View

Need multiple parts? Request a bundled quote

14 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote

✓ Genuine manufacturer parts✓ Expert technical support✓ Worldwide shipping

Official SWS71170 parts list — Industrial Pumps (Stainless Steel Versions Series 53 SW1)
