Pratissoli PUMP SN7193 R

Pratissoli 3G-ITP-00817 industrial pumps. Italian-engineered by Pratissoli (Interpump Group).

SKU 3G-ITP-00817

Also listed as: SN7193000 · SN7193 000

Brand

Pratissoli

Item

PUMP SN7193 R

Local availability & support — Singapore

Local office: 20 Woodlands Link #09-05, Singapore 738733
Phone: +65 8878 8355
Delivery: Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
Payment: Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
Ships to: Singapore

Technical Specifications

Pratissoli

Flow Rate

93 L/min

Pressure

210 bar

Power

37.5 kW

Speed

1000 RPM

Weight

68 kg

Dimensions

526 mm

Power

51 HP

Flow (US)

24.5 GPM

Pressure

21 MPa

Pressure

3045 PSI

Datasheet Content

SN7193




TECHNICAL INFORMATION
Flow (L/min)                        93
Flow (US Gpm)                       24,5
Rotation regime (rpm)               1000
Pressure (MPa)                      21
Pressure (bar)                      210
Pressure (psi)                      3045
Power (hp)                          51
Power (kW)                          37,5
Overall dimensions L x l x h (mm)   526x367x252,5
Weight (kg)                         68




SN7193                                              3/21/2026   Page 1 - 22
Copyright INTERPUMP GROUP S.P.A
SN7193

     Documents

Male shaft (key) - GAS

Male shaft (key) - NPT

Gearbox with male shaft (key) - GAS - 1800 rpm - R=1,5

Gearbox with male shaft (key) - GAS - 2200 rpm - R=1,83

Male shaft (key) - GAS - ATEX




SN7193                                                    3/21/2026   Page 2 - 22
Copyright INTERPUMP GROUP S.P.A

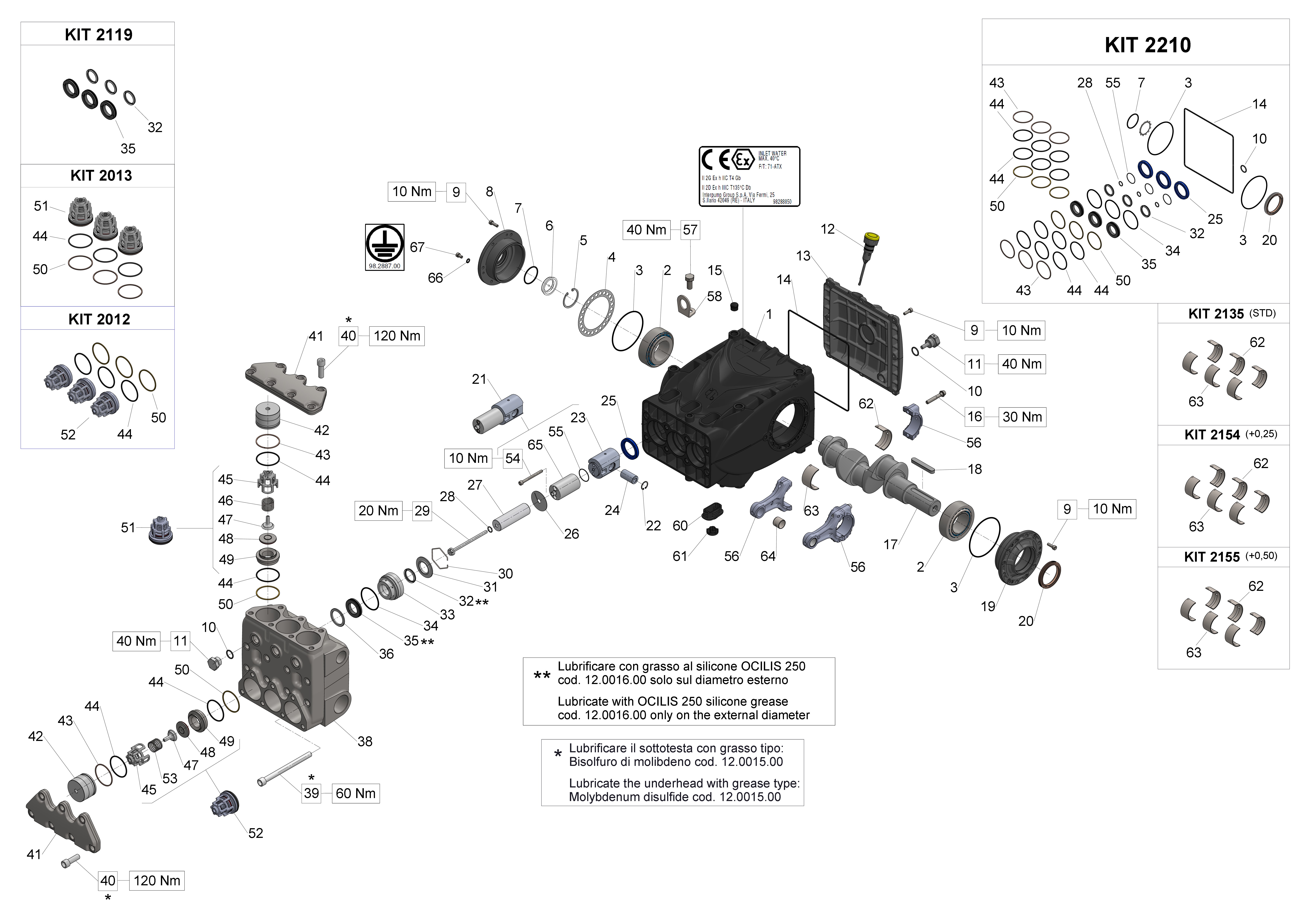

Illustration Male shaft (key) - GAS




SN7193                                3/21/2026   Page 3 - 22
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS

Pos.      Code          Description                  Qty Notes
KIT2210   34221001                                   1
KIT2155   34215501                                   1
KIT2154   34215401                                   1
KIT2135   34213501                                   1
KIT2119   34211901                                   1
KIT2013   34201301                                   1
KIT2012   34201201                                   1
65        71050866                                   3
64        90911000                                   3
63        90924000                                   3
63        90922200      UPPER HALF CONROD BUSHING 3
                        +0.5 (BIG END) S.70

63        90922100      UPPER HALF CONROD BUSHING 3
                        +0.25 (BIG END) S.70

62        90924300                                   3
62        90922500      LOWER HALF CONROD BUSHING 3
                        +0.50 (BIG END) S.70

62        90922400      LOWER HALF CONROD BUSHING 3
                        +0.25 (BIG END) S.70

61        71225951      PLUG CAP                     3
60        71225851                                   6
58        71223074      STAFFA DI SOLLEVAMENTO       1
57        99426600      VITE TE M12X25-UNI5739 ZINC. 1


56        71030701                                   3
55        90352800      O-RING D. 29.00x1.50 NBR 70SH 3


54        99199400                                   6
53        94754000      SPRING D.24.7X27             3
52        36713601                                   3
51        36713701                                   3
50        90524000                                   6
49        36204156                                   6
48        36208502      SPHERICAL VALVE COMPLETE     6
47        36208651      INNER VALVE GUIDE            6
46        94755000                                   3
45        36204505      VALVE CAGE SS (71 SERIES)    6


44        90388900                                   12
43        90525000                                   6
42        71223766                                   6




SN7193                                                           3/21/2026   Page 4 - 22
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS

Pos.   Code             Description                Qty Notes

41     71210136                                    2
40     99429500         SCREW M12X35 UNI5931 12.31 14
                        DACR.
39     99448200                                    8
38     71121036                                    1
36     70222266                                    3
35     90238000                                    3
34     90389100                                    3
33     71227366                                    3
32     90238100                                    3
31     71227266                                    3
30     90079700                                    3
29     71223856                                    3
28     90367100                                    3
27     71040609                                    3
26     96714000                                    3
25     90167800                                    3
24     97743000                                    3
23     71050715                                    3
22     90060600                                    1
21     71606601                                    3
20     90170000                                    1
19     71150022                                    1
18     91500000                                    1
17     71020035                                    1
16     99313800                                    6
15     98206000                                    4
14     90400000                                    1
13     71160022                                    1
12     98212000                                    1
11     98218700                                    1
11     98218100                                    3
10     90384100         O-RING 17,12X2,62 (3068)   6
9      99186700         SCREW M 6x18 UNI 5931      20
8      71150122                                    1
7      90387700         O-RING 39,34X2,62 (3156)   1
6      70211801         OIL SIGHT GLASS            1
5      90075600         CIRCLIP D.45 (ZJ45)        1
4      70220381         SHIM 0.25 MM.              1
4      70220081         SHIM 0.1 MM.               1
3      90391800                                    2




SN7193                                                         3/21/2026   Page 5 - 22
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS

Pos.   Code             Description   Qty Notes

2      91859000                       2
1      71010022                       1




SN7193                                            3/21/2026   Page 6 - 22
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - NPT




SN7193                                3/21/2026   Page 7 - 22
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - NPT

Pos.      Code          Description                  Qty Notes
KIT2210   34221001                                   1
KIT2155   34215501                                   1
KIT2154   34215401                                   1
KIT2135   34213501                                   1
KIT2119   34211901                                   1
KIT2013   34201301                                   1
KIT2012   34201201                                   1
68        98209800                                   1
65        71050866                                   3
64        90911000                                   3
63        90924000                                   3
63        90922200      UPPER HALF CONROD BUSHING 3
                        +0.5 (BIG END) S.70

63        90922100      UPPER HALF CONROD BUSHING 3
                        +0.25 (BIG END) S.70

62        90924300                                   3
62        90922500      LOWER HALF CONROD BUSHING 3
                        +0.50 (BIG END) S.70

62        90922400      LOWER HALF CONROD BUSHING 3
                        +0.25 (BIG END) S.70

61        71225951      PLUG CAP                     3
60        71225851                                   6
58        71223074      STAFFA DI SOLLEVAMENTO       1
57        99426600      VITE TE M12X25-UNI5739 ZINC. 1


56        71030701                                   3
55        90352800      O-RING D. 29.00x1.50 NBR 70SH 3


54        99199400                                   6
53        94754000      SPRING D.24.7X27             3
52        36713601                                   3
51        36713701                                   3
50        90524000                                   6
49        36204156                                   6
48        36208502      SPHERICAL VALVE COMPLETE     6
47        36208651      INNER VALVE GUIDE            6
46        94755000                                   3
45        36204505      VALVE CAGE SS (71 SERIES)    6


44        90388900                                   12
43        90525000                                   6




SN7193                                                           3/21/2026   Page 8 - 22
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - NPT

Pos.   Code             Description                Qty Notes

42     71223766                                    6
41     71210136                                    2
40     99429500         SCREW M12X35 UNI5931 12.31 14
                        DACR.
39     99448200                                    8
38     71125036                                    1
36     70222266                                    3
35     90238000                                    3
34     90389100                                    3
33     71227366                                    3
32     90238100                                    3
31     71227266                                    3
30     90079700                                    3
29     71223856                                    3
28     90367100                                    3
27     71040609                                    3
26     96714000                                    3
25     90167800                                    3
24     97743000                                    3
23     71050715                                    3
22     90060600                                    1
21     71606601                                    3
20     90170000                                    1
19     71150022                                    1
18     91500000                                    1
17     71020035                                    1
16     99313800                                    6
15     98206000                                    4
14     90400000                                    1
13     71160022                                    1
12     98212000                                    1
11     98218700                                    1
11     98218100                                    3
10     90384100         O-RING 17,12X2,62 (3068)   6
9      99186700         SCREW M 6x18 UNI 5931      20
8      71150122                                    1
7      90387700         O-RING 39,34X2,62 (3156)   1
6      70211801         OIL SIGHT GLASS            1
5      90075600         CIRCLIP D.45 (ZJ45)        1
4      70220381         SHIM 0.25 MM.              1
4      70220081         SHIM 0.1 MM.               1




SN7193                                                         3/21/2026   Page 9 - 22
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - NPT

Pos.   Code             Description   Qty Notes

3      90391800                       2
2      91859000                       2
1      71010022                       1




SN7193                                            3/21/2026   Page 10 - 22
Copyright INTERPUMP GROUP S.P.A
Illustration Gearbox with male shaft (key) - GAS - 1800 rpm - R=1,5




SN7193                                            3/21/2026           Page 11 - 22
Copyright INTERPUMP GROUP S.P.A
Illustration Gearbox with male shaft (key) - GAS - 1800 rpm - R=1,5

Pos.      Code          Description                 Qty Notes
KIT2210   34221001                                  1
KIT2155   34215501                                  1
KIT2154   34215401                                  1
KIT2135   34213501                                  1
KIT2119   34211901                                  1
KIT2013   34201301                                  1
KIT2012   34201201                                  1
95        99430700                                  1
94        97594000                                  1
93        90394800                                  1
92        90358500      O-RING 10,82X1,78 (2043)    2
91        97618500…

Technical Documents

(1)

Technical Data Sheet

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

Pratissoli Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Pratissoli 3G-ITP-00817 industrial pumps. Italian-engineered by Pratissoli (Interpump Group).

Frequently Asked Questions

What is the Pratissoli SN7193 R pump used for?

The Pratissoli SN7193 R is an industrial triplex plunger pump designed for high-pressure water applications. It is commonly used in pressure washing, hydro-demolition, water jet cutting, and industrial cleaning systems where reliable, continuous operation at pressures up to 210 bar is required.

What are the specifications of the Pratissoli SN7193 R pump?

The Pratissoli SN7193 R delivers a flow of 93 L/min at 210 bar (3045 psi) and operates at 1000 rpm. It requires 51 hp (37.5 kW) and weighs 68 kg. Overall dimensions are 526 x 367 x 252.5 mm. The pump is engineered by Pratissoli, part of the Interpump Group.

Where to buy the Pratissoli SN7193 R pump in Singapore?

3G Electric supplies the Pratissoli SN7193 R pump to customers in Singapore. We handle logistics, customs clearance, and delivery to your facility. Contact our team for a quotation and lead time on this Italian-engineered industrial pump from the Interpump Group.

How to select the right Pratissoli SN7193 R pump configuration?

Selecting the right Pratissoli SN7193 R configuration depends on your required flow and pressure. The base model operates at 1000 rpm. Options include male shaft (key) versions with GAS or NPT connections, and gearbox variants for 1800 or 2200 rpm. Consult the Pratissoli datasheet for ATEX-rated versions.

Used in

Common applications for Pratissoli

High-pressure industrial cleaning systems — Pratissoli SN7070F and SN71106F pumps (130–200 bar) for sustained pump duty in fixed or mobile wash equipment

Marine and shipboard hydraulic systems — SS7061H and SS71153 pumps rated 150–160 bar for deck machinery and propulsion auxiliaries requiring compact, reliable units

Construction equipment hydraulics — SN7193 and SN71106 models (200–210 bar) for excavator, loader, and crane power-transmission circuits

Industrial press and forming machinery — Pratissoli pump assemblies with ZR1X regulating valves (400 bar) for closed-loop pressure control in metal-working and rubber-molding lines

Mining and aggregates processing — Long-duty SS and SN series pumps (130–160 bar) supplying conveyor drives, screen shakers, and mobile crusher circuits

Oil and gas transfer and metering — Pratissoli regulating-valve models (H168A, R1/200) in skid-mounted pump packages for fluid loading, injection, and line-pressure stabilization

Spare Parts & Repair Kits

Official SN7193 parts list — 87 parts, 16 available in catalog

Official Parts List

SN7193 — Male shaft (key) - GAS exploded diagram

Individual Components

PosCodeDescriptionQty

SHIM 0.25 MM.

70220381×1Available

Pratissoli PUMP SN7193 R

Local availability & support — Singapore

Technical Specifications

Datasheet Content

Technical Documents

Need installation or engineering help?

Ask a question

Product Description

Frequently Asked Questions

Used in

Spare Parts & Repair Kits

Recommended Spare Parts

Pratissoli Products

You might also need
