PratissoliIndustrial Pumps

Pratissoli PUMP SS7037 R

The Pratissoli PUMP SS7037 R is an industrial positive-displacement pump designed for high-pressure applications requiring 200 bar (2900 psi) output at 37 L/min flow capacity. Operating at 1450 rpm with 13.9 kW power…

SKU 3G-ITP-00857

Also listed as: SS7037000 · SS7037 000

Brand

Pratissoli

Item

PUMP SS7037 R

Local availability & support — Singapore

Local office: 20 Woodlands Link #09-05, Singapore 738733
Phone: +65 8878 8355
Delivery: Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
Payment: Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
Ships to: Singapore

Technical Specifications

Pratissoli

Flow Rate

37 L/min

Pressure

200 bar

Power

13.9 kW

Speed

1450 RPM

Weight

43 kg

Dimensions

387 mm

Power

19 HP

Flow (US)

9.7 GPM

Pressure

20 MPa

Pressure

2900 PSI

Datasheet Content

SS7037




TECHNICAL INFORMATION
Flow (L/min)                        37
Flow (US Gpm)                       9,7
Rotation regime (rpm)               1450
Pressure (MPa)                      20
Pressure (bar)                      200
Pressure (psi)                      2900
Power (hp)                          19
Power (kW)                          13,9
Overall dimensions L x l x h (mm)   387x340,5x208
Weight (kg)                         43




SS7037                                              3/21/2026   Page 1 - 14
Copyright INTERPUMP GROUP S.P.A
SS7037

     Documents

Male shaft (key) - GAS

Male shaft (key) - NPT

Male shaft (key) + flange A - GAS




SS7037                              3/21/2026   Page 2 - 14
Copyright INTERPUMP GROUP S.P.A

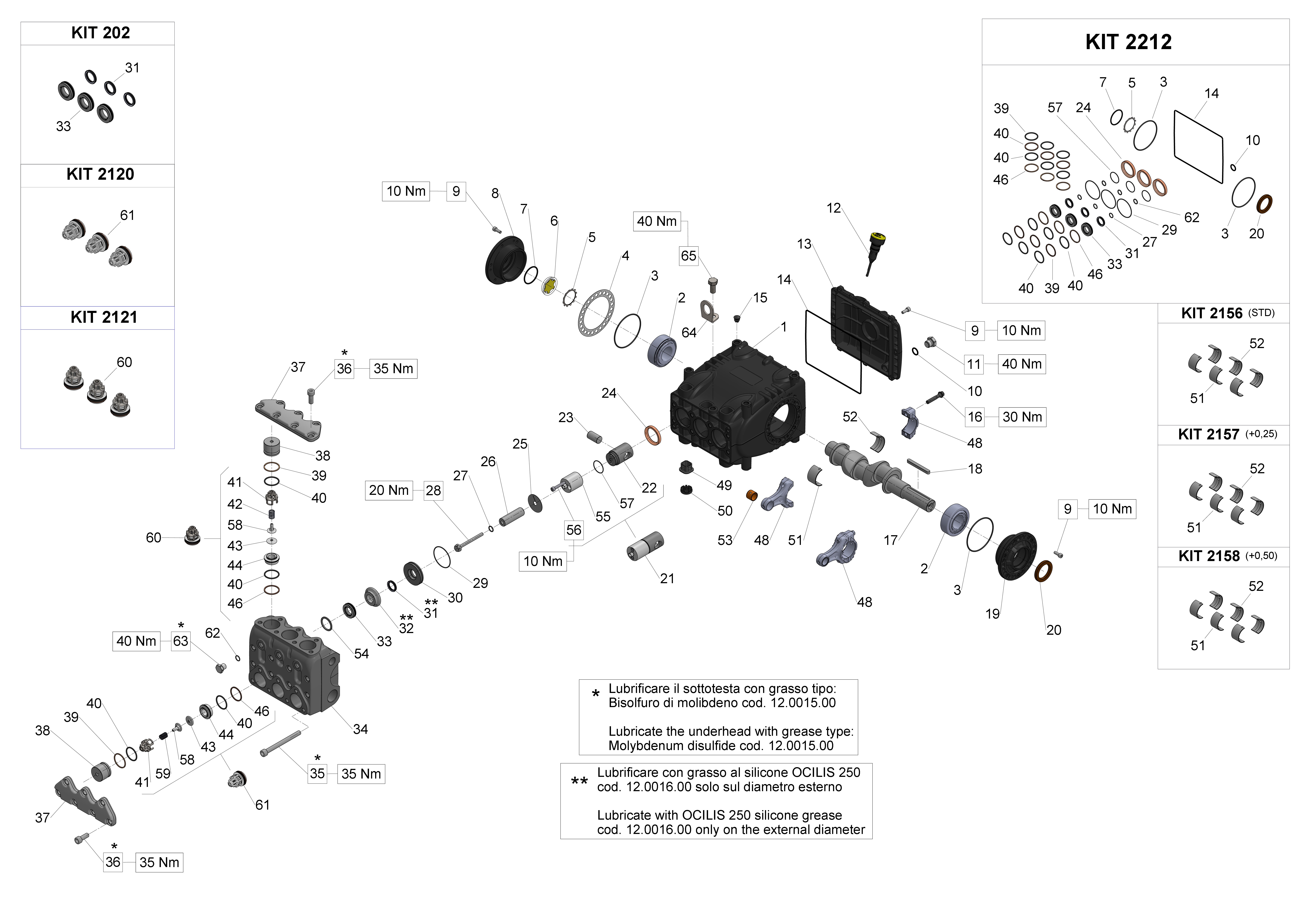

Illustration Male shaft (key) - GAS




SS7037                                3/21/2026   Page 3 - 14
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS

Pos.      Code          Description                  Qty Notes
KIT2212   34221201                                   1
KIT2158   34215801      KIT 2158*CONROD BUSHINGS     1
                        +0,50
KIT2157   34215701      KIT 2157*CONROD BUSHINGS     1
                        +0,25
KIT2156   34215601      KIT 2156*CONROD BUSHING      1
KIT2121   34212101                                   1
KIT2120   34212001                                   1
KIT202    34020201      KIT 202 SEALS D. 22 HT       1
65        99426600      VITE TE M12X25-UNI5739 ZINC. 1


64        71223074      STAFFA DI SOLLEVAMENTO       1
63        98204600                                   3
62        90358500      O-RING 10,82X1,78 (2043)     3
61        36716601                                   3
60        36716701                                   3
60        36713401                                   1
59        94739700                                   3
58        36210151                                   6
57        90352800      O-RING D. 29.00x1.50 NBR 70SH 3


56        99192500      SCREW M06X35 5931 A2-70      6
55        70050266      PISTON GUIDE ROD             3
54        70223766                                   3
53        90910000      CONROD BUSHING (SMALL END) 3
                        S.70
52        90922300      LOWER HALF CONROD BUSHING 3
                        (BIG END) S.70
52        90922500      LOWER HALF CONROD BUSHING 1
                        +0.50 (BIG END) S.70

52        90922400      LOWER HALF CONROD BUSHING 1
                        +0.25 (BIG END) S.70

51        90922000      UPPER HALF CONROD BUSHING 3
                        (BIG END) S.70
51        90922200      UPPER HALF CONROD BUSHING 1
                        +0.5 (BIG END) S.70

51        90922100      UPPER HALF CONROD BUSHING 1
                        +0.25 (BIG END) S.70

50        71225951      PLUG CAP                     3
49        70222551      CRANKCASE PLUG               6
48        70030501      CONNECTING ROD COMPLETE      3
46        90517800                                   6
44        36209466                                   6




SS7037                                                           3/21/2026   Page 4 - 14
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS

Pos.   Code             Description                   Qty Notes

44     36203866                                       1
43     36209866                                       6
43     36209966                                       1
42     94740100                                       3
41     36213805                                       6
40     90386500         O-RING 29,82X2,62 (3118)      12
39     90518000         ANTI-EXTR.RING                6
                        D.32.4X36.5X1.5
38     70222166                                       6
37     70221536                                       2
36     99367000                                       14
35     99381800                                       8
34     70124036                                       1

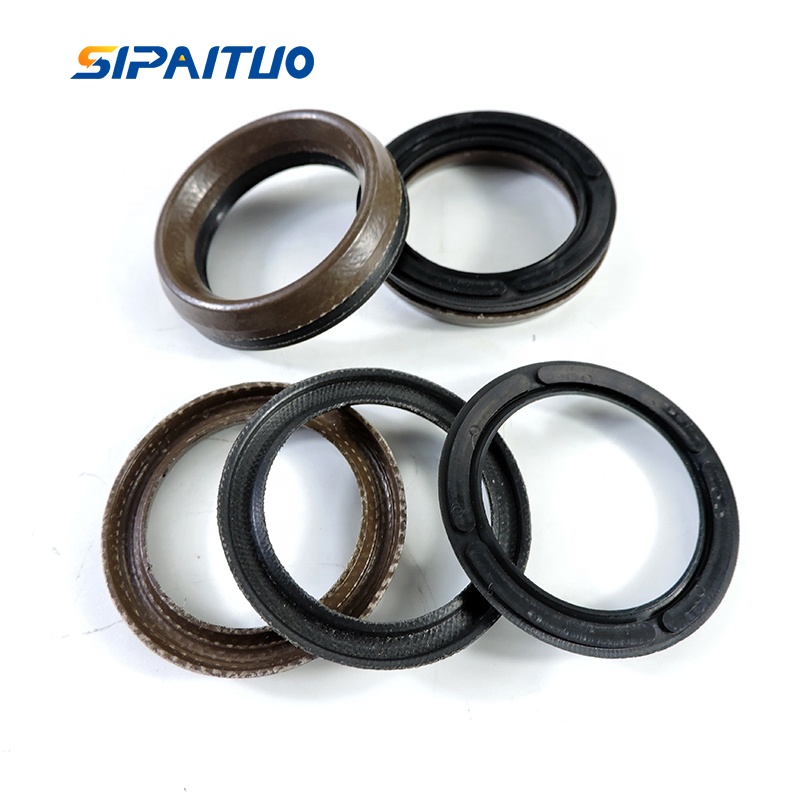

33     90231000         H.P. SEAL D. 22 (HT)          3
32     70223866                                       3
31     90230000         L.P. SEAL D.22 (HT)           3
30     70081666                                       3
29     90362600         O-RING D. 50,52X1,78 (2200)   3


28     70221866                                       3
27     90367100                                       3
26     70040109                                       3
25     96709900         WASHER D.10X45                3
24     90167700         OIL SEAL D.36X47X7            3
23     97742000         GUDGEON PIN D.18X36           3
22     70050115         PISTON GUIDE T.N.             3
21     70606801         PISTON GUIDE ASSY             3
20     90166800         OIL SEAL D.35X52X7            1
19     70150022         BEARING COVER (PTO SIDE)      1
18     91490000         KEY 8h9X7X70 UNI 6604/A       1
17     70020035                                       1
16     99312300         CONN.ROD BOLT M8X1X42         6
15     98200500         PLUG D. 15                    1
14     90394200         OR D.190.17X2.62 NBR 70SH     1


13     70160022                                       1
12     98211500         OIL DIPSTICK D.21,5X70        1
11     98210066         PLUG G 3/8 X 13 STAINLESS     1


10     90383300         O-RING 13,95X2,62 (3056)      1
9      99185200                                       20
8      70150122         BEARING COVER (OIL GLASS      1
                        SIDE)




SS7037                                                            3/21/2026   Page 5 - 14
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS

Pos.   Code             Description                  Qty Notes

7      90387700         O-RING 39,34X2,62 (3156)     1
6      70211801         OIL SIGHT GLASS              1
5      90075600         CIRCLIP D.45 (ZJ45)          1
4      70220381         SHIM 0.25 MM.                1
4      70220081         SHIM 0.1 MM.                 1
3      90391500         O-RING D. 80.6X2.62 (3318)   2


2      91847700         TAPER ROLLER BEARING         2
                        33207/Q
1      70010022         CRANKCASE                    1




SS7037                                                           3/21/2026   Page 6 - 14
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - NPT




SS7037                                3/21/2026   Page 7 - 14
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - NPT

Pos.      Code          Description                  Qty Notes
KIT2212   34221201                                   1
KIT2158   34215801      KIT 2158*CONROD BUSHINGS     1
                        +0,50
KIT2157   34215701      KIT 2157*CONROD BUSHINGS     1
                        +0,25
KIT2156   34215601      KIT 2156*CONROD BUSHING      1
KIT2121   34212101                                   1
KIT2120   34212001                                   1
KIT202    34020201      KIT 202 SEALS D. 22 HT       1
65        99426600      VITE TE M12X25-UNI5739 ZINC. 1


64        71223074      STAFFA DI SOLLEVAMENTO       1
63        98204600                                   3
62        90358500      O-RING 10,82X1,78 (2043)     3
61        36716601                                   3
60        36716701                                   3
60        36713401                                   1
59        94739700                                   3
58        36210151                                   6
57        90352800      O-RING D. 29.00x1.50 NBR 70SH 3


56        99192500      SCREW M06X35 5931 A2-70      6
55        70050266      PISTON GUIDE ROD             3
54        70223766                                   3
53        90910000      CONROD BUSHING (SMALL END) 3
                        S.70
52        90922300      LOWER HALF CONROD BUSHING 3
                        (BIG END) S.70
52        90922500      LOWER HALF CONROD BUSHING 1
                        +0.50 (BIG END) S.70

52        90922400      LOWER HALF CONROD BUSHING 1
                        +0.25 (BIG END) S.70

51        90922000      UPPER HALF CONROD BUSHING 3
                        (BIG END) S.70
51        90922200      UPPER HALF CONROD BUSHING 1
                        +0.5 (BIG END) S.70

51        90922100      UPPER HALF CONROD BUSHING 1
                        +0.25 (BIG END) S.70

50        71225951      PLUG CAP                     3
49        70222551      CRANKCASE PLUG               6
48        70030501      CONNECTING ROD COMPLETE      3
46        90517800                                   6
44        36209466                                   6




SS7037                                                           3/21/2026   Page 8 - 14
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - NPT

Pos.   Code             Description                   Qty Notes

44     36203866                                       2
43     36209866                                       6
43     36209966                                       2
42     94740100                                       3
41     36213805                                       6
40     90386500         O-RING 29,82X2,62 (3118)      12
39     90518000         ANTI-EXTR.RING                6
                        D.32.4X36.5X1.5
38     70222166                                       6
37     70221536                                       2
36     99367000                                       14
35     99381800                                       8
34     70128036                                       1
33     90231000         H.P. SEAL D. 22 (HT)          3
32     70223866                                       3
31     90230000         L.P. SEAL D.22 (HT)           3
30     70081666                                       3
29     90362600         O-RING D. 50,52X1,78 (2200)   3


28     70221866                                       3
27     90367100                                       3
26     70040109                                       3
25     96709900         WASHER D.10X45                3
24     90167700         OIL SEAL D.36X47X7            3
23     97742000         GUDGEON PIN D.18X36           3
22     70050115         PISTON GUIDE T.N.             3
21     70606801         PISTON GUIDE ASSY             3
20     90166800         OIL SEAL D.35X52X7            1
19     70150022         BEARING COVER (PTO SIDE)      1
18     91490000         KEY 8h9X7X70 UNI 6604/A       1
17     70020035                                       1
16     99312300         CONN.ROD BOLT M8X1X42         6
15     98200500         PLUG D. 15                    1
14     90394200         OR D.190.17X2.62 NBR 70SH     1


13     70160022                                       1
12     98211500         OIL DIPSTICK D.21,5X70        1
11     98210066         PLUG G 3/8 X 13 STAINLESS     1


10     90383300         O-RING 13,95X2,62 (3056)      1
9      99185200                                       20
8      70150122         BEARING COVER (OIL GLASS      1
                        SIDE)




SS7037                                                            3/21/2026   Page 9 - 14
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - NPT

Pos.   Code             Description                  Qty Notes

7      90387700         O-RING 39,34X2,62 (3156)     1
6      70211801         OIL SIGHT GLASS              1
5      90075600         CIRCLIP D.45 (ZJ45)          1
4      70220381         SHIM 0.25 MM.                1
4      70220081         SHIM 0.1 MM.                 1
3      90391500         O-RING D. 80.6X2.62 (3318)   2


2      91847700         TAPER ROLLER BEARING         2
                        33207/Q
1      70010022         CRANKCASE                    1




SS7037                                                           3/21/2026   Page 10 - 14
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) + flange A - GAS…

Technical Documents

(1)

Technical Data Sheet

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

Pratissoli Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

What is the Pratissoli PUMP SS7037 R used for?

The Pratissoli PUMP SS7037 R is an industrial positive-displacement pump designed for high-pressure applications requiring 200 bar (2900 psi) output at 37 L/min flow. It is suitable for demanding hydraulic and process systems, including water jetting, cleaning, and industrial fluid transfer.

What are the specifications of the Pratissoli PUMP SS7037 R?

The Pratissoli PUMP SS7037 R delivers 37 L/min (9.7 US GPM) at 200 bar (20 MPa, 2900 psi). It operates at 1450 rpm with 13.9 kW (19 hp) power input. The pump weighs 43 kg and has overall dimensions of 387 x 340.5 x 208 mm. It features a male shaft with key and GAS or NPT port options.

Where to buy the Pratissoli PUMP SS7037 R in Singapore?

3G Electric supplies the Pratissoli PUMP SS7037 R to customers in Singapore. We handle logistics, customs clearance, and delivery to your facility. Contact us for pricing and lead time on this high-pressure pump. We source genuine Pratissoli components for industrial applications.

How to install the Pratissoli PUMP SS7037 R?

Install the Pratissoli PUMP SS7037 R on a rigid, level foundation to minimize vibration. Align the pump shaft with the driver (motor or engine) using a flexible coupling. Ensure proper piping support and use the provided lifting bracket (part 71223074) for handling. Follow the manufacturer's torque specifications for all fasteners.

Used in

Common applications for Pratissoli

High-pressure industrial cleaning systems — Pratissoli SN7070F and SN71106F pumps (130–200 bar) for sustained pump duty in fixed or mobile wash equipment

Marine and shipboard hydraulic systems — SS7061H and SS71153 pumps rated 150–160 bar for deck machinery and propulsion auxiliaries requiring compact, reliable units

Construction equipment hydraulics — SN7193 and SN71106 models (200–210 bar) for excavator, loader, and crane power-transmission circuits

Industrial press and forming machinery — Pratissoli pump assemblies with ZR1X regulating valves (400 bar) for closed-loop pressure control in metal-working and rubber-molding lines

Mining and aggregates processing — Long-duty SS and SN series pumps (130–160 bar) supplying conveyor drives, screen shakers, and mobile crusher circuits

Oil and gas transfer and metering — Pratissoli regulating-valve models (H168A, R1/200) in skid-mounted pump packages for fluid loading, injection, and line-pressure stabilization

Spare Parts & Repair Kits

Official SS7037 parts list — 127 parts, 42 available in catalog

Official Parts List

SS7037 — Male shaft (key) - GAS exploded diagram

Repair Kits — Order These for Routine Maintenance

KIT202

KIT 202 SEALS D. 22 HT

34020201×1Available

Pratissoli PUMP SS7037 R

Local availability & support — Singapore

Technical Specifications

Datasheet Content

Technical Documents

Need installation or engineering help?

Ask a question

Product Description

Frequently Asked Questions

Used in

Spare Parts & Repair Kits

Recommended Spare Parts

Pratissoli Products

You might also need
