PratissoliIndustrial Pumps

Pratissoli PUMP SS71106 R

Pratissoli SS71106 R is a 55 hp industrial pump delivering 106 L/min at 200 bar, designed for high-pressure hydraulic systems requiring robust performance. Operating at 1000 rpm, it supports demanding industrial…

SKU 3G-ITP-00876

Also listed as: SS71106000 · SS71106 000

Brand

Pratissoli

Item

PUMP SS71106 R

Local availability & support — Singapore

Local office: 20 Woodlands Link #09-05, Singapore 738733
Phone: +65 8878 8355
Delivery: Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
Payment: Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
Ships to: Singapore

Technical Specifications

Pratissoli

Flow Rate

106 L/min

Pressure

200 bar

Power

40.4 kW

Speed

1000 RPM

Weight

68 kg

Dimensions

526 mm

Power

55 HP

Flow (US)

28 GPM

Pressure

20 MPa

Pressure

2900 PSI

Datasheet Content

SS71106




TECHNICAL INFORMATION
Flow (L/min)                        106
Flow (US Gpm)                       28
Rotation regime (rpm)               1000
Pressure (MPa)                      20
Pressure (bar)                      200
Pressure (psi)                      2900
Power (hp)                          55
Power (kW)                          40,4
Overall dimensions L x l x h (mm)   526x367x252,5
Weight (kg)                         68




SS71106                                             3/21/2026   Page 1 - 26
Copyright INTERPUMP GROUP S.P.A
SS71106

     Documents

Male shaft (key) - GAS

Male shaft (key) - NPT

Hollow shaft (spline) + SAE B flange - GAS

Hy-Pack version - GAS + piston motor 110cc

Gearbox with male shaft (key) - GAS - 1800 rpm - R=1,5

Gearbox with male shaft (key) - GAS - 2200 rpm - R=1,83




SS71106                                                   3/21/2026   Page 2 - 26
Copyright INTERPUMP GROUP S.P.A

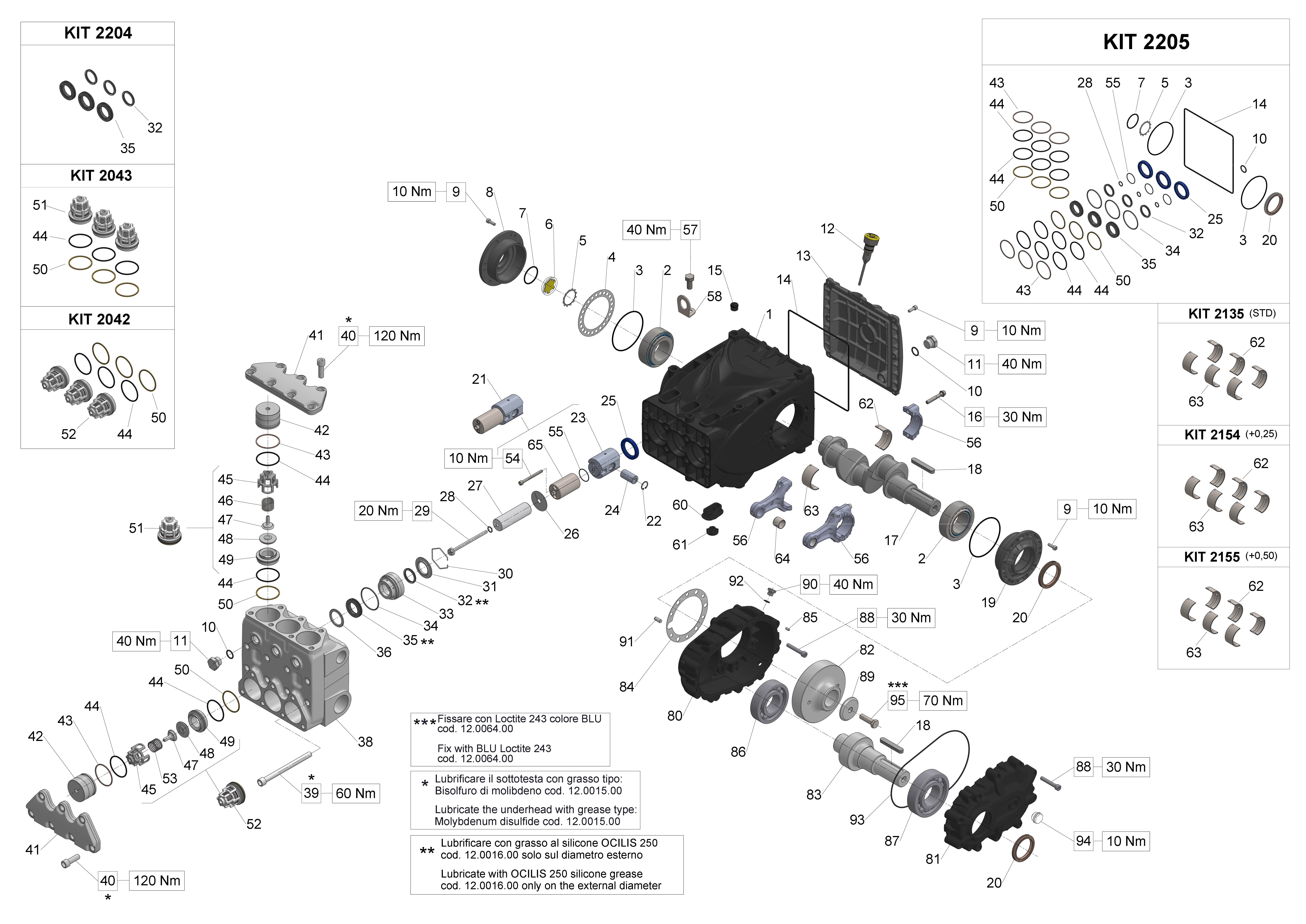

Illustration Male shaft (key) - GAS




SS71106                               3/21/2026   Page 3 - 26
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS

Pos.      Code          Description                  Qty Notes
KIT2205   34220501                                   1
KIT2204   34220401                                   1
KIT2155   34215501                                   1
KIT2154   34215401                                   1
KIT2135   34213501                                   1
KIT2043   34204301                                   1
KIT2042   34204201                                   1
65        71050866                                   3
64        90911000                                   3
63        90924000                                   3
63        90922200      UPPER HALF CONROD BUSHING 3
                        +0.5 (BIG END) S.70

63        90922100      UPPER HALF CONROD BUSHING 3
                        +0.25 (BIG END) S.70

62        90924300                                   3
62        90922500      LOWER HALF CONROD BUSHING 3
                        +0.50 (BIG END) S.70

62        90922400      LOWER HALF CONROD BUSHING 3
                        +0.25 (BIG END) S.70

61        71225951      PLUG CAP                     3
60        71225851                                   6
58        71223074      STAFFA DI SOLLEVAMENTO       1
57        99426600      VITE TE M12X25-UNI5739 ZINC. 1


56        71030701                                   3
55        90352800      O-RING D. 29.00x1.50 NBR 70SH 3


54        99199400                                   6
53        94754000      SPRING D.24.7X27             3
52        36715501                                   3
51        36715601                                   3
50        90524000                                   6
49        36207256                                   6
48        36209602                                   6
47        36208651      INNER VALVE GUIDE            6
46        94755000                                   3
45        36204505      VALVE CAGE SS (71 SERIES)    6


44        90388900                                   12
43        90525000                                   6
42        71223766                                   6




SS71106                                                          3/21/2026   Page 4 - 26
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS

Pos.   Code             Description                Qty Notes

41     71223636                                    2
40     99429500         SCREW M12X35 UNI5931 12.31 14
                        DACR.
39     99448200                                    8
38     71128636                                    1
36     70222266                                    3
35     90277100                                    3
34     90389100                                    3
33     71226766                                    3
32     90275950                                    3
31     71226666                                    3
30     90079700                                    3
29     71223856                                    3
28     90367100                                    3
27     71040309                                    3
26     96714000                                    3
25     90167800                                    3
24     97743000                                    3
23     71050715                                    3
22     90060600                                    1
21     71606601                                    3
20     90170000                                    1
19     71150022                                    1
18     91500000                                    1
17     71020035                                    1
16     99313800                                    6
15     98206000                                    4
14     90400000                                    1
13     71160022                                    1
12     98212000                                    1
11     98218100                                    4
10     90384100         O-RING 17,12X2,62 (3068)   6
9      99186800                                    20
8      71150122                                    1
7      90387700         O-RING 39,34X2,62 (3156)   1
6      70211801         OIL SIGHT GLASS            1
5      90075600         CIRCLIP D.45 (ZJ45)        1
4      70220381         SHIM 0.25 MM.              1
4      70220081         SHIM 0.1 MM.               1
3      90391800                                    2
2      91859000                                    2




SS71106                                                        3/21/2026   Page 5 - 26
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS

Pos.   Code             Description   Qty Notes

1      71010022                       1




SS71106                                           3/21/2026   Page 6 - 26
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - NPT




SS71106                               3/21/2026   Page 7 - 26
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - NPT

Pos.      Code          Description                  Qty Notes
KIT2205   34220501                                   1
KIT2204   34220401                                   1
KIT2155   34215501                                   1
KIT2154   34215401                                   1
KIT2135   34213501                                   1
KIT2043   34204301                                   1
KIT2042   34204201                                   1
65        71050866                                   3
64        90911000                                   3
63        90924000                                   3
63        90922200      UPPER HALF CONROD BUSHING 3
                        +0.5 (BIG END) S.70

63        90922100      UPPER HALF CONROD BUSHING 3
                        +0.25 (BIG END) S.70

62        90924300                                   3
62        90922500      LOWER HALF CONROD BUSHING 3
                        +0.50 (BIG END) S.70

62        90922400      LOWER HALF CONROD BUSHING 3
                        +0.25 (BIG END) S.70

61        71225951      PLUG CAP                     3
60        71225851                                   6
58        71223074      STAFFA DI SOLLEVAMENTO       1
57        99426600      VITE TE M12X25-UNI5739 ZINC. 1


56        71030701                                   3
55        90352800      O-RING D. 29.00x1.50 NBR 70SH 3


54        99199400                                   6
53        94754000      SPRING D.24.7X27             3
52        36715501                                   3
51        36715601                                   3
50        90524000                                   6
49        36207256                                   6
48        36209602                                   6
47        36208651      INNER VALVE GUIDE            6
46        94755000                                   3
45        36204505      VALVE CAGE SS (71 SERIES)    6


44        90388900                                   12
43        90525000                                   6
42        71223766                                   6




SS71106                                                          3/21/2026   Page 8 - 26
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - NPT

Pos.   Code             Description                Qty Notes

41     71223636                                    2
40     99429500         SCREW M12X35 UNI5931 12.31 14
                        DACR.
39     99448200                                    8
38     71127236                                    1
36     70222266                                    3
35     90277100                                    3
34     90389100                                    3
33     71226766                                    3
32     90275950                                    3
31     71226666                                    3
30     90079700                                    3
29     71223856                                    3
28     90367100                                    3
27     71040309                                    3
26     96714000                                    3
25     90167800                                    3
24     97743000                                    3
23     71050715                                    3
22     90060600                                    1
21     71606601                                    3
20     90170000                                    1
19     71150022                                    1
18     91500000                                    1
17     71020035                                    1
16     99313800                                    6
15     98206000                                    4
14     90400000                                    1
13     71160022                                    1
12     98212000                                    1
11     98218100                                    4
10     90384100         O-RING 17,12X2,62 (3068)   6
9      99186800                                    20
8      71150122                                    1
7      90387700         O-RING 39,34X2,62 (3156)   1
6      70211801         OIL SIGHT GLASS            1
5      90075600         CIRCLIP D.45 (ZJ45)        1
4      70220381         SHIM 0.25 MM.              1
4      70220081         SHIM 0.1 MM.               1
3      90391800                                    2
2      91859000                                    2




SS71106                                                        3/21/2026   Page 9 - 26
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - NPT

Pos.   Code             Description   Qty Notes

1      71010022                       1




SS71106                                           3/21/2026   Page 10 - 26
Copyright INTERPUMP GROUP S.P.A
Illustration Hollow shaft (spline) + SAE B flange - GAS




SS71106                                             3/21/2026   Page 11 - 26
Copyright INTERPUMP GROUP S.P.A
Illustration Hollow shaft (spline) + SAE B flange - GAS

Pos.      Code          Description                  Qty Notes
KIT2205   34220501                                   1
KIT2204   34220401                                   1
KIT2155   34215501                                   1
KIT2154   34215401                                   1
KIT2135   34213501                                   1
KIT2043   34204301                                   1
KIT2042   34204201                                   1
76        90206500      PLUG FOR BORE D.17 - TTN19   1


75        ZRPM1         ZRPM1                        1
74        92202500      NUT M6 UNI 5588 6S           1
73        70227034      VITE M6X12 CON INCAVO        1
                        COMPLETA
72        71228971      ANELLO PER ALBERO D.40       1…

Technical Documents

(1)

Technical Data Sheet

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

Pratissoli Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

What is the Pratissoli SS71106 R pump used for?

The Pratissoli SS71106 R is a 55 hp industrial pump used in high-pressure hydraulic systems. It delivers 106 L/min at 200 bar and operates at 1000 rpm, making it suitable for demanding industrial applications that require sustained pressure and flow reliability.

What are the specifications of the Pratissoli SS71106 R pump?

The Pratissoli SS71106 R pump has a power rating of 55 hp (40.4 kW), delivers 106 L/min (28 US Gpm) at 200 bar (20 MPa, 2900 psi), and operates at 1000 rpm. It weighs 68 kg and has overall dimensions of 526 x 367 x 252.5 mm.

Where to buy the Pratissoli SS71106 R pump in Singapore?

3G Electric supplies the Pratissoli SS71106 R pump to Singapore. We handle logistics, customs clearance, and delivery to your facility. Contact us for pricing and lead time on this high-pressure industrial pump.

How to select the right Pratissoli pump for my application?

To select the right Pratissoli pump, match the required flow and pressure to your system. The SS71106 R delivers 106 L/min at 200 bar and operates at 1000 rpm. Ensure your drive motor provides 55 hp and that port connections (GAS or NPT) suit your piping.

Used in

Common applications for Pratissoli

High-pressure industrial cleaning systems — Pratissoli SN7070F and SN71106F pumps (130–200 bar) for sustained pump duty in fixed or mobile wash equipment

Marine and shipboard hydraulic systems — SS7061H and SS71153 pumps rated 150–160 bar for deck machinery and propulsion auxiliaries requiring compact, reliable units

Construction equipment hydraulics — SN7193 and SN71106 models (200–210 bar) for excavator, loader, and crane power-transmission circuits

Industrial press and forming machinery — Pratissoli pump assemblies with ZR1X regulating valves (400 bar) for closed-loop pressure control in metal-working and rubber-molding lines

Mining and aggregates processing — Long-duty SS and SN series pumps (130–160 bar) supplying conveyor drives, screen shakers, and mobile crusher circuits

Oil and gas transfer and metering — Pratissoli regulating-valve models (H168A, R1/200) in skid-mounted pump packages for fluid loading, injection, and line-pressure stabilization

Spare Parts & Repair Kits

Official SS71106 parts list — 98 parts, 14 available in catalog

Official Parts List

SS71106 — Male shaft (key) - GAS exploded diagram

Individual Components

PosCodeDescriptionQty

70220081×1Available

70220381×1Available

90075600×1Available

70211801×1Available

O-RING 39,34X2,62 (3156)

90387700×1Available

View

O-RING 17,12X2,62 (3068)

90384100×6Available

View

SCREW M12X35 UNI5931 12.31 DACR.

99429500×14Available

View

VALVE CAGE SS (71 SERIES)

36204505×6Available

36208651×6Available

94754000×3Available

STAFFA DI SOLLEVAMENTO

71223074×1Available

View

PLUG CAP

71225951×3Available

View

UPPER HALF CONROD BUSHING +0.5 (BIG END) S.70

90922200×3Available

View

UPPER HALF CONROD BUSHING +0.25 (BIG END) S.70

90922100×3Available

View

Need multiple parts? Request a bundled quote

14 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote

✓ Genuine manufacturer parts✓ Expert technical support✓ Worldwide shipping

Official SS71106 parts list — Industrial Pumps (Stainless Steel Versions Series 71 SS)

Recommended Spare Parts

⚙

Valves

INNER VALVE GUIDE

36208651

⚙

Spare Parts

O-RING 10,82X1,78 (2043)

90358500

⚙

Spare Parts

SPRING D.24.7X27

94754000

⚙

Accessories

PIN D.5x10

97615200

⚙

Spare Parts

OIL SIGHT GLASS

70211801

⚙

Accessories

PLUG G1/4"x12

98204250

⚙

Spare Parts

VITE M6X12 CON INCAVO COMPLETA

70227034

Accessories

SCREW M12X35 UNI5931 12.31 DACR

99429500

⚙

Accessories

NUT M6 UNI 5588 6S

92202500

⚙

Accessories

PLUG CAP

71225951

⚙

Spare Parts

SHIM 0.25 MM

70220381

⚙

Spare Parts

ANELLO PER ALBERO D.40 H.PACK

71228971

View full cross-reference for Pratissoli 3G-ITP-00876→

Pratissoli Products

3G Electric supplies Pratissoli industrial pumps. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.

Browse all Pratissoli products →Contact our engineers →
