Pratissoli PUMP SS7193 R

The Pratissoli SS7193 R is an industrial pump designed for high-pressure applications, delivering 93 L/min at 200 bar with 35.3 kW power input. Operating at 1000 rpm, it suits demanding hydraulic and process systems…

SKU 3G-ITP-00902

Also listed as: SS7193000 · SS7193 000

Brand

Pratissoli

Item

PUMP SS7193 R

Local availability & support — Singapore

Local office: 20 Woodlands Link #09-05, Singapore 738733
Phone: +65 8878 8355
Delivery: Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
Payment: Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
Ships to: Singapore

Technical Specifications

Pratissoli

Flow Rate

93 L/min

Pressure

200 bar

Power

35.3 kW

Speed

1000 RPM

Weight

68 kg

Dimensions

526 mm

Power

48 HP

Flow (US)

24.5 GPM

Pressure

20 MPa

Pressure

2900 PSI

Datasheet Content

SS7193




TECHNICAL INFORMATION
Flow (L/min)                        93
Flow (US Gpm)                       24,5
Rotation regime (rpm)               1000
Pressure (MPa)                      20
Pressure (bar)                      200
Pressure (psi)                      2900
Power (hp)                          48
Power (kW)                          35,3
Overall dimensions L x l x h (mm)   526x367x252,5
Weight (kg)                         68




SS7193                                              3/21/2026   Page 1 - 18
Copyright INTERPUMP GROUP S.P.A
SS7193

     Documents

Male shaft (key) - GAS

Male shaft (key) - NPT

Gearbox with male shaft (key) - GAS - 1800 rpm - R=1,5

Male shaft (key) - GAS - ATEX




SS7193                                                   3/21/2026   Page 2 - 18
Copyright INTERPUMP GROUP S.P.A

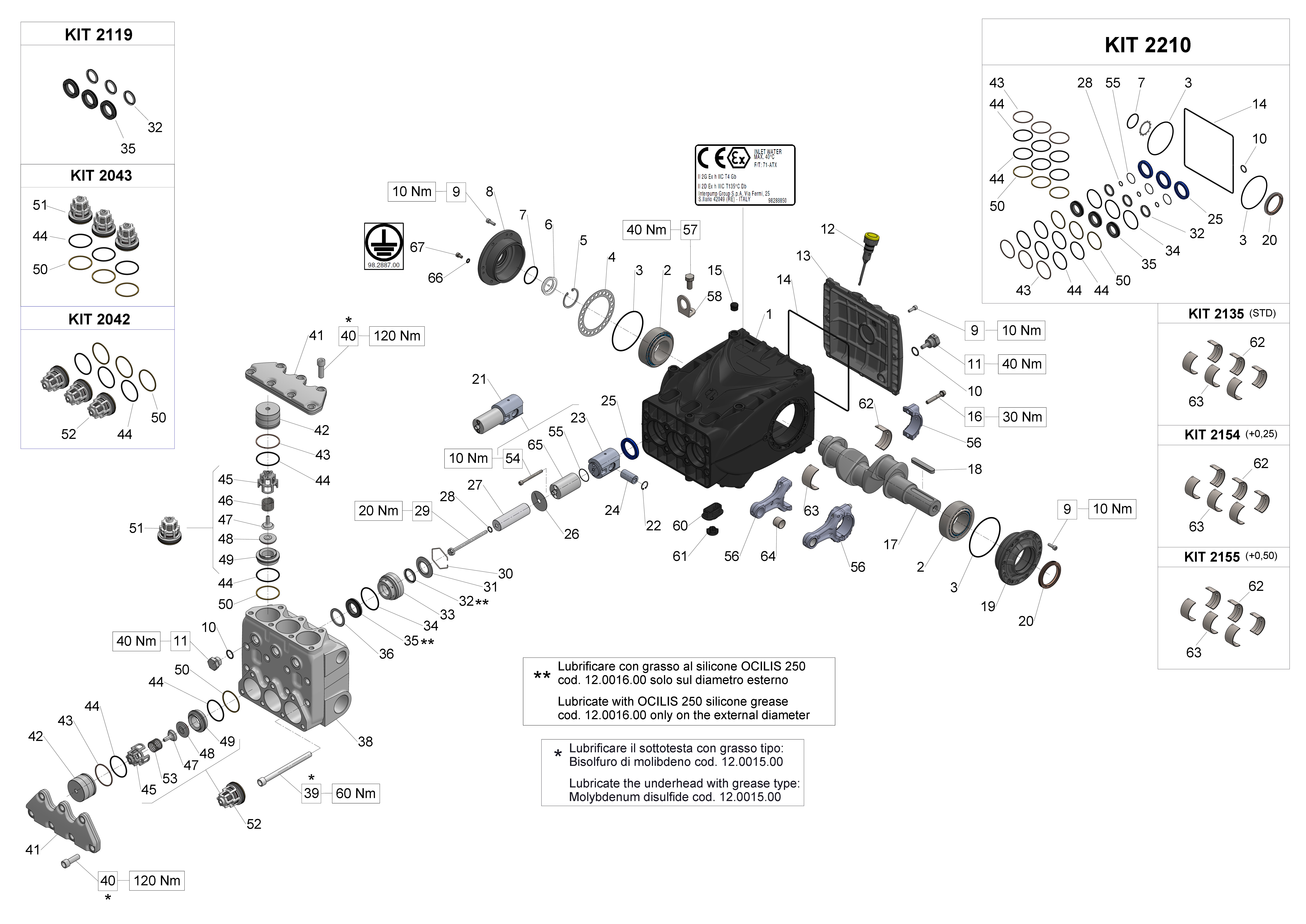

Illustration Male shaft (key) - GAS




SS7193                                3/21/2026   Page 3 - 18
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS

Pos.      Code          Description                  Qty Notes
KIT2210   34221001                                   1
KIT2155   34215501                                   1
KIT2154   34215401                                   1
KIT2135   34213501                                   1
KIT2119   34211901                                   1
KIT2043   34204301                                   1
KIT2042   34204201                                   1
65        71050866                                   3
64        90911000                                   3
63        90924000                                   3
63        90922200      UPPER HALF CONROD BUSHING 3
                        +0.5 (BIG END) S.70

63        90922100      UPPER HALF CONROD BUSHING 3
                        +0.25 (BIG END) S.70

62        90924300                                   3
62        90922500      LOWER HALF CONROD BUSHING 3
                        +0.50 (BIG END) S.70

62        90922400      LOWER HALF CONROD BUSHING 3
                        +0.25 (BIG END) S.70

61        71225951      PLUG CAP                     3
60        71225851                                   6
58        71223074      STAFFA DI SOLLEVAMENTO       1
57        99426600      VITE TE M12X25-UNI5739 ZINC. 1


56        71030701                                   3
55        90352800      O-RING D. 29.00x1.50 NBR 70SH 3


54        99199400                                   6
53        94754000      SPRING D.24.7X27             3
52        36715501                                   3
51        36715601                                   3
50        90524000                                   6
49        36207256                                   6
48        36209602                                   6
47        36208651      INNER VALVE GUIDE            6
46        94755000                                   3
45        36204505      VALVE CAGE SS (71 SERIES)    6


44        90388900                                   12
43        90525000                                   6
42        71223766                                   6




SS7193                                                           3/21/2026   Page 4 - 18
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS

Pos.   Code             Description                Qty Notes

41     71223636                                    2
40     99429500         SCREW M12X35 UNI5931 12.31 14
                        DACR.
39     99448200                                    8
38     71128636                                    1
36     70222266                                    3
35     90238000                                    3
34     90389100                                    3
33     71227366                                    3
32     90238100                                    3
31     71227266                                    3
30     90079700                                    3
29     71223856                                    3
28     90367100                                    3
27     71040609                                    3
26     96714000                                    3
25     90167800                                    3
24     97743000                                    3
23     71050715                                    3
22     90060600                                    1
21     71606601                                    3
20     90170000                                    1
19     71150022                                    1
18     91500000                                    1
17     71020035                                    1
16     99313800                                    6
15     98206000                                    4
14     90400000                                    1
13     71160022                                    1
12     98212000                                    1
11     98218100                                    4
10     90384100         O-RING 17,12X2,62 (3068)   6
9      99186800                                    20
8      71150122                                    1
7      90387700         O-RING 39,34X2,62 (3156)   1
6      70211801         OIL SIGHT GLASS            1
5      90075600         CIRCLIP D.45 (ZJ45)        1
4      70220381         SHIM 0.25 MM.              1
4      70220081         SHIM 0.1 MM.               1
3      90391800                                    2
2      91859000                                    2




SS7193                                                         3/21/2026   Page 5 - 18
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS

Pos.   Code             Description   Qty Notes

1      71010022                       1




SS7193                                            3/21/2026   Page 6 - 18
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - NPT




SS7193                                3/21/2026   Page 7 - 18
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - NPT

Pos.      Code          Description                  Qty Notes
KIT2210   34221001                                   1
KIT2155   34215501                                   1
KIT2154   34215401                                   1
KIT2135   34213501                                   1
KIT2119   34211901                                   1
KIT2043   34204301                                   1
KIT2042   34204201                                   1
65        71050866                                   3
64        90911000                                   3
63        90924000                                   3
63        90922200      UPPER HALF CONROD BUSHING 3
                        +0.5 (BIG END) S.70

63        90922100      UPPER HALF CONROD BUSHING 3
                        +0.25 (BIG END) S.70

62        90924300                                   3
62        90922500      LOWER HALF CONROD BUSHING 3
                        +0.50 (BIG END) S.70

62        90922400      LOWER HALF CONROD BUSHING 3
                        +0.25 (BIG END) S.70

61        71225951      PLUG CAP                     3
60        71225851                                   6
58        71223074      STAFFA DI SOLLEVAMENTO       1
57        99426600      VITE TE M12X25-UNI5739 ZINC. 1


56        71030701                                   3
55        90352800      O-RING D. 29.00x1.50 NBR 70SH 3


54        99199400                                   6
53        94754000      SPRING D.24.7X27             3
52        36715501                                   3
51        36715601                                   3
50        90524000                                   6
49        36207256                                   6
48        36209602                                   6
47        36208651      INNER VALVE GUIDE            6
46        94755000                                   3
45        36204505      VALVE CAGE SS (71 SERIES)    6


44        90388900                                   12
43        90525000                                   6
42        71223766                                   6




SS7193                                                           3/21/2026   Page 8 - 18
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - NPT

Pos.   Code             Description                Qty Notes

41     71223636                                    2
40     99429500         SCREW M12X35 UNI5931 12.31 14
                        DACR.
39     99448200                                    8
38     71127236                                    1
36     70222266                                    3
35     90238000                                    3
34     90389100                                    3
33     71227366                                    3
32     90238100                                    3
31     71227266                                    3
30     90079700                                    3
29     71223856                                    3
28     90367100                                    3
27     71040609                                    3
26     96714000                                    3
25     90167800                                    3
24     97743000                                    3
23     71050715                                    3
22     90060600                                    1
21     71606601                                    3
20     90170000                                    1
19     71150022                                    1
18     91500000                                    1
17     71020035                                    1
16     99313800                                    6
15     98206000                                    4
14     90400000                                    1
13     71160022                                    1
12     98212000                                    1
11     98218100                                    4
10     90384100         O-RING 17,12X2,62 (3068)   6
9      99186800                                    20
8      71150122                                    1
7      90387700         O-RING 39,34X2,62 (3156)   1
6      70211801         OIL SIGHT GLASS            1
5      90075600         CIRCLIP D.45 (ZJ45)        1
4      70220381         SHIM 0.25 MM.              1
4      70220081         SHIM 0.1 MM.               1
3      90391800                                    2
2      91859000                                    2




SS7193                                                         3/21/2026   Page 9 - 18
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - NPT

Pos.   Code             Description   Qty Notes

1      71010022                       1




SS7193                                            3/21/2026   Page 10 - 18
Copyright INTERPUMP GROUP S.P.A
Illustration Gearbox with male shaft (key) - GAS - 1800 rpm - R=1,5




SS7193                                            3/21/2026           Page 11 - 18
Copyright INTERPUMP GROUP S.P.A
Illustration Gearbox with male shaft (key) - GAS - 1800 rpm - R=1,5

Pos.      Code          Description                 Qty Notes
KIT2210   34221001                                  1
KIT2155   34215501                                  1
KIT2154   34215401                                  1
KIT2135   34213501                                  1
KIT2119   34211901                                  1
KIT2043   34204301                                  1
KIT2042   34204201                                  1
95        99430700                                  1
94        97594000                                  1
93        90394800                                  1
92        90358500      O-RING 10,82X1,78 (2043)    2
90        98204250      PLUG G1/4"x12               2
91        97618500                                  1
89        72211055                                  1
88        99314600…

Technical Documents

(1)

Technical Data Sheet

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

Pratissoli Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

What is the Pratissoli SS7193 R pump used for?

The Pratissoli SS7193 R is an industrial pump for high-pressure applications such as hydraulic systems and process systems. It delivers 93 L/min at 200 bar with 35.3 kW power input, operating at 1000 rpm, making it suitable for sustained pressure performance in demanding environments.

What are the specifications of the Pratissoli SS7193 R pump?

The Pratissoli SS7193 R pump has a flow of 93 L/min (24.5 US GPM), pressure of 200 bar (20 MPa, 2900 psi), power input of 35.3 kW (48 hp), rotation speed of 1000 rpm, weight of 68 kg, and overall dimensions of 526 x 367 x 252.5 mm. It is manufactured by Interpump Group S.p.A.

Where to buy the Pratissoli SS7193 R pump in Singapore?

3G Electric supplies the Pratissoli SS7193 R pump to Singapore. We handle logistics, customs clearance, and delivery to your facility. Contact us for pricing and lead time on this high-pressure industrial pump.

How to select the right Pratissoli SS7193 R pump for my system?

To select the Pratissoli SS7193 R pump, match its flow of 93 L/min and pressure of 200 bar to your system's requirements. Ensure the power source provides 35.3 kW at 1000 rpm. Verify shaft type (keyed) and port threads (GAS or NPT) from the datasheet. Consult 3G Electric for application guidance.

Used in

Common applications for Pratissoli

High-pressure industrial cleaning systems — Pratissoli SN7070F and SN71106F pumps (130–200 bar) for sustained pump duty in fixed or mobile wash equipment

Marine and shipboard hydraulic systems — SS7061H and SS71153 pumps rated 150–160 bar for deck machinery and propulsion auxiliaries requiring compact, reliable units

Construction equipment hydraulics — SN7193 and SN71106 models (200–210 bar) for excavator, loader, and crane power-transmission circuits

Industrial press and forming machinery — Pratissoli pump assemblies with ZR1X regulating valves (400 bar) for closed-loop pressure control in metal-working and rubber-molding lines

Mining and aggregates processing — Long-duty SS and SN series pumps (130–160 bar) supplying conveyor drives, screen shakers, and mobile crusher circuits

Oil and gas transfer and metering — Pratissoli regulating-valve models (H168A, R1/200) in skid-mounted pump packages for fluid loading, injection, and line-pressure stabilization

Spare Parts & Repair Kits

Official SS7193 parts list — 60 parts, 14 available in catalog

Official Parts List

SS7193 — Male shaft (key) - GAS exploded diagram

Individual Components

PosCodeDescriptionQty

70220081×1Available

70220381×1Available

90075600×1Available

70211801×1Available

O-RING 39,34X2,62 (3156)

90387700×1Available

View

O-RING 17,12X2,62 (3068)

90384100×6Available

View

SCREW M12X35 UNI5931 12.31 DACR.

99429500×14Available

View

VALVE CAGE SS (71 SERIES)

36204505×6Available

36208651×6Available

94754000×3Available

STAFFA DI SOLLEVAMENTO

71223074×1Available

View

PLUG CAP

71225951×3Available

View

UPPER HALF CONROD BUSHING +0.5 (BIG END) S.70

90922200×3Available

View

UPPER HALF CONROD BUSHING +0.25 (BIG END) S.70

90922100×3Available

View

Need multiple parts? Request a bundled quote

14 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote

✓ Genuine manufacturer parts✓ Expert technical support✓ Worldwide shipping

Official SS7193 parts list — Industrial Pumps (Stainless Steel Versions Series 64 SS)

Recommended Spare Parts

⚙

Valves

INNER VALVE GUIDE

36208651

⚙

Spare Parts

O-RING 10,82X1,78 (2043)

90358500

⚙

Spare Parts

SPRING D.24.7X27

94754000

⚙

Accessories

PIN D.5x10

97615200

⚙

Spare Parts

OIL SIGHT GLASS

70211801

⚙

Accessories

PLUG G1/4"x12

98204250

Accessories

SCREW M12X35 UNI5931 12.31 DACR

99429500

⚙

Accessories

PLUG CAP

71225951

⚙

Accessories

SCREW M06X10 5931 A2-70

99180900

⚙

Spare Parts

STOP RING J45 UNI7437

90075500

⚙

Spare Parts

SHIM 0.25 MM

70220381

Spare Parts

O-RING 17,12X2,62 (3068)

90384100

View full cross-reference for Pratissoli 3G-ITP-00902→

Pratissoli Products

3G Electric supplies Pratissoli industrial pumps. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.

Browse all Pratissoli products →Contact our engineers →
