InterpumpPumps & Compressors

Interpump PUMP SSU2050 R

The Interpump PUMP SSU2050 R is an industrial pump delivering 50 L/min at 200 bar, rated for 26 hp and 1750 rpm operation. Its compact 340.5 mm length and 21 kg weight make it suitable for high-pressure hydraulic and…

SKU 3G-ITP-00937

Also listed as: SSU2050000 · SSU2050 000

Brand

Interpump

Item

PUMP SSU2050 R

Local availability & support — Singapore

Local office: 20 Woodlands Link #09-05, Singapore 738733
Phone: +65 8878 8355
Delivery: Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
Payment: Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
Ships to: Singapore

Technical Specifications

Interpump

Flow Rate

50 L/min

Pressure

200 bar

Power

19.12 kW

Speed

1750 RPM

Weight

21 kg

Dimensions

340.5 mm

Power

26 HP

Flow (US)

13.2 GPM

Pressure

20 MPa

Pressure

2900 PSI

Datasheet Content

C2W2013




TECHNICAL INFORMATION
Flow (L/min)                        13
Flow (US Gpm)                       3,43
Rotation regime (rpm)               1450
Pressure (MPa)                      20
Pressure (bar)                      200
Pressure (psi)                      2900
Power (hp)                          6,8
Power (kW)                          5
Overall dimensions L x l x h (mm)   241,5x215x129,5
Weight (kg)                         7




C2W2013                                               3/21/2026   Page 1 - 5
Copyright INTERPUMP GROUP S.P.A
C2W2013

     Documents

Male shaft (key)




C2W2013                           3/21/2026   Page 2 - 5
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key)




C2W2013                           3/21/2026   Page 3 - 5
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key)

Pos.     Code           Description                   Qty Notes
KIT343   34034301       KIT 343 CPL. SEAL D. 18 C2W   1

KIT342   34034201       KIT 342 PACKING D. 18 C2W     1

KIT292   34029201       KIT 292 VALVE PLUGS (NICK.)59 1
                        S.
KIT271   34027101       KIT 271 OIL SEAL D.15         1
                        58/59 SERIES

KIT269   34026901       KIT 269 INTAKE/DELIVERY       1
                        VALVES
62       58100151       ANELLO DI TESTA D.18 LP (CW) 3


61       50200074       PUMP FOOT                     2
60       96701600       WASHER 8,4                    4
59       99303700       SCREW M 8x16-5739             4
58       90358500       O-RING 10,82X1,78 (2043)      1
57       98204250       PLUG G1/4"x12                 1
56       58160022       REAR CRANKCASE COVER          1
55       90392550       O-RING D.113.97X2.62          1
54       98210500       OIL DIPSTICK G3/8x51 D.7      1
53       91489200       KEY 8(h9)X7X35 UNI 6604/A     1


52       90164100       OIL SEAL D.25X62X10           1
51       58150122       COPERCHIO LATERALE            1
50       90067100       CIRCLIP ZJ30                  1
49       90385900       O-RING 25,07X2,62 (3100)      1
48       90389800       O-RING 56,82X2,62 (3225)      1
47       91833100       BALL BEARING 6305 SKF         2
46       63021635       CRANKSHAFT C.12               1
45       53210851       OIL LEVEL GAUGE               1
44       99183700       SCREW M 6x14 UNI 5931         8
43       90063500       CIRCLIP D. 25 UNI 7435        1
42       58030022       CONNECTING ROD                3
41       97734000       CONNECTING-ROD PIN            3
                        D.10X29,5
40       58050066       PISTON GUIDE                  3
39       90156550       OIL SEAL D.15X24X5/7          3
38       58210451       PROTECTION                    1
37       58010022       PUMP CRANKCASE                1
36       58210582       SPONGE GASKET D.3X94          1
35       96699000       WASHER D.7.5X23X0.5           3
34       96751400       WASHER 21,5X27X1,5            1
33       98217900       PLUG G 1/2X10 NICKEL          1
32       96738000       WASHER 17,5X23X1,5            1




C2W2013                                                           3/21/2026   Page 4 - 5
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key)

Pos.   Code             Description                   Qty Notes

31     98209900         PLUG G. 3/8X13 NICKEL         1
30     58210870         RING FOR SEAL D.18            3
29     90265030         PACKING D. 18,0x24x5 LP CW    3


27     90360600         O-RING 26,70X1,78 (2106)      3
26     58605801         PACKING RETAINER+SLEEVE       3
                        D.18
25     90265530         PACKING D. 18,0x28x10 HP CW 3


24     90511000         ANTI-EXTR.RING D.18X28X2      3
23     90265330         PACKING D. 18,0x28x6/3,7 HP   3
                        CW
22     66100351         HEAD RING D.18 H.P.           3
21     99317500         SCREW M 8x60 UNI 5931         8
20     98213750         PLUG M18X1,5X10 D.23 (NICK.) 3


19     90359300         O-RING 15,60X1,78 (2062)      3
18     36719301         OUTLET VALVE                  3
17     36211151         VALVE CAGE                    3
16     94733300         SPRING D.6.2x10.5 S.S.        3
15     36211276         SPHERICAL VALVE               3
14     36211366         VALVE SEAT                    3
13     90367400         O-RING D. 12X2 (120-20)       3
12     58040209         PISTON D.18X42                3
11     96690500         WASHER D.5X11.5x0.4           3
                        INOX+FKM58/59/63HT
10     99169000         SCREW M05X55 SPEC. A2-70      3
9      98222500         VALVE CAP M24X1,5X17 NICKEL 3


8      90384700         O-RING 20,29X2,62(3081)       3
7      36711501         INTAKE/DELIVERY VALVE         3
6      90384100         O-RING 17,12X2,62 (3068)      3
5      36200366         VALVE SEAT                    3
4      36200176         VALVE PLATE                   3
3      94737600         SPRING D. 9,4X14,8            3
2      36202551         VALVE CAGE                    3
1      58120836         MANIFOLD FOR PISTON D. 18     1
                        C2W




C2W2013                                                           3/21/2026   Page 5 - 5
Copyright INTERPUMP GROUP S.P.A

Technical Documents

(1)

Technical Data Sheet

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

Interpump Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

What is the Interpump PUMP SSU2050 R used for?

The Interpump PUMP SSU2050 R is an industrial pump used for high-pressure hydraulic and mobile equipment applications. It delivers 50 L/min at 200 bar, making it suitable for pressure washing, water jetting, and industrial cleaning systems where reliable, continuous high-pressure flow is required.

What are the specifications of the Interpump PUMP SSU2050 R?

The Interpump PUMP SSU2050 R delivers 50 L/min at 200 bar (2900 psi), rated for 26 hp (19.12 kW) at 1750 rpm. It weighs 21 kg with overall dimensions of 340.5 mm length. The pump features a male shaft with key and includes a complete seal kit (KIT343) and packing kit (KIT342) per the manufacturer datasheet.

Where to buy the Interpump PUMP SSU2050 R in Singapore?

You can order the Interpump PUMP SSU2050 R through 3G Electric in Singapore. We source this industrial pump from Interpump and handle all logistics, customs clearance, and delivery to your facility. Contact our team for current lead times and pricing.

How to install the Interpump PUMP SSU2050 R?

Install the Interpump PUMP SSU2050 R on a rigid, level base aligned with the drive shaft. Use flexible hoses to reduce vibration and ensure the pump is primed before startup. Refer to the Interpump manual for torque specifications on the M8x16 and M8x60 screws and proper seal installation.

Used in

Common applications for Interpump

Shipyard hull cleaning and surface prep — HT100 and W951 paired with dual-lance guns for dockyard service

Petrochemical heat-exchanger descaling — WS-series stainless pumps for neutral-pH cleaning chemistry

Outdoor HVAC condenser mist cooling — ZP180 pumps on rooftop chiller decks

Textile fibre-finishing — W170 and W270 for mist-jet application across drying lines

Municipal water treatment — W951 motor pumps for high-pressure disinfection chemical injection

Spare Parts & Repair Kits

Official SSU2050 parts list — 148 parts, 37 available in catalog

Official Parts List

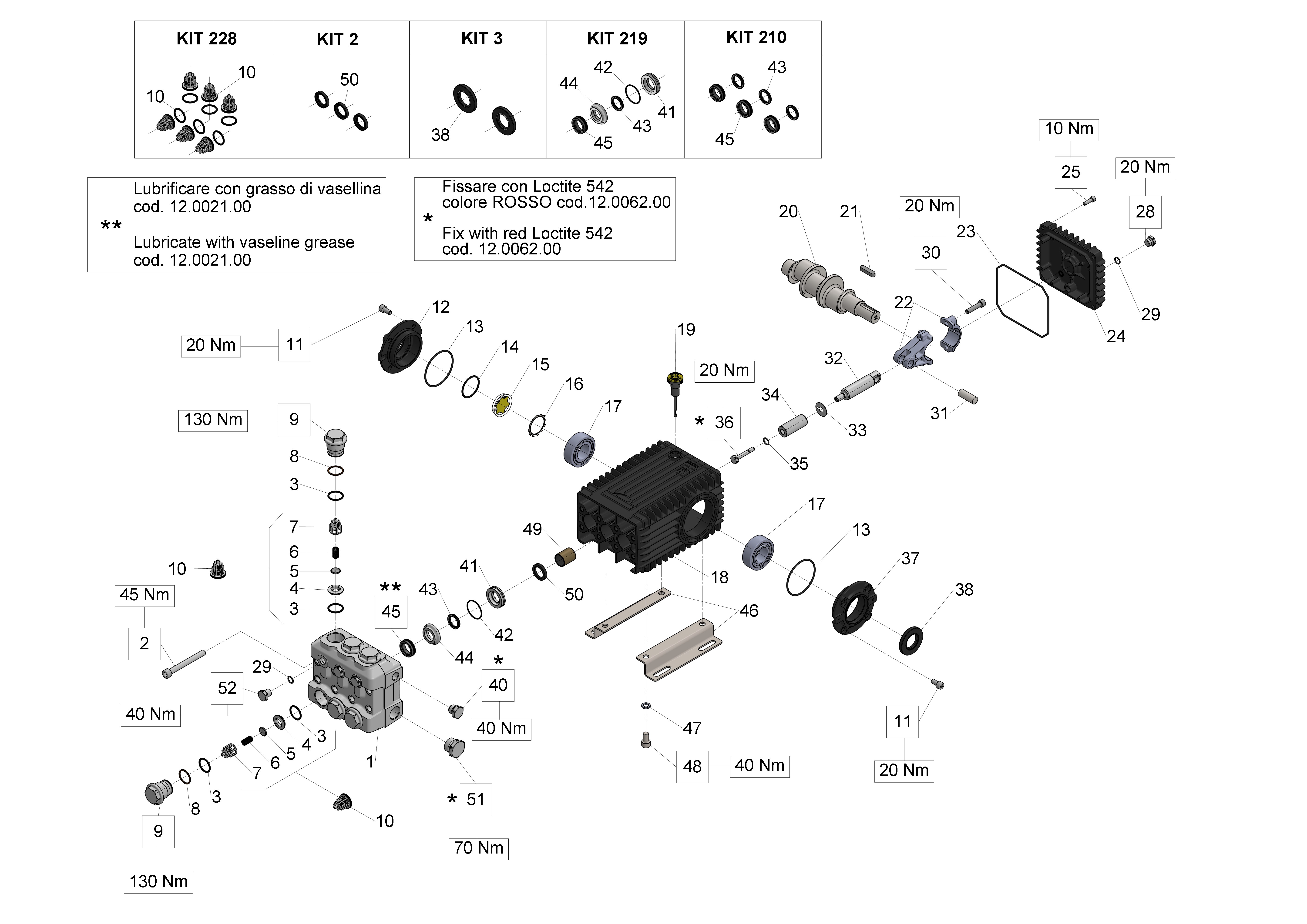

SSU2050 — Male shaft (key) - (plugs) exploded diagram

Repair Kits — Order These for Routine Maintenance

KIT2

KIT 2 OIL SEAL D. 22X32X5,5

34000201×1Available
