Interpump PUMP T1508 L W/VALVE

Interpump T1508 is a 2.2 kW industrial pump with integrated valve, delivering 8 L/min at 150 bar pressure. Operating at 1750 rpm, it suits high-pressure hydraulic and fluid-transfer applications requiring compact…

SKU 3G-ITP-00980

Also listed as: T01508SV000 · T01508SV 000

Brand

Interpump

Item

PUMP T1508 L W/VALVE

Local availability & support — Singapore

Local office: 20 Woodlands Link #09-05, Singapore 738733
Phone: +65 8878 8355
Delivery: Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
Payment: Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
Ships to: Singapore

Technical Specifications

Interpump

Flow Rate

8 L/min

Pressure

150 bar

Power

2.2 kW

Speed

1750 RPM

Weight

5.2 kg

Dimensions

177 mm

Power

3 HP

Flow (US)

2.11 GPM

Pressure

15 MPa

Pressure

2175 PSI

Datasheet Content

T1508




TECHNICAL INFORMATION
Flow (L/min)                        8
Flow (US Gpm)                       2,11
Rotation regime (rpm)               1750
Pressure (MPa)                      15
Pressure (bar)                      150
Pressure (psi)                      2175
Power (hp)                          3
Power (kW)                          2,2
Overall dimensions L x l x h (mm)   177x175x130
Weight (kg)                         5,2




T1508                                             3/21/2026   Page 1 - 11
Copyright INTERPUMP GROUP S.P.A
T1508

     Documents

Male shaft (key) - GAS

Hollow shaft (key) + vers. A - GAS

VH Version




T1508                                3/21/2026   Page 2 - 11
Copyright INTERPUMP GROUP S.P.A

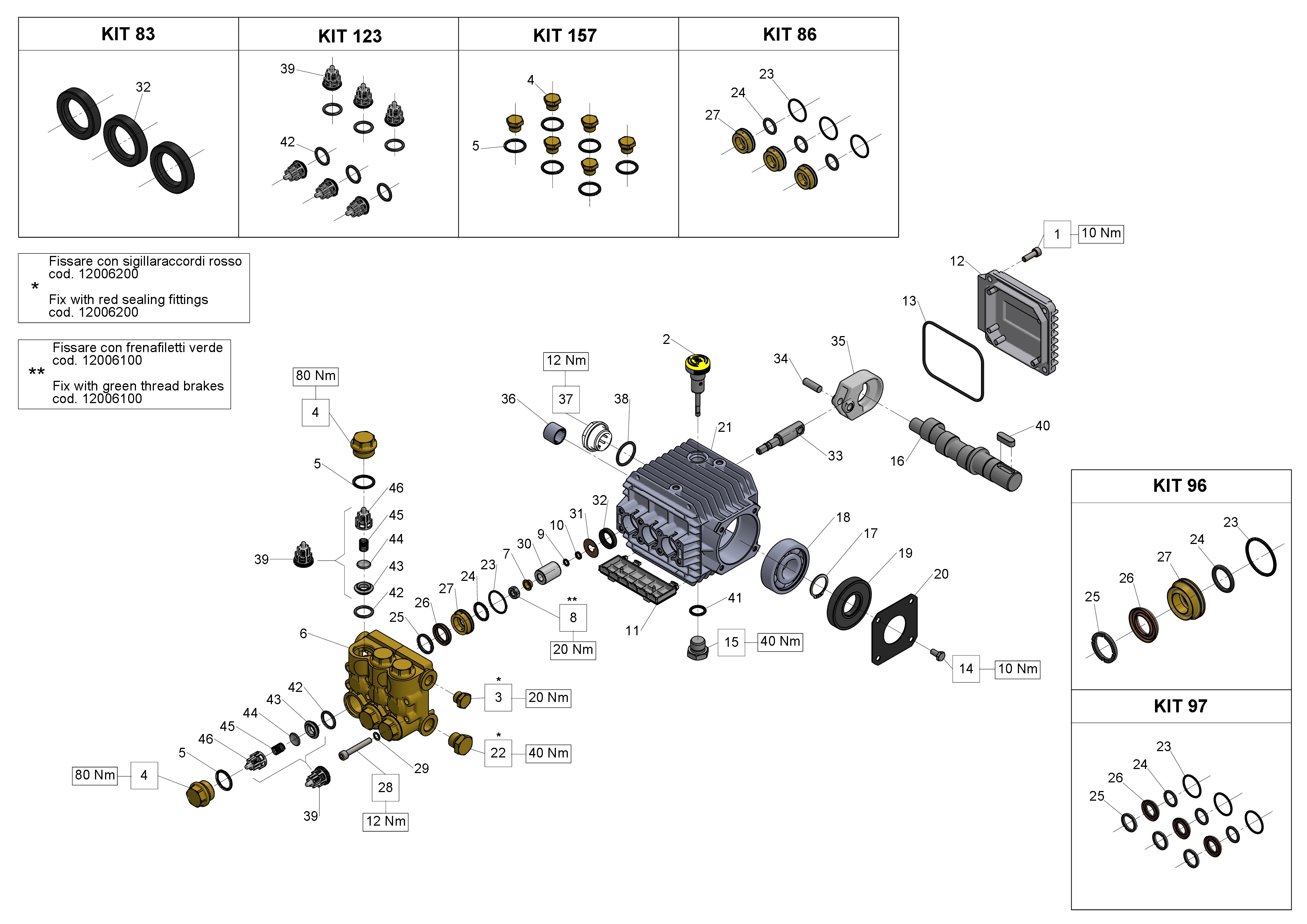

Illustration Male shaft (key) - GAS




T1508                                 3/21/2026   Page 3 - 11
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS

Pos.     Code           Description                 Qty Notes
KIT97    34009701                                   1
KIT96    34009601                                   1
KIT86    34008601                                   1
KIT83    34008301                                   1
KIT157   34015701                                   1
KIT123   34012301       KIT 123 INTAKE/DELIVERY     1
                        VALVE
46       36202551       VALVE CAGE                  6
45       94737600       SPRING D. 9,4X14,8          6
44       36200176       VALVE PLATE                 6
43       36200366       VALVE SEAT                  6
42       90384100       O-RING 17,12X2,62 (3068)    6
41       90383300       O-RING 13,95X2,62 (3056)    1
40       91487700       KEY 8(h9)X7X25 UNI 6604/A   1


39       36711501       INTAKE/DELIVERY VALVE       6
38       90385900       O-RING 25,07X2,62 (3100)    1
37       47221301       OIL SIGHT GLASS ASSY G3/4   1


36       91801400                                   1
35       51030122                                   3
34       97731000                                   3
33       51050056                                   3
32       90156500                                   3
31       96707000                                   3
30       51040009                                   3
29       96693800       WASHER 6,4X10X0,7           8
28       99194300                                   8
27       51080070                                   3
26       90262000       PACKING D. 15X25X5/3,1      3
25       51100051       HEAD RING D. 15             3
24       90383500       O-RING 15,08X2,62 (119)     3
23       90360400       O-RING 25,12X1,78 (2100)    3
22       98210000       PLUG G3/8X13                1
21       51010622                                   1
20       50150074       CRANKCASE COVER             1
19       90164100       OIL SEAL D.25X62X10         1
18       91832800                                   1
17       90063500       CIRCLIP D. 25 UNI 7435      1
16       51020465                                   1
15       98210050       PLUG G3/8x13 TE22           1
14       99180700       SCREW M 6x12 UNI 5739       4




T1508                                                           3/21/2026   Page 4 - 11
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS

Pos.   Code             Description                  Qty Notes

13     90391700                                      1
12     51160022                                      1
11     51209051                                      1
10     90502200         ANTI-EXTRUSION RING          3
9      90357300         O-RING D. 5,28X1,78 (2021)   3


8      92221600         NUT M8X13X5                  3
7      44211570         WASHER D. 8                  3
6      51120041                                      1
5      90384700         O-RING 20,29X2,62(3081)      6
4      98221600                                      6
3      98204100         PLUG G1/4X9                  1
2      98210300         OIL DIP-STICK G3/8X51        1
1      99186700         SCREW M 6x18 UNI 5931        4




T1508                                                            3/21/2026   Page 5 - 11
Copyright INTERPUMP GROUP S.P.A
Illustration Hollow shaft (key) + vers. A - GAS




T1508                                             3/21/2026   Page 6 - 11
Copyright INTERPUMP GROUP S.P.A
Illustration Hollow shaft (key) + vers. A - GAS

Pos.    Code            Description                  Qty Notes
KIT1    34000101        KIT 1 INTAKE/DELIVERY VALVE 1

KIT97   34009701                                     1
KIT96   34009601                                     1
KIT86   34008601                                     1
KIT84   34008401                                     1
KIT83   34008301                                     1
49      99334500                                     4
48      96710400        WASHER 10,5X16X1             4
47      10034422                                     1
46      36200251        VALVE CAGE                   6
45      94737600        SPRING D. 9,4X14,8           6
44      36200176        VALVE PLATE                  6
43      36200366        VALVE SEAT                   6
42      90384100        O-RING 17,12X2,62 (3068)     6
41      90383300        O-RING 13,95X2,62 (3056)     1
39      36703201        VALVE ASSY.                  6
38      90385900        O-RING 25,07X2,62 (3100)     1
37      47221301        OIL SIGHT GLASS ASSY G3/4    1


36      91801400                                     1
35      51030022                                     3
34      97731000                                     3
33      51050056                                     3
32      90156500                                     3
31      96707000                                     3
30      51040009                                     3
29      96693800        WASHER 6,4X10X0,7            12
28      99194300                                     8
27      51080070                                     3
26      90262000        PACKING D. 15X25X5/3,1       3
25      51100051        HEAD RING D. 15              3
24      90383500        O-RING 15,08X2,62 (119)      3
23      90360400        O-RING 25,12X1,78 (2100)     3
22      98210000        PLUG G3/8X13                 1
21      51010622                                     1
19      90165100        ANELLO RAD. 30.0x62.0x10.0   1


18      91837300                                     1
17      90066700        CIRCLIP D. 30 UNI 7435       1
16      51021565                                     1
15      98210050        PLUG G3/8x13 TE22            1




T1508                                                            3/21/2026   Page 7 - 11
Copyright INTERPUMP GROUP S.P.A
Illustration Hollow shaft (key) + vers. A - GAS

Pos.   Code             Description                  Qty Notes

13     90391700                                      1
12     51160022                                      1
11     51209051                                      1
10     90502200         ANTI-EXTRUSION RING          3
9      90357300         O-RING D. 5,28X1,78 (2021)   3


8      92221600         NUT M8X13X5                  3
7      44211570         WASHER D. 8                  3
6      51120041                                      1
5      90384700         O-RING 20,29X2,62(3081)      6
4      98221800                                      6
3      98204100         PLUG G1/4X9                  1
2      98210300         OIL DIP-STICK G3/8X51        1
1      99186700         SCREW M 6x18 UNI 5931        8




T1508                                                            3/21/2026   Page 8 - 11
Copyright INTERPUMP GROUP S.P.A
Illustration VH Version




T1508                             3/21/2026   Page 9 - 11
Copyright INTERPUMP GROUP S.P.A
Illustration VH Version

Pos.     Code           Description                    Qty Notes
KIT102   34010201                                      1
KIT94    34009401       KIT 94 CHIMJET                 1
                        KR/CONTROLSET
135      92982800       WING NUT G3/4                  1
134      36256970                                      1
133      90382800       O-RING 12,37X2,62 (3050)       1
132      92892500       FILTER D. 12X35                1
131      36318251       INLET NIPPLE G 3/4             1
130      90384100       O-RING 17,12X2,62 (3068)       1
127      36256670       CHEM. HOSE BARB FITTING        1
126      90357000       O-RING 4,48X1,78 (2018)        2
125      36256551       CHEM. REGULATION KNOB          1
124      36256470       INJECTOR SHUTTER               1
123      36256370       CHEM. INJECTOR VALVE SEAT      1


122      90358500       O-RING 10,82X1,78 (2043)       1
121      36318151       INJECTOR BODY                  1
120      90358000       O-RING 8,73X1,78 SPEC. (108)   1


119      94738300       SPRING D.9,75X10               1
118      90357200       O-RING 5,28X1,78 SPEC. (2021) 1


117      97478200       BALL 7/32(5,556) STAINLESS     1


116      94821700       TAPER SPRING D.4,3X7,3X11      1


115      90358200       O-RING 9,25X1,78 (2037)        1
114      10007666       NOZZLE DIAM. 2,2               1
114      10015166       NOZZLE D. 2.0                  1
114      10043770                                      1
109      98204100       PLUG G1/4X9                    2
108      98205700       PLUG M14X1,5X9                 1
107      51120541                                      1
107      51120141                                      1
105      10031870                                      1
105      10007870       NIPPLE D. 3 G3/8               1
105      10014770       NIPPLE G3/8 / M22X1,5 BORE     1
                        D.3
103      36316466       CONTROLSET W1 VALVE SEAT       1
102      99150900       SCREW M5X7.5 STAINLESS         1
101      36319066       SPHERICAL VALVE                1
100      90507500                                      1
99       90358900                                      1
98       36316570                                      1




T1508                                                              3/21/2026   Page 10 - 11
Copyright INTERPUMP GROUP S.P.A
Illustration VH Version

Pos.   Code             Description                    Qty Notes

97     90502500         ANTI-EXTRUSION RING (OR 106) 1


96     36318970                                        1
95     90382200         O-RING 9,92X2,62 SPEC. (112)   3


94     90506500         ANTI-EXTRUSION RING (OR 112) 2


93     36333151                                        1
92     90357500         O-RING 6,75X1,78 SPEC. (2106) 3


91     94733200                                        1
90     36318870                                        1
89     90384700         O-RING 20,29X2,62(3081)        1
88     36318470                                        1
87     94743600         SPRING Dm 15X35                1
86     36316970         SPRING PLATE                   1
85     36318570         PRESSURE REG.SCREW             1
84     90359800         O-RING 20,35X1,78 (2081)       1
83     99305400         SCREW M8X20 UNI 5923 12.9      1


82     92221800         NUT M8X1,25X5X13 UNI 5589      1


81     36318751         PRESSURE REGULATION KNOB       1
55     90383200         O-RING 13,95X2,62 SPEC. (3056) 1




T1508                                                              3/21/2026   Page 11 - 11
Copyright INTERPUMP GROUP S.P.A

Technical Documents

(1)

Technical Data Sheet

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

Interpump Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

What is the Interpump T1508 pump used for?

The Interpump T1508 is a 2.2 kW industrial pump with integrated valve, delivering 8 L/min at 150 bar. It is designed for high-pressure hydraulic and fluid-transfer applications in industries such as manufacturing, cleaning, and process engineering where compact, reliable performance is required.

What are the specifications of the Interpump T1508 pump?

The Interpump T1508 pump delivers 8 L/min at 150 bar (15 MPa, 2175 psi) with a rotation regime of 1750 rpm. It has a power rating of 2.2 kW (3 hp), weighs 5.2 kg, and measures 177x175x130 mm. The pump includes an integrated intake/delivery valve and is available with male or hollow shaft options.

Where to buy the Interpump T1508 pump in Singapore?

3G Electric, established in 1990, sources and delivers the Interpump T1508 pump to Singapore. We handle logistics, customs clearance, and local technical support, ensuring you receive the genuine Interpump pump with integrated valve for your high-pressure fluid applications.

How to maintain the Interpump T1508 pump?

Regular maintenance of the Interpump T1508 includes checking oil level via the sight glass and dip-stick, inspecting O-rings and seals for wear, and replacing the intake/delivery valve kit (KIT123) as needed. Always follow Interpump’s guidelines for torque specifications and use genuine parts to ensure reliable operation at 150 bar.

Used in

Common applications for Interpump

Shipyard hull cleaning and surface prep — HT100 and W951 paired with dual-lance guns for dockyard service

Petrochemical heat-exchanger descaling — WS-series stainless pumps for neutral-pH cleaning chemistry

Outdoor HVAC condenser mist cooling — ZP180 pumps on rooftop chiller decks

Textile fibre-finishing — W170 and W270 for mist-jet application across drying lines

Municipal water treatment — W951 motor pumps for high-pressure disinfection chemical injection

Spare Parts & Repair Kits

Official T1508 parts list — 96 parts, 30 available in catalog

Official Parts List

T1508 — Male shaft (key) - GAS exploded diagram

Repair Kits — Order These for Routine Maintenance

KIT123

KIT 123 INTAKE/DELIVERY VALVE

34012301×1Available

Interpump PUMP T1508 L W/VALVE

Local availability & support — Singapore

Technical Specifications

Datasheet Content

Technical Documents

Need installation or engineering help?

Ask a question

Product Description

Frequently Asked Questions

Used in

Spare Parts & Repair Kits

Interpump Products

You might also need
