InterpumpPumps & Compressors

Interpump PUMP T2530 R

SKU 3G-ITP-01006

Also listed as: T02530000 · T02530 000

Brand

Interpump

Item

PUMP T2530 R

Local availability & support — Singapore

Local office: 20 Woodlands Link #09-05, Singapore 738733
Phone: +65 8878 8355
Delivery: Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
Payment: Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
Ships to: Singapore

Technical Specifications

Interpump

Flow Rate

30 L/min

Pressure

250 bar

Power

14.7 kW

Speed

1750 RPM

Weight

18.5 kg

Dimensions

340.5 mm

Power

20 HP

Flow (US)

7.92 GPM

Pressure

25 MPa

Pressure

3600 PSI

Datasheet Content

SS3B2021




TECHNICAL INFORMATION
Flow (L/min)                        21
Flow (US Gpm)                       5,55
Rotation regime (rpm)               1450
Pressure (MPa)                      20
Pressure (bar)                      200
Pressure (psi)                      2900
Power (hp)                          10,9
Power (kW)                          8,02
Overall dimensions L x l x h (mm)   273,5x223x152,5
Weight (kg)                         9,5




SS3B2021                                              3/21/2026   Page 1 - 5
Copyright INTERPUMP GROUP S.P.A
SS3B2021

     Documents

Male shaft (key) - (plugs) - OUT OF PRODUCTION




SS3B2021                                         3/21/2026   Page 2 - 5
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - (plugs) - OUT OF PRODUCTION




SS3B2021                                         3/21/2026    Page 3 - 5
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - (plugs) - OUT OF PRODUCTION

Pos.     Code           Description                    Qty Notes
KIT353   34035301       KIT 353 CPL. SEAL D. 22 S. 59 SS1

KIT352   34035201       KIT 352 PACKING D. 22 S. 59 SS 1

KIT349   34034901       KIT 349*INLET VALVE CAPS S.59 1
                        SS
KIT341   34034101       KIT 341 INLET VALVES S.53SS    1

KIT336   34033601       KIT 336 OUTLET VALVE PLUG      1
                        S.53 SS
KIT334   34033401       KIT 334 OUTLET VALVES S.53SS 1

KIT271   34027101       KIT 271 OIL SEAL D.15          1
                        58/59 SERIES

58       50200074       PUMP FOOT                      2
57       96701600       WASHER 8,4                     4
56       99303700       SCREW M 8x16-5739              4
55       91489200       KEY 8(h9)X7X35 UNI 6604/A      1


54       90164800       OIL SEAL 30x55x7               1
53       47151022       OPEN SIDE COVER (47-66)        1
52       90358500       O-RING 10,82X1,78 (2043)       1
51       98204000       PLUG G1/4X9 S.S.               1
50       59160022       REAR CRANKCASE COVER           1
49       90392200       O-RING D.133.02X 2,62(3525)    1


48       98211300       ASTA LIVELLO OLIO G3/8x54 D.4 1


47       97567800       SHIM D.74,5X104X0,1            1
47       97568000       SHIM D.74.5X104X0.3            1
46       90391300       O-RING 67,95X2,62 (3268)       2
45       91837500       TAPER BEARING                  2
44       99303800       SCREW M8X16 - STAINLESS        12
43       90075600       CIRCLIP D.45 (ZJ45)            1
42       59020135       CRANKSHAFT C. 13               1
41       70211801       OIL SIGHT GLASS                1
40       90387700       O-RING 39,34X2,62 (3156)       1
39       47151222       SIDE CRANKCASE COVER FOR       1
                        OIL GAUGE
38       99309900       SCREW M 8x35 UNI 5931          6
37       59030001       CONNECTING ROD COMPLETE        3
36       97739900       GUDGEON PIN D.14X34            3
35       59050166       PISTON GUIDE - S.S.            3
34       90156550       OIL SEAL D.15X24X5/7           3
33       58210451       PROTECTION                     1




SS3B2021                                                           3/21/2026   Page 4 - 5
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - (plugs) - OUT OF PRODUCTION

Pos.   Code             Description                   Qty Notes

32     59010022         PUMP CRANKCASE                1
31     59211082         SPONGE GASKET D.3X103         1
30     96699000         WASHER D.7.5X23X0.5           3
29     98218000         PLUG G 1/2 X 10 STAINLESS     1


28     98210066         PLUG G 3/8 X 13 STAINLESS     1


27     59211656         RING FOR PACKING D.22 * SS    3


26     90230000         L.P. SEAL D.22 (HT)           3
24     90361200         O-RING 31,47X1,78 (2125)      3
23     59606501         PACKING RETAINER D.           3
                        22+SLEEVE S.S.
22     90231200         H.P. SEAL D.22X32X10 (66HT)   3


21     99317600         SCREW M08x60 5931 A2-70       8
20     98213720         PLUG M18X1,5X10 D23 F12 SS    3


19     90359300         O-RING 15,60X1,78 (2062)      3
18     36724501         OUTLET VALVE S.53 SS          3
17     36211151         VALVE CAGE                    3
16     94733300         SPRING D.6.2x10.5 S.S.        3
15     36211276         SPHERICAL VALVE               3
14     53211166         VALVE SEAT - S.S.             3
13     90367400         O-RING D. 12X2 (120-20)       3
12     59040109         PISTON D.22X42                3
11     96690500         WASHER D.5X11.5x0.4           3
                        INOX+FKM58/59/63HT
10     99169000         SCREW M05X55 SPEC. A2-70      3
9      98222900         PLUG M24X1,5X17 S.S.          3
8      90384700         O-RING 20,29X2,62(3081)       3
7      36713001         VALVE ASSY (63 SS)            3
6      90384100         O-RING 17,12X2,62 (3068)      3
5      36203666         VALVE SEAT STAINLESS (63SS) 3

4      36200176         VALVE PLATE                   3
3      94737300         SPRING D.9.4X14.8 - S.S.      3
2      36202551         VALVE CAGE                    3
1      59122336         MANIFOLD FOR PISTON D. 22     1
                        S.S.




SS3B2021                                                          3/21/2026   Page 5 - 5
Copyright INTERPUMP GROUP S.P.A

Technical Documents

(1)

Technical Data Sheet

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

Interpump Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

The Interpump T2530 R is a 20 hp industrial pump delivering 30 l/min at 250 bar, designed for high-pressure hydraulic systems in manufacturing and mobile equipment applications. Operating at 1750 rpm with robust construction, it suits demanding industrial circuits requiring reliable, compact pressure delivery.

Frequently Asked Questions

What is the Interpump T2530 R pump used for?

The Interpump T2530 R is a 20 hp industrial pump used for high-pressure hydraulic systems in manufacturing and mobile equipment applications. It delivers 30 l/min at 250 bar and operates at 1750 rpm, making it suitable for demanding industrial circuits requiring reliable, compact pressure delivery.

What are the specifications of the Interpump T2530 R pump?

The Interpump T2530 R pump has a power rating of 20 hp (14.7 kW), delivers 30 l/min (7.92 US gpm) at 250 bar (3600 psi), and operates at 1750 rpm. It weighs 18.5 kg and has overall dimensions of 340.5 mm. The pump is built by Interpump Group S.p.A. for robust industrial use.

Where to buy the Interpump T2530 R pump in Singapore?

You can source the Interpump T2530 R pump in Singapore through 3G Electric, an established industrial equipment distributor since 1990. We handle logistics, customs clearance, and delivery to your site, ensuring the pump meets your high-pressure hydraulic system requirements with local technical support.

How to maintain the Interpump T2530 R pump?

To maintain the Interpump T2530 R pump, regularly inspect seals and valves using genuine Interpump service kits such as KIT353 (seal) and KIT352 (packing). Check oil level via the sight glass and replace oil seals as needed. Follow the manufacturer's guidelines for pressure and flow limits to ensure reliable operation.

Used in

Common applications for Interpump

Shipyard hull cleaning and surface prep — HT100 and W951 paired with dual-lance guns for dockyard service

Petrochemical heat-exchanger descaling — WS-series stainless pumps for neutral-pH cleaning chemistry

Outdoor HVAC condenser mist cooling — ZP180 pumps on rooftop chiller decks

Textile fibre-finishing — W170 and W270 for mist-jet application across drying lines

Municipal water treatment — W951 motor pumps for high-pressure disinfection chemical injection

Spare Parts & Repair Kits

Official T2530 parts list — 161 parts, 55 available in catalog

Official Parts List

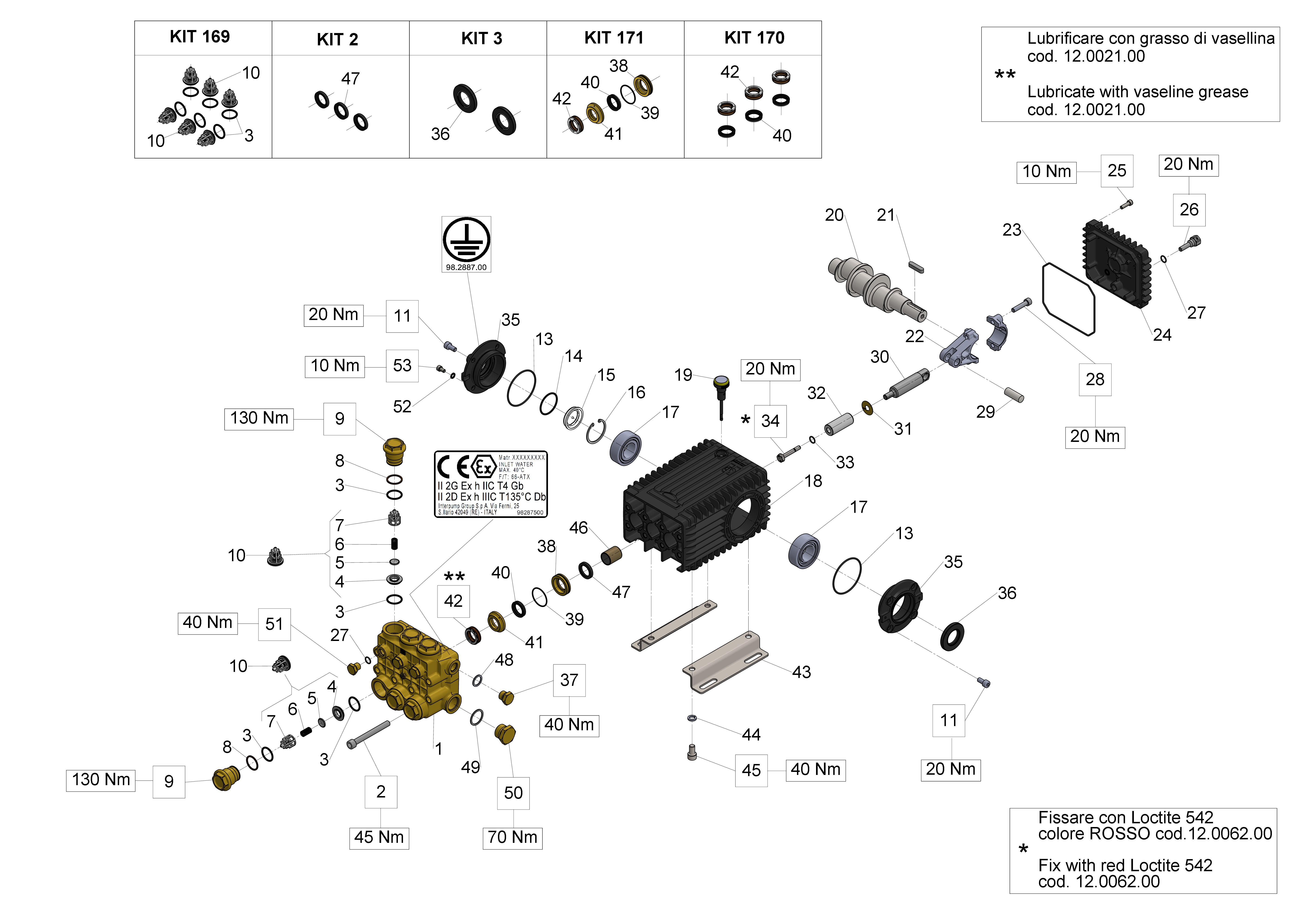

T2530 — Male shaft (key) exploded diagram

Repair Kits — Order These for Routine Maintenance

KIT2

KIT 2 OIL SEAL D. 22X32X5,5

34000201×1Available
