Interpump PUMP VHT5808 R

The Interpump VHT5808 R is an industrial gear pump delivering 8 L/min at 170 bar, designed for high-pressure hydraulic applications. Operating at 1450 rpm with 2.6 kW power, it fits compact systems requiring reliable…

SKU 3G-ITP-01239

Also listed as: VHT5808000 · VHT5808 000

Brand

Interpump

Item

PUMP VHT5808 R

Local availability & support — Singapore

Local office: 20 Woodlands Link #09-05, Singapore 738733
Phone: +65 8878 8355
Delivery: Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
Payment: Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
Ships to: Singapore

Technical Specifications

Interpump

Flow Rate

8 L/min

Pressure

170 bar

Power

2.6 kW

Speed

1450 RPM

Weight

7 kg

Dimensions

241.5 mm

Power

3.53 HP

Flow (US)

2.11 GPM

Pressure

17 MPa

Pressure

2465 PSI

Datasheet Content

VHT5808




TECHNICAL INFORMATION
Flow (L/min)                        8 / 10
Flow (US Gpm)                       2,11 / 2,64
Rotation regime (rpm)               1450 / 1750
Pressure (MPa)                      17
Pressure (bar)                      170
Pressure (psi)                      2465
Power (hp)                          3,53 / 4,4
Power (kW)                          2,6 / 3,3
Overall dimensions L x l x h (mm)   241,5x215x129,5
Weight (kg)                         7




VHT5808                                               3/21/2026   Page 1 - 8
Copyright INTERPUMP GROUP S.P.A
VHT5808

     Documents

Male shaft (key)

Hollow shaft (key) Ø28 - vers. B




VHT5808                            3/21/2026   Page 2 - 8
Copyright INTERPUMP GROUP S.P.A

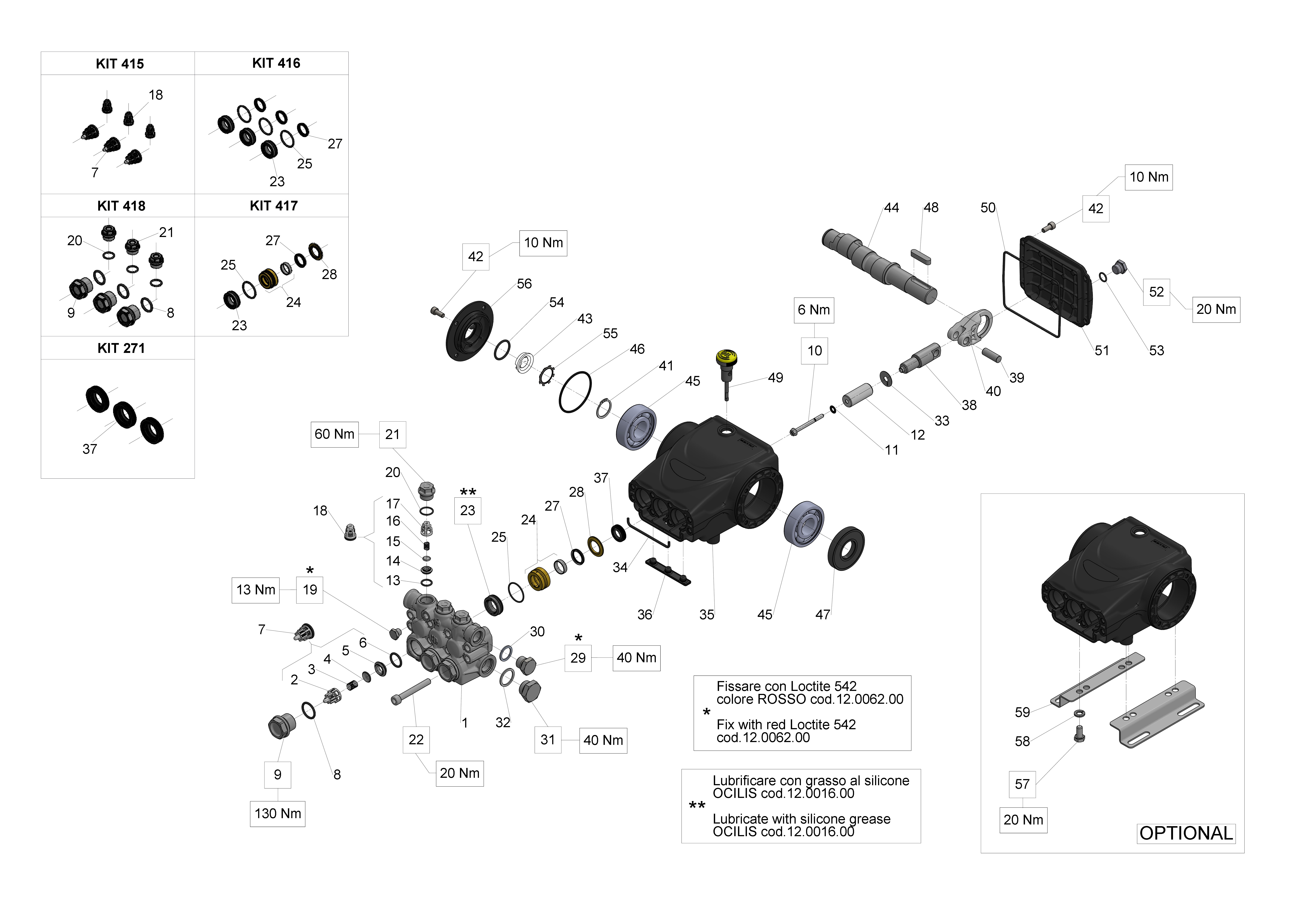

Illustration Male shaft (key)




VHT5808                           3/21/2026   Page 3 - 8
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key)

Pos.     Code           Description                    Qty Notes
KIT418   34041801       KIT 418*GR. TAPPI ASP.E MAND. 1
                        (58.VHT))
KIT417   34041701       KIT 417*TENUTA COMPLETA        1
                        D.18 (58.VHT)
KIT416   34041601       KIT 416*ANELLI DI TENUTA D.18 1
                        (58.VHT)
KIT415   34041501       KIT 415*GR. VALV. ASPIRAZ. E   1
                        MAND. (58.VHT)

KIT271   34027101       KIT 271 OIL SEAL D.15          1
                        58/59 SERIES

59       50200074       PUMP FOOT                      2
58       96701600       WASHER 8,4                     4
57       99303700       SCREW M 8x16-5739              4
56       58150122       COPERCHIO LATERALE             1
55       90067100       CIRCLIP ZJ30                   1
54       90385900       O-RING 25,07X2,62 (3100)       1
53       90358500       O-RING 10,82X1,78 (2043)       1
52       98204250       PLUG G1/4"x12                  1
51       58160022       REAR CRANKCASE COVER           1
50       90392550       O-RING D.113.97X2.62           1
49       98210500       OIL DIPSTICK G3/8x51 D.7       1
48       91489200       KEY 8(h9)X7X35 UNI 6604/A      1


47       90164100       OIL SEAL D.25X62X10            1
46       90389800       O-RING 56,82X2,62 (3225)       1
45       91833100       BALL BEARING 6305 SKF          2
44       63020865       CRANKSHAFT C. 8 D. 24          1
43       53210851       OIL LEVEL GAUGE                1
42       99183700       SCREW M 6x14 UNI 5931          8
41       90063500       CIRCLIP D. 25 UNI 7435         1
40       58030022       CONNECTING ROD                 3
39       97734000       CONNECTING-ROD PIN             3
                        D.10X29,5
38       58050066       PISTON GUIDE                   3
37       90156550       OIL SEAL D.15X24X5/7           3
36       58210451       PROTECTION                     1
35       58010022       PUMP CRANKCASE                 1
34       58210582       SPONGE GASKET D.3X94           1
33       96699000       WASHER D.7.5X23X0.5            3
32       96751400       WASHER 21,5X27X1,5             1
31       98217900       PLUG G 1/2X10 NICKEL           1
30       96738000       WASHER 17,5X23X1,5             1
29       98209900       PLUG G. 3/8X13 NICKEL          1




VHT5808                                                            3/21/2026   Page 4 - 8
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key)

Pos.   Code             Description                  Qty Notes

28     58211270         RING FOR PACKING D.18 HT     3
27     90220000         SEAL D. 18X22,5 L.P.         3
25     90360650         OR D. 26.70x1.78 HNBR 70SH   3
                        2106
24     58606401         GR. SUPP. GUARN + BOCCOLA    3
                        D.18 OT HT
23     90221000         SEAL D. 18X28X10 H.P.        3
22     99317500         SCREW M 8x60 UNI 5931        8
21     98213750         PLUG M18X1,5X10 D.23 (NICK.) 3


20     90359350         OR D. 15.60x1.78 HNBR 70SH   3
                        2062
19     98196700         PLUG G 1/8 X 8 NICKEL        1
18     36729801         GRUPPO VALVOLA MANDATA       3
                        (58.VHT)
17     36211151         VALVE CAGE                   3
16     94733300         SPRING D.6.2x10.5 S.S.       3
15     36211276         SPHERICAL VALVE              3
14     36211366         VALVE SEAT                   3
13     90367450         OR D. 12.00x2.00 HNBR 70SH   3


12     58040209         PISTON D.18X42               3
11     96690500         WASHER D.5X11.5x0.4          3
                        INOX+FKM58/59/63HT
10     99169000         SCREW M05X55 SPEC. A2-70     3
9      98222500         VALVE CAP M24X1,5X17 NICKEL 3


8      90384750         O-RING D. 20.29x2.62 HNBR    3
                        90SH 3081
7      36726201         INLET/OUTLET VALVE (60-63    3
                        VHT)
6      90384150         O-RING D. 17.13x2.62 HNBR    3
                        70SH 3068
5      36200366         VALVE SEAT                   3
4      36200176         VALVE PLATE                  3
3      94737600         SPRING D. 9,4X14,8           3
2      36202551         VALVE CAGE                   3
1      58120741         MANIFOLD FOR PISTON D. 18    1
                        NICKEL PL.




VHT5808                                                          3/21/2026   Page 5 - 8
Copyright INTERPUMP GROUP S.P.A
Illustration Hollow shaft (key) Ø28 - vers. B




VHT5808                                         3/21/2026   Page 6 - 8
Copyright INTERPUMP GROUP S.P.A
Illustration Hollow shaft (key) Ø28 - vers. B

Pos.     Code           Description                    Qty Notes
KIT418   34041801       KIT 418*GR. TAPPI ASP.E MAND. 1
                        (58.VHT))
KIT417   34041701       KIT 417*TENUTA COMPLETA        1
                        D.18 (58.VHT)
KIT416   34041601       KIT 416*ANELLI DI TENUTA D.18 1
                        (58.VHT)
KIT415   34041501       KIT 415*GR. VALV. ASPIRAZ. E   1
                        MAND. (58.VHT)

KIT271   34027101       KIT 271 OIL SEAL D.15          1
                        58/59 SERIES

61       99191200       SCREW M 6x30 UNI 5931          4
60       10049422       FLANGE FOR EL.MOT.B3B14        1
                        (EUR)
59       96701400       WASHER 8,4X13X0,8              4
58       99306700       SCREW M 8x25 UNI 5739          4
57       90409700       O-RING 55,56X3,53 (159)        1
56       91856800       NEEDLE BEARING DHK 4520        1
55       58150122       COPERCHIO LATERALE             1
54       90067100       CIRCLIP ZJ30                   1
53       90385900       O-RING 25,07X2,62 (3100)       1
52       90358500       O-RING 10,82X1,78 (2043)       1
51       98204250       PLUG G1/4"x12                  1
50       58160022       REAR CRANKCASE COVER           1
49       90392550       O-RING D.113.97X2.62           1
48       98210500       OIL DIPSTICK G3/8x51 D.7       1
47       90169000       OIL SEAL D. 45X62X8            1
46       90389800       O-RING 56,82X2,62 (3225)       1
45       91833100       BALL BEARING 6305 SKF          1
44       63024865       CRANKSHAFT C.8 D.28mm          1
                        HOLLOW
43       53210851       OIL LEVEL GAUGE                1
42       99183700       SCREW M 6x14 UNI 5931          8
41       90063500       CIRCLIP D. 25 UNI 7435         1
40       58030022       CONNECTING ROD                 3
39       97734000       CONNECTING-ROD PIN             3
                        D.10X29,5
38       58050066       PISTON GUIDE                   3
37       90156550       OIL SEAL D.15X24X5/7           3
36       58210451       PROTECTION                     1
35       58010022       PUMP CRANKCASE                 1
34       58210582       SPONGE GASKET D.3X94           1
33       96699000       WASHER D.7.5X23X0.5            3
32       96751400       WASHER 21,5X27X1,5             1




VHT5808                                                            3/21/2026   Page 7 - 8
Copyright INTERPUMP GROUP S.P.A
Illustration Hollow shaft (key) Ø28 - vers. B

Pos.   Code             Description                  Qty Notes

31     98217900         PLUG G 1/2X10 NICKEL         1
30     96738000         WASHER 17,5X23X1,5           1
29     98209900         PLUG G. 3/8X13 NICKEL        1
28     58211270         RING FOR PACKING D.18 HT     3
27     90220000         SEAL D. 18X22,5 L.P.         3
25     90360650         OR D. 26.70x1.78 HNBR 70SH   3
                        2106
24     58606401         GR. SUPP. GUARN + BOCCOLA    3
                        D.18 OT HT
23     90221000         SEAL D. 18X28X10 H.P.        3
22     99317500         SCREW M 8x60 UNI 5931        8
21     98213750         PLUG M18X1,5X10 D.23 (NICK.) 3


20     90359350         OR D. 15.60x1.78 HNBR 70SH   3
                        2062
19     98196700         PLUG G 1/8 X 8 NICKEL        1
18     36729801         GRUPPO VALVOLA MANDATA       3
                        (58.VHT)
17     36211151         VALVE CAGE                   3
16     94733300         SPRING D.6.2x10.5 S.S.       3
15     36211276         SPHERICAL VALVE              3
14     36211366         VALVE SEAT                   3
13     90367450         OR D. 12.00x2.00 HNBR 70SH   3


12     58040209         PISTON D.18X42               3
11     96690500         WASHER D.5X11.5x0.4          3
                        INOX+FKM58/59/63HT
10     99169000         SCREW M05X55 SPEC. A2-70     3
9      98222500         VALVE CAP M24X1,5X17 NICKEL 3


8      90384750         O-RING D. 20.29x2.62 HNBR    3
                        90SH 3081
7      36726201         INLET/OUTLET VALVE (60-63    3
                        VHT)
6      90384150         O-RING D. 17.13x2.62 HNBR    3
                        70SH 3068
5      36200366         VALVE SEAT                   3
4      36200176         VALVE PLATE                  3
3      94737600         SPRING D. 9,4X14,8           3
2      36202551         VALVE CAGE                   3
1      58120741         MANIFOLD FOR PISTON D. 18    1
                        NICKEL PL.




VHT5808                                                          3/21/2026   Page 8 - 8
Copyright INTERPUMP GROUP S.P.A

Technical Documents

(1)

Industrial_Pumps__High_Temperature_Versions_Series_58_VHT___VHT5808__INTPETH03IPL202632115446974

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

Interpump Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

What is the Interpump VHT5808 R pump used for?

The Interpump VHT5808 R is an industrial gear pump designed for high-pressure hydraulic applications. It delivers 8 L/min at 170 bar and operates at 1450 rpm, making it suitable for compact hydraulic systems that require reliable pressure performance in industries such as manufacturing and mobile equipment.

What are the specifications of the Interpump VHT5808 R pump?

The Interpump VHT5808 R pump delivers 8 L/min flow at 170 bar pressure, with a rotation regime of 1450 rpm and power requirement of 2.6 kW. It weighs 7 kg and has overall dimensions of 241.5 mm x 215 mm x 129.5 mm. The pump features a male shaft with key and is built by Interpump Group.

Where to buy the Interpump VHT5808 R pump in Singapore?

3G Electric sources and delivers the Interpump VHT5808 R pump to Singapore. As an established industrial equipment distributor since 1990, we handle logistics, customs clearance, and local delivery. Contact our team for pricing and lead time on this high-pressure hydraulic gear pump.

How to install the Interpump VHT5808 R pump?

Install the Interpump VHT5808 R pump on a rigid base, aligning the shaft coupling carefully to avoid stress. Use the provided key for shaft connection and ensure proper oil level via the dipstick. Follow Interpump's manual for torque specifications on mounting screws and seal installation to prevent leaks.

Used in

Common applications for Interpump

Shipyard hull cleaning and surface prep — HT100 and W951 paired with dual-lance guns for dockyard service

Petrochemical heat-exchanger descaling — WS-series stainless pumps for neutral-pH cleaning chemistry

Outdoor HVAC condenser mist cooling — ZP180 pumps on rooftop chiller decks

Textile fibre-finishing — W170 and W270 for mist-jet application across drying lines

Municipal water treatment — W951 motor pumps for high-pressure disinfection chemical injection

Spare Parts & Repair Kits

Official VHT5808 parts list — 124 parts, 61 available in catalog

Official Parts List

VHT5808 — Male shaft (key) exploded diagram

Repair Kits — Order These for Routine Maintenance

KIT271

KIT 271 OIL SEAL D.15 58/59 SERIES

34027101×1Available

Interpump PUMP VHT5808 R

Local availability & support — Singapore

Technical Specifications

Datasheet Content

Technical Documents

Need installation or engineering help?

Ask a question

Product Description

Frequently Asked Questions

Used in

Spare Parts & Repair Kits

Recommended Spare Parts

Interpump Products

You might also need
