Interpump PUMP VHT5813 R

Interpump PUMP VHT5813 R is an industrial positive displacement pump delivering 13 L/min at 170 bar, rated 4.22 kW at 1450 rpm. This compact unit weighs 7 kg and serves high-pressure hydraulic systems requiring…

SKU 3G-ITP-01243

Also listed as: VHT5813000 · VHT5813 000

Brand

Interpump

Item

PUMP VHT5813 R

Local availability & support — Singapore

Local office: 20 Woodlands Link #09-05, Singapore 738733
Phone: +65 8878 8355
Delivery: Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
Payment: Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
Ships to: Singapore

Technical Specifications

Interpump

Flow Rate

13 L/min

Pressure

170 bar

Power

4.22 kW

Speed

1450 RPM

Weight

7 kg

Dimensions

241.5 mm

Power

5.74 HP

Flow (US)

3.43 GPM

Pressure

17 MPa

Pressure

2465 PSI

Datasheet Content

SS71170




TECHNICAL INFORMATION
Flow (L/min)                        170
Flow (US Gpm)                       44,9
Rotation regime (rpm)               900
Pressure (MPa)                      10
Pressure (bar)                      100
Pressure (psi)                      1450
Power (hp)                          44,2
Power (kW)                          32,5
Overall dimensions L x l x h (mm)   526x367x252,5
Weight (kg)                         68




SS71170                                             3/21/2026   Page 1 - 6
Copyright INTERPUMP GROUP S.P.A
SS71170

     Documents

Male shaft (key) - GAS




SS71170                           3/21/2026   Page 2 - 6
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS




SS71170                               3/21/2026   Page 3 - 6
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS

Pos.      Code          Description                  Qty Notes
KIT2155   34215501                                   1
KIT2154   34215401                                   1
KIT2135   34213501                                   1
KIT2044   34204401                                   1
KIT2043   34204301                                   1
KIT2042   34204201                                   1
KIT2033   34203301                                   1
65        71050866                                   3
64        90911000                                   3
63        90924000                                   3
63        90922200      UPPER HALF CONROD BUSHING 3
                        +0.5 (BIG END) S.70

63        90922100      UPPER HALF CONROD BUSHING 3
                        +0.25 (BIG END) S.70

62        90924300                                   3
62        90922500      LOWER HALF CONROD BUSHING 3
                        +0.50 (BIG END) S.70

62        90922400      LOWER HALF CONROD BUSHING 3
                        +0.25 (BIG END) S.70

61        71225951      PLUG CAP                     3
60        71225851                                   6
58        71223074      STAFFA DI SOLLEVAMENTO       1
57        99426600      VITE TE M12X25-UNI5739 ZINC. 1


56        71030701                                   3
55        90352800      O-RING D. 29.00x1.50 NBR 70SH 3


54        99199400                                   6
53        94754000      SPRING D.24.7X27             3
52        36715501                                   3
51        36715601                                   3
50        90524000                                   6
49        36207256                                   6
48        36209602                                   6
47        36208651      INNER VALVE GUIDE            6
46        94755000                                   3
45        36204505      VALVE CAGE SS (71 SERIES)    6


44        90388900                                   12
43        90525000                                   6
42        71223766                                   6




SS71170                                                          3/21/2026   Page 4 - 6
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS

Pos.   Code             Description                Qty Notes

41     71223636                                    2
40     99429500         SCREW M12X35 UNI5931 12.31 14
                        DACR.
39     99448200                                    8
38     71127536                                    1
36     71212366                                    2
35     90246000                                    3
34     90389100                                    3
33     71223966                                    3
32     90245000                                    3
31     71224066                                    3
30     90079700                                    3
29     71223856                                    3
28     90367100                                    3
27     71040509                                    3
26     96714000                                    3
25     90167800                                    3
24     97743000                                    3
23     71050715                                    3
22     90060600                                    1
21     71606601                                    3
20     90170000                                    1
19     71150022                                    1
18     91500000                                    1
17     71020035                                    1
16     99313800                                    6
15     98206000                                    4
14     90400000                                    1
13     71160022                                    1
12     98212000                                    1
11     98218100                                    4
10     90384100         O-RING 17,12X2,62 (3068)   6
9      99186800                                    20
8      71150122                                    1
7      90387700         O-RING 39,34X2,62 (3156)   1
6      70211801         OIL SIGHT GLASS            1
5      90075600         CIRCLIP D.45 (ZJ45)        1
4      70220381         SHIM 0.25 MM.              1
4      70220081         SHIM 0.1 MM.               1
3      90391800                                    2
2      91859000                                    2




SS71170                                                        3/21/2026   Page 5 - 6
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS

Pos.   Code             Description   Qty Notes

1      71010022                       1




SS71170                                           3/21/2026   Page 6 - 6
Copyright INTERPUMP GROUP S.P.A

Technical Documents

(1)

Industrial_Pumps__High_Temperature_Versions_Series_58_VHT___VHT5813__INTPETH03IPL2026321154548174

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

Interpump Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

What is the Interpump PUMP VHT5813 R used for?

The Interpump PUMP VHT5813 R is an industrial positive displacement pump used in high-pressure hydraulic systems. It delivers 13 L/min at 170 bar, making it suitable for applications requiring reliable flow and pressure performance, such as pressure testing, cleaning systems, and hydraulic power units.

What are the specifications of the Interpump PUMP VHT5813 R?

The Interpump PUMP VHT5813 R delivers 13 L/min at 170 bar, with a power rating of 4.22 kW at 1450 rpm. It weighs 7 kg and has overall dimensions of 241.5 mm. The pump is compact and designed for high-pressure hydraulic systems.

Where to buy the Interpump PUMP VHT5813 R in Singapore?

You can source the Interpump PUMP VHT5813 R through 3G Electric in Singapore. We handle logistics, customs clearance, and delivery to your facility. Contact us for pricing and lead time on this industrial pump.

How to install the Interpump PUMP VHT5813 R?

Install the Interpump PUMP VHT5813 R on a stable, level surface with proper alignment to the drive shaft. Use flexible couplings to reduce vibration. Ensure inlet and outlet piping are clean and correctly sized. Refer to the Interpump manual for torque specifications and seal installation.

Used in

Common applications for Interpump

Shipyard hull cleaning and surface prep — HT100 and W951 paired with dual-lance guns for dockyard service

Petrochemical heat-exchanger descaling — WS-series stainless pumps for neutral-pH cleaning chemistry

Outdoor HVAC condenser mist cooling — ZP180 pumps on rooftop chiller decks

Textile fibre-finishing — W170 and W270 for mist-jet application across drying lines

Municipal water treatment — W951 motor pumps for high-pressure disinfection chemical injection

Spare Parts & Repair Kits

Official VHT5813 parts list — 124 parts, 61 available in catalog

Official Parts List

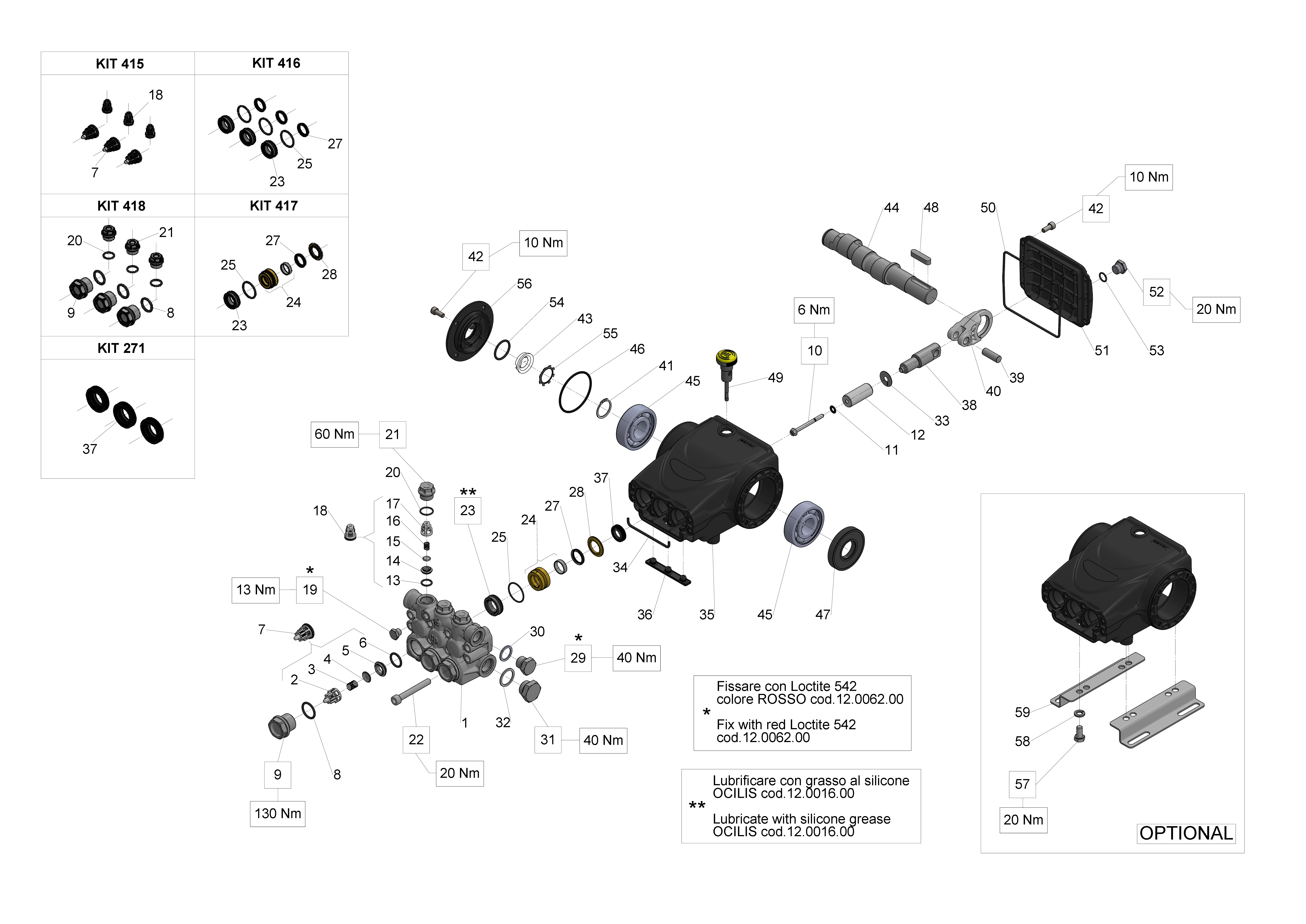

VHT5813 — Male shaft (key) exploded diagram

Repair Kits — Order These for Routine Maintenance

KIT271

KIT 271 OIL SEAL D.15 58/59 SERIES

34027101×1Available
