Pratissoli PUMP W1570 R
The Pratissoli PUMP W1570 R is an industrial-duty pump delivering 70 L/min at 150 bar, rated for 19.85 kW continuous power. Operating at 1450 rpm, this unit suits high-pressure applications requiring compact…
SKU 3G-ITP-01660
Also listed as: W01570000 · W01570 000
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
The Pratissoli PUMP W1570 R is an industrial-duty pump delivering 70 L/min at 150 bar, rated for 19.85 kW continuous power. Operating at 1450 rpm, this unit suits high-pressure applications requiring compact, reliable fluid transfer in manufacturing and processing environments.
Frequently Asked Questions
What is the Pratissoli PUMP W1570 R used for?
The Pratissoli PUMP W1570 R is an industrial-duty pump used for high-pressure fluid transfer in manufacturing and processing environments. It delivers 70 L/min at 150 bar, making it suitable for applications such as pressure washing, water jetting, and hydraulic systems that require compact, reliable performance.
What are the specifications of the Pratissoli PUMP W1570 R?
The Pratissoli PUMP W1570 R delivers 70 L/min at 150 bar (2175 psi) and 1450 rpm. It has a continuous power rating of 19.85 kW (27 hp), weighs 22.3 kg, and measures 345.5 x 242.5 x 199.5 mm. The pump features a male shaft with key and is designed for high-pressure industrial applications.
Where to buy the Pratissoli PUMP W1570 R in Singapore?
3G Electric supplies the Pratissoli PUMP W1570 R to customers in Singapore. We handle logistics, customs clearance, and delivery to your facility. Contact our team for a quotation and lead time on this high-pressure industrial pump.
How to install the Pratissoli PUMP W1570 R?
Install the Pratissoli PUMP W1570 R on a rigid, level base aligned with the drive motor. Use flexible hoses to reduce vibration and ensure the pump shaft rotates freely. Fill the crankcase with the recommended oil to the sight glass level before starting. Always follow the manufacturer's manual for torque specifications and alignment procedures.
Used in
Common applications for PratissoliSpare Parts & Repair Kits

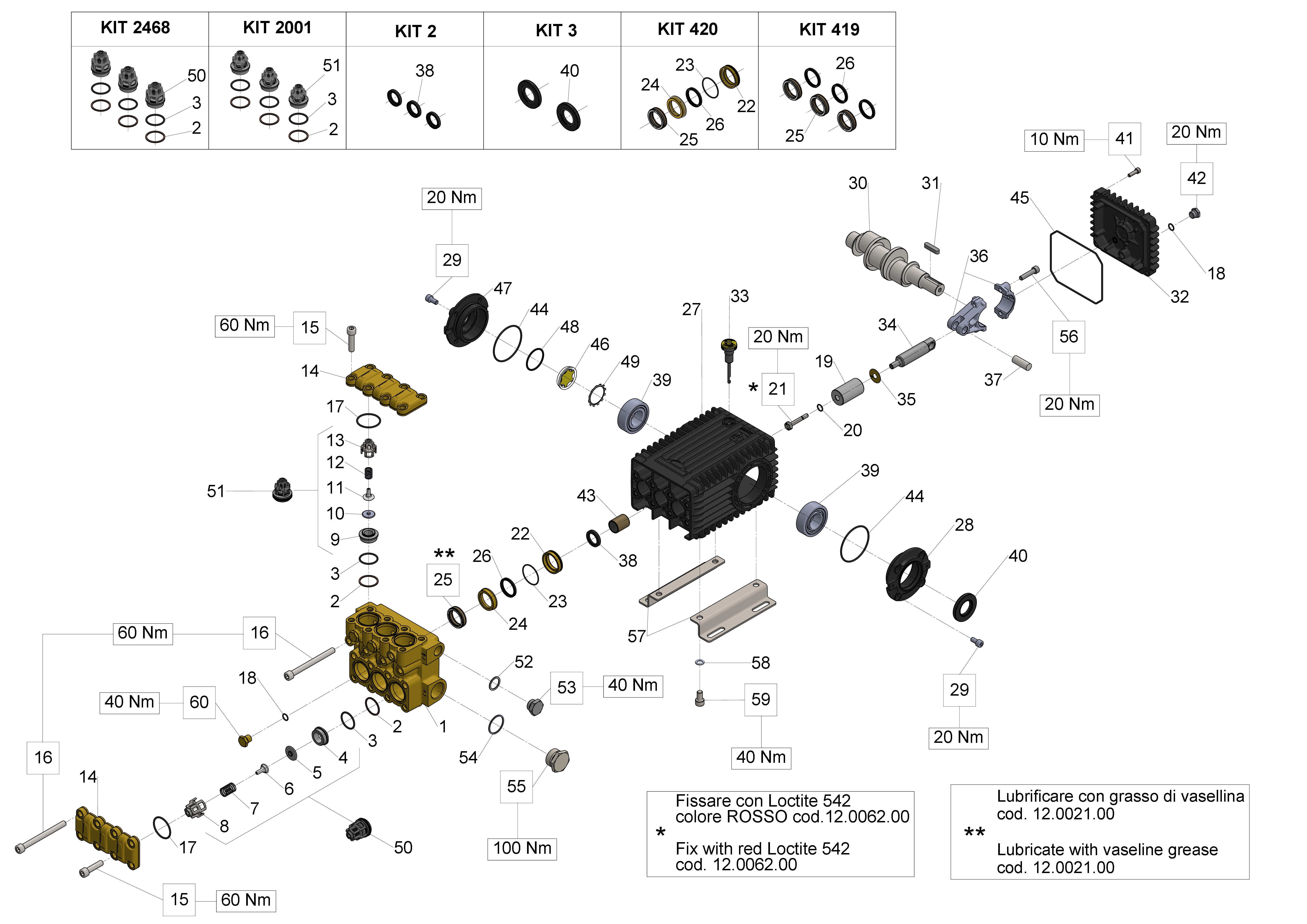

Official W1570 parts list — 124 parts, 37 available in catalog

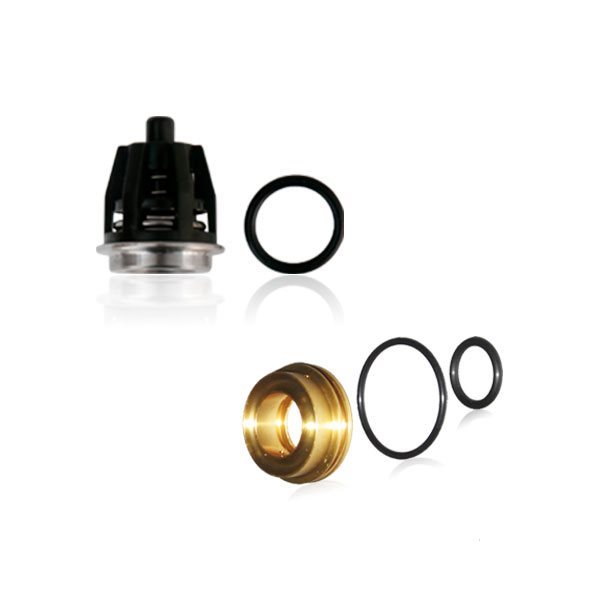

Repair Kits — Order These for Routine Maintenance
Individual Components
Need multiple parts? Request a bundled quote
37 parts available in our catalog — get a single quote with volume pricing
Official W1570 parts list — Industrial Pumps (Stainless Steel Versions Series 53 SS1)
Recommended Spare Parts
Pratissoli Products
3G Electric supplies Pratissoli industrial pumps. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
