RAIN BIRD Filtered Drain Valve: 125 psi Max Working Pressure, 1/2" MPT, 0.9 in Ht - Sprinkler Valves
RAIN BIRDSprinkler Valves

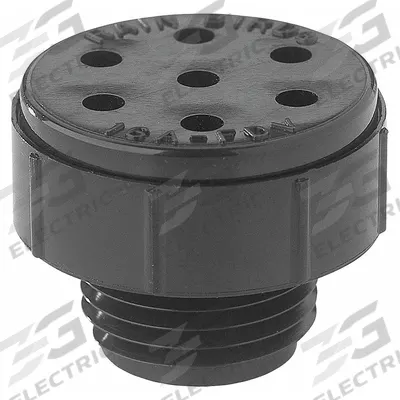

RAIN BIRD Filtered Drain Valve: 125 psi Max Working Pressure, 1/2" MPT, 0.9 in Ht

The RAIN BIRD Filtered Drain Valve (MPN 16A-FDV-C1) is a thermoplastic sprinkler valve with a 1/2" MPT connection. It has a maximum working pressure of 125 psi and dimensions of 0.9 inches in height and 1.1 inches in…

SKU 3G-OTH-381614

Brand
RAIN BIRD
Item
Filtered Drain Valve: 125 psi Max Working Pressure, 1/2" MPT, 0.9 in Ht
Category
Sprinkler Valves
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

RAIN BIRD
Manufacturer Part Number
16A-FDV-C1
Material
Thermoplastic
Wd
1.1 in
Ht
0.9 in
MPT
1/2"
Connection
1/2" MPT
Product Type
Filtered Drain Valve
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

RAIN BIRD Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The RAIN BIRD Filtered Drain Valve (MPN 16A-FDV-C1) is a thermoplastic sprinkler valve with a 1/2" MPT connection. It has a maximum working pressure of 125 psi and dimensions of 0.9 inches in height and 1.1 inches in width.

Frequently Asked Questions

What is a RAIN BIRD Filtered Drain Valve used for?

The RAIN BIRD Filtered Drain Valve (16A-FDV-C1) automatically drains water from low points in irrigation systems to prevent freezing damage. It filters debris to keep the valve clear, making it ideal for residential and commercial sprinkler systems where reliable drainage is needed.

What are the specifications of the RAIN BIRD 16A-FDV-C1?

This RAIN BIRD Filtered Drain Valve has a maximum working pressure of 125 psi, a 1/2" MPT connection, and is made of thermoplastic. It measures 0.9 inches in height and 1.1 inches in width. The manufacturer part number is 16A-FDV-C1.

Where to buy a RAIN BIRD Filtered Drain Valve worldwide?

You can source the RAIN BIRD Filtered Drain Valve (16A-FDV-C1) through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations, ensuring you receive genuine RAIN BIRD components for your irrigation system.

How to install a RAIN BIRD Filtered Drain Valve?

Install the RAIN BIRD Filtered Drain Valve at the lowest point of your irrigation line using the 1/2" MPT connection. Ensure the valve is oriented vertically so the filter can trap debris. Test the system for leaks after installation. For best results, follow standard irrigation valve installation practices.

Used in

Common applications for RAIN BIRD
Agricultural irrigation — RAIN BIRD 42SA+ rotor sprinkler for large-area crop watering
Commercial landscaping — RAIN BIRD 1802Q-25 spray head for shrub beds
Residential garden watering — RAIN BIRD emitter tubing (ET63-100S) for drip systems
Greenhouse irrigation — RAIN BIRD micro bubbler (MBF4PKS) for targeted plant watering
Sports field maintenance — RAIN BIRD 1802F-25 full-circle spray head for turf coverage
Orchard irrigation — RAIN BIRD spot watering emitter (SW20/10PS) for tree root zones
