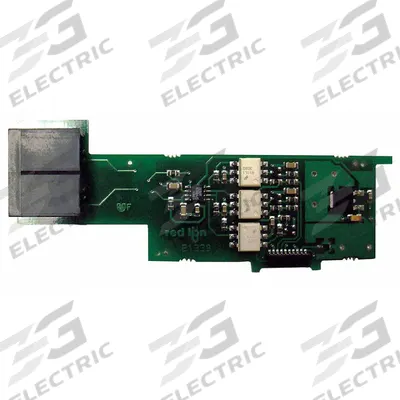

RED LION Extended RS485 Serial Communications Output Card with Dual RJ11 Connector: Cards
The RED LION Extended RS485 Serial Communications Output Card (PAXCDC1C) is a communication output card accessory for RED LION PAX panel meters. It features a dual RJ11 connector and provides RS485 serial output…
SKU 3G-OTH-29379
Need installation or engineering help?
Ask a question
Product Description
The RED LION Extended RS485 Serial Communications Output Card (PAXCDC1C) is a communication output card accessory for RED LION PAX panel meters. It features a dual RJ11 connector and provides RS485 serial output capability. This card is designed for use with RED LION PAX series panel meters.
Frequently Asked Questions
What is the RED LION PAXCDC1C communication card used for?
The RED LION PAXCDC1C Extended RS485 Serial Communications Output Card is used to add RS485 serial output capability to RED LION PAX series panel meters. It enables data communication over longer distances in industrial automation, process control, and monitoring applications where reliable serial data transmission is required.
What are the specifications of the RED LION PAXCDC1C?
The RED LION PAXCDC1C is a communication output card accessory for PAX panel meters. It features a dual RJ11 connector and provides RS485 serial output. The card is designed for use with RED LION PAX series meters and is manufactured under part number PAXCDC1C. It is classified as a panel meter accessory.
Where to buy the RED LION PAXCDC1C worldwide?
You can source the RED LION PAXCDC1C Extended RS485 Serial Communications Output Card through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time on this communication card.
How to install the RED LION PAXCDC1C communication card?
To install the RED LION PAXCDC1C, first power down the PAX panel meter. Insert the card into the designated expansion slot on the meter's rear panel, ensuring the dual RJ11 connectors align properly. Secure the card with the provided hardware. Refer to the PAX meter manual for detailed wiring and configuration of the RS485 output.
Used in
Common applications for RED LIONRED LION Products
3G Electric supplies RED LION panel meter accessories. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
