SCHNEIDER Phase Monitor Relay: DIN-Rail Mounted, 5 A Current Rating - DIN-Rail Mounted Relays
SCHNEIDERDIN-Rail Mounted Relays

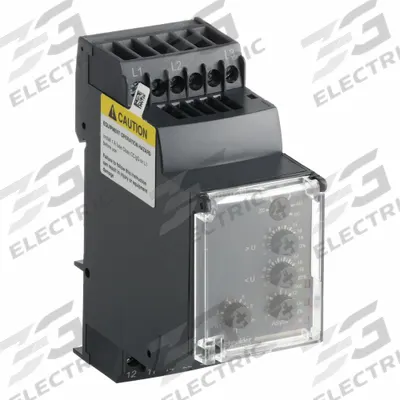

SCHNEIDER Phase Monitor Relay: DIN-Rail Mounted, 5 A Current Rating

The SCHNEIDER Phase Monitor Relay is a DIN-Rail Mounted relay that monitors phase sequence. It has a 5 A current rating and operates on 208 to 480V AC. The manufacturer part number is RM35TF30.

SKU 3G-OTH-38396

Brand
SCHNEIDER
Item
Phase Monitor Relay: DIN-Rail Mounted, 5 A Current Rating
Category
DIN-Rail Mounted Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
RM35TF30
AC
208 to 480V
Current Rating
5 A
Monitored Parameters
Phase Sequence
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER Phase Monitor Relay is a DIN-Rail Mounted relay that monitors phase sequence. It has a 5 A current rating and operates on 208 to 480V AC. The manufacturer part number is RM35TF30.

Frequently Asked Questions

What is the SCHNEIDER RM35TF30 phase monitor relay used for?

The SCHNEIDER RM35TF30 phase monitor relay is used to monitor phase sequence in three-phase electrical systems. It helps protect motors and other equipment from phase reversal, which can cause damage or operational failure. Common applications include industrial motor control panels, conveyors, pumps, and compressors where correct phase rotation is critical.

What are the specifications of the SCHNEIDER RM35TF30 phase monitor relay?

The SCHNEIDER RM35TF30 is a DIN-rail mounted phase monitor relay that monitors phase sequence. It has a current rating of 5 A and operates on a supply voltage of 208 to 480V AC. The manufacturer part number is RM35TF30. It is designed for industrial environments requiring reliable phase rotation detection.

Where to buy the SCHNEIDER RM35TF30 phase monitor relay worldwide?

You can source the SCHNEIDER RM35TF30 phase monitor relay through 3G Electric, a global industrial equipment distributor established in 1990. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time; we supply genuine SCHNEIDER components for industrial applications.

How to install the SCHNEIDER RM35TF30 phase monitor relay?

To install the SCHNEIDER RM35TF30, mount it on a standard DIN rail in your control panel. Connect the three-phase supply lines to the appropriate input terminals per the wiring diagram. Ensure the relay is powered within its 208 to 480V AC range. Verify correct phase sequence monitoring by observing the output contacts during commissioning.
