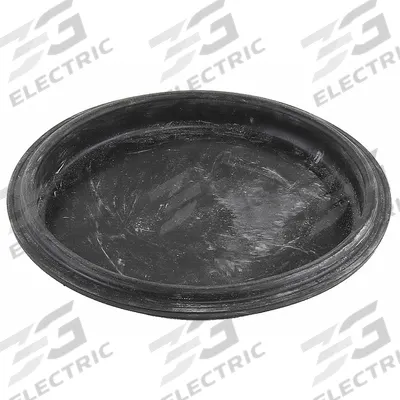

SCHNEIDER Diaphragm: Mfr Part # PNV-202
SKU 3G-OTH-76967
Need installation or engineering help?
Ask a question
Frequently Asked Questions
What is the SCHNEIDER PNV-202 diaphragm used for?
The SCHNEIDER PNV-202 diaphragm is a replacement seal component for HVACR equipment, used in valves and regulators to control fluid or gas flow. It ensures reliable pressure containment and modulation in refrigeration, heating, and industrial process systems.
What are the specifications of the SCHNEIDER PNV-202 diaphragm?
The SCHNEIDER PNV-202 is a diaphragm classified under Seals, Fittings & Fasteners for HVACR Equipment. Its manufacturer part number is PNV-202. For detailed dimensions and material compatibility, consult the product datasheet or contact 3G Electric.
Where to buy the SCHNEIDER PNV-202 diaphragm worldwide?
3G Electric supplies the SCHNEIDER PNV-202 diaphragm to customers worldwide. We handle full logistics, customs clearance, and delivery to your site. Contact our team to place an order or request a quote for this genuine Schneider replacement part.
How to install the SCHNEIDER PNV-202 diaphragm?
Install the SCHNEIDER PNV-202 diaphragm by first depressurizing the system and removing the valve bonnet. Replace the old diaphragm, ensuring correct alignment and seating. Reassemble and torque fasteners to manufacturer specifications. Always follow OEM guidelines for safe operation.
