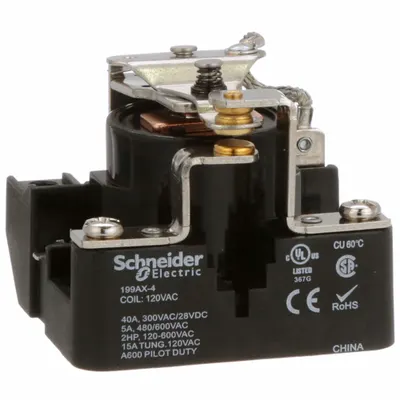

SCHNEIDER Open Power Relay: Surface Mounted, 40 A Current Rating, 120V AC, SPDT
The SCHNEIDER Open Power Relay is a surface-mounted relay from the 199 Power Series, featuring a square base and screw terminal electrical connection. It is rated for 5 A at 600V AC (resistive load) and is identified…
SKU 3G-OTH-37765
Also listed as: 199AX4 · 199AX 4
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
The SCHNEIDER Open Power Relay is a surface-mounted relay from the 199 Power Series, featuring a square base and screw terminal electrical connection. It is rated for 5 A at 600V AC (resistive load) and is identified by manufacturer part number 199AX-4.
Frequently Asked Questions
What is the SCHNEIDER Open Power Relay used for?
The SCHNEIDER Open Power Relay is used for switching resistive loads in industrial control panels, HVAC systems, and automation equipment. Its surface-mounted design with screw terminals simplifies wiring in fixed installations. The 199AX-4 model handles up to 5 A at 600V AC, making it suitable for motor starters and lighting contactor applications.
What are the specifications of the SCHNEIDER 199AX-4 relay?
The SCHNEIDER 199AX-4 is a surface-mounted open power relay from the 199 Power Series. It has a square base, SPDT contact configuration, and screw terminal connections. Operating current is 5 A at 600V AC (resistive load). The relay is rated for 40 A current rating and 120V AC coil voltage, with 5 pins/terminals.
Where to buy SCHNEIDER 199AX-4 relay worldwide?
You can source the SCHNEIDER 199AX-4 relay worldwide through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time. 3G Electric supplies genuine SCHNEIDER components to industrial buyers across multiple regions.
How to install a SCHNEIDER surface-mounted relay?
Mount the SCHNEIDER 199AX-4 relay on a clean, flat surface using the square base. Connect wires to the screw terminals per the wiring diagram on the relay label. Ensure the coil voltage matches your control circuit (120V AC). Use proper torque on terminals to avoid loosening. Always de-energize the circuit before installation.
