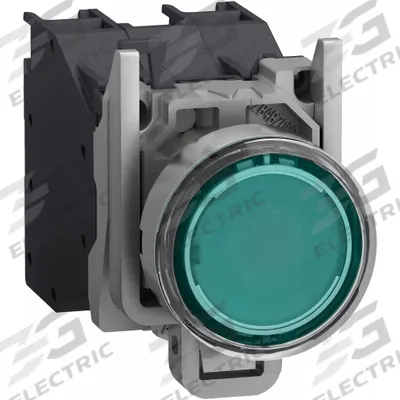

SCHNEIDER Illuminated Push Button: 22 mm, Metallic, Flush Profile - Illuminated Flush-Mount Push Buttons
SCHNEIDERIlluminated Flush-Mount Push Buttons

SCHNEIDER Illuminated Push Button: 22 mm, Metallic, Flush Profile

The SCHNEIDER ELECTRIC Illuminated Push Button (SKU 292MK2, MPN XB4BP383BM5GEX) is a metallic, flush-profile push button operator from the XB4 series. This momentary-action device features a 1NO contact…

SKU 3G-OTH-31382

Brand
SCHNEIDER
Item
Illuminated Push Button: 22 mm, Metallic, Flush Profile
Category
Illuminated Flush-Mount Push Buttons
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
XB4BP383BM5GEX
Series
XB4
Action
Momentary
Product Type
Push Button Operators
AC Contact Rating
6 A @ 120 V
DC Contact Rating
0.55 A @ 125 V
Operator Material
Metal
Operator Illumination
Illuminated
Push Button Material Type
Metallic
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER ELECTRIC Illuminated Push Button (SKU 292MK2, MPN XB4BP383BM5GEX) is a metallic, flush-profile push button operator from the XB4 series. This momentary-action device features a 1NO contact configuration, with an AC contact rating of 6 A @ 120 V and a DC contact rating of 0.55 A @ 125 V, and is illuminated.

Frequently Asked Questions

What is the SCHNEIDER ELECTRIC XB4BP383BM5GEX illuminated push button used for?

This illuminated push button is used as a momentary control operator in industrial control panels, machinery, and automation systems. It provides visual status indication and reliable switching for start/stop or command functions in harsh environments.

What are the specifications of the SCHNEIDER XB4BP383BM5GEX push button?

The SCHNEIDER XB4BP383BM5GEX is a metallic, flush-profile illuminated push button from the XB4 series. It features momentary action, 1NO contact, AC rating of 6 A @ 120 V, and DC rating of 0.55 A @ 125 V. The operator is illuminated and made of metal.

Where to buy the SCHNEIDER XB4BP383BM5GEX push button worldwide?

You can source the SCHNEIDER XB4BP383BM5GEX illuminated push button from 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations, ensuring a smooth procurement process for your facility.

How to install the SCHNEIDER XB4BP383BM5GEX illuminated push button?

Install the push button into a 22 mm panel cutout, secure it with the provided mounting nut, and connect the 1NO contact according to your control circuit. Ensure the supply voltage matches the LED rating. Follow standard electrical safety practices and consult the SCHNEIDER XB4 series manual for wiring details.
