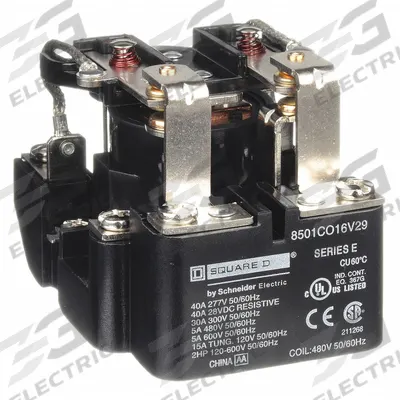

SCHNEIDER Open Power Relay: Surface Mounted, 30 A Current Rating, 480V AC, DPDT - Surface-Mounted Relays
SCHNEIDERSurface-Mounted Relays

SCHNEIDER Open Power Relay: Surface Mounted, 30 A Current Rating, 480V AC, DPDT

The SCHNEIDER Open Power Relay: Surface Mounted (SKU 2DR63, MPN 8501CO16V29) is a surface-mounted relay from the 8501C Series. It features a square base type, through-panel mounting style, and screw clamp electrical…

SKU 3G-OTH-37368

Brand
SCHNEIDER
Item
Open Power Relay: Surface Mounted, 30 A Current Rating, 480V AC, DPDT
Category
Surface-Mounted Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
8501CO16V29
Series
8501C Series
Type
DPDT
AC
480V
Base Type
Square
Current Rating
30 A
Mounting Style
Through Panel
Pins/Terminals
8
Electrical Connection
Screw Clamp
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER Open Power Relay: Surface Mounted (SKU 2DR63, MPN 8501CO16V29) is a surface-mounted relay from the 8501C Series. It features a square base type, through-panel mounting style, and screw clamp electrical connection. This DPDT relay has a 30 A current rating and 480V AC voltage rating with 8 pins/terminals.

Frequently Asked Questions

What is the SCHNEIDER 8501CO16V29 open power relay used for?

The SCHNEIDER 8501CO16V29 open power relay is used for switching high-current industrial loads up to 30 A at 480V AC. It is commonly applied in motor control, HVAC systems, and panel building where a DPDT contact configuration and surface-mounted installation are required.

What are the specifications of the SCHNEIDER 8501CO16V29 relay?

The SCHNEIDER 8501CO16V29 is a DPDT open power relay from the 8501C Series. It has a 30 A current rating, 480V AC voltage rating, square base type, through-panel mounting style, screw clamp electrical connection, and 8 pins/terminals. The manufacturer part number is 8501CO16V29.

Where to buy the SCHNEIDER 8501CO16V29 relay worldwide?

You can source the SCHNEIDER 8501CO16V29 relay through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time on this surface-mounted relay.

How to install the SCHNEIDER 8501CO16V29 surface-mounted relay?

Mount the SCHNEIDER 8501CO16V29 relay through the panel using the square base. Connect wires via the screw clamp terminals, ensuring torque meets manufacturer recommendations. Verify coil voltage matches your control circuit. Always de-energize the system before installation and follow standard electrical safety practices.
