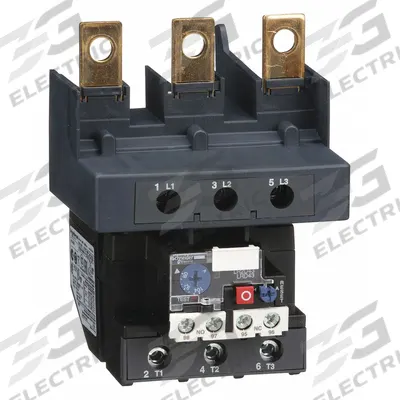

SCHNEIDER Overload Relay: Thermal Protection, 3 Poles, 1NO/1NC, Phase Loss Sensitivity - IEC Thermal Overload Relays
SCHNEIDERIEC Thermal Overload Relays

SCHNEIDER Overload Relay: Thermal Protection, 3 Poles, 1NO/1NC, Phase Loss Sensitivity

The SCHNEIDER LRD4365 is an IEC thermal overload relay with integrated bimetallic elements, eliminating the need for separate thermal units. It features 1NO/1NC auxiliary contacts, screw clamp terminals, and phase…

SKU 3G-OTH-42498

Brand
SCHNEIDER
Item
Overload Relay: Thermal Protection, 3 Poles, 1NO/1NC, Phase Loss Sensitivity
Category
IEC Thermal Overload Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
LRD4365
Type
1NO/1NC, Phase Loss Sensitivity, 80 A – 104 A
Poles
3
Compatible Contactors
TeSys Deca (115 to 150 Amp Models)
Auxiliary Contact Form
1NO/1NC
Maximum Voltage Rating
1000V AC
Phase Loss Sensitivity
Yes
Thermal Units Required
None (Relay Includes Integrated Bimetallic Elements)
Terminal Connection Type
Screw Clamp Terminals
Compatible Contactor Series
TeSys Deca
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER LRD4365 is an IEC thermal overload relay with integrated bimetallic elements, eliminating the need for separate thermal units. It features 1NO/1NC auxiliary contacts, screw clamp terminals, and phase loss sensitivity, with a maximum voltage rating of 1000V AC. This 3-pole relay is compatible with TeSys Deca contactors in the 115 to 150 Amp range.

Frequently Asked Questions

What is the SCHNEIDER LRD4365 overload relay used for?

The SCHNEIDER LRD4365 is an IEC thermal overload relay that protects motors from overcurrent and phase loss. It is used in industrial motor control applications with TeSys Deca contactors rated 115 to 150 Amps, providing reliable thermal protection via integrated bimetallic elements.

What are the specifications of the SCHNEIDER LRD4365?

The SCHNEIDER LRD4365 is a 3-pole thermal overload relay with 1NO/1NC auxiliary contacts, screw clamp terminals, and a maximum voltage rating of 1000V AC. It has phase loss sensitivity and covers an adjustment range of 80 A to 104 A. No separate thermal units are needed.

Where to buy the SCHNEIDER LRD4365 worldwide?

You can source the SCHNEIDER LRD4365 through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time.

How to select the correct SCHNEIDER overload relay for a motor?

To select the correct SCHNEIDER overload relay, match the relay's current range (e.g., 80 A – 104 A for the LRD4365) to the motor's full-load current. Ensure compatibility with your contactor series, such as TeSys Deca, and verify phase loss sensitivity is needed for your application.
