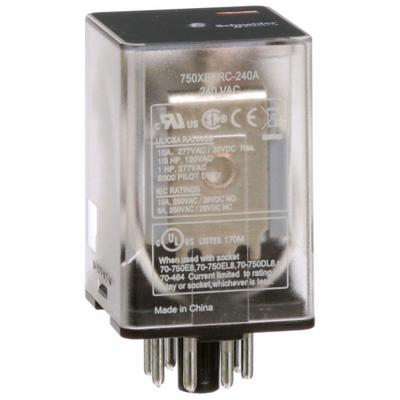

SCHNEIDER General Purpose Relay: Socket Mounted, 10 A Current Rating, 240V AC, DPDT - Socket-Mounted Relays
SCHNEIDERSocket-Mounted Relays

SCHNEIDER General Purpose Relay: Socket Mounted, 10 A Current Rating, 240V AC, DPDT

The SCHNEIDER General Purpose Relay: Socket Mounted is a plug-in relay from the 750R Series with an octal base and round pins. It features an 8-pin terminal electrical connection, a DPDT contact configuration, and an…

SKU 3G-OTH-42032

Brand
SCHNEIDER
Item
General Purpose Relay: Socket Mounted, 10 A Current Rating, 240V AC, DPDT
Category
Socket-Mounted Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
750XBXRC-240A
Series
750R Series
Type
DPDT, A Socket
AC
240V
Base Type
Octal
Pin Shape
Round
Current Rating
10 A
Mounting Style
Plug-In
Operating Current
10 A at 30V DC (Resistive Load Conforming to UL)
Electrical Connection
8-Pin Terminal
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER General Purpose Relay: Socket Mounted is a plug-in relay from the 750R Series with an octal base and round pins. It features an 8-pin terminal electrical connection, a DPDT contact configuration, and an operating current of 10 A at 30V DC (resistive load conforming to UL) with a 240V AC coil voltage. The relay is socket mounted and identified by manufacturer part number 750XBXRC-240A.
