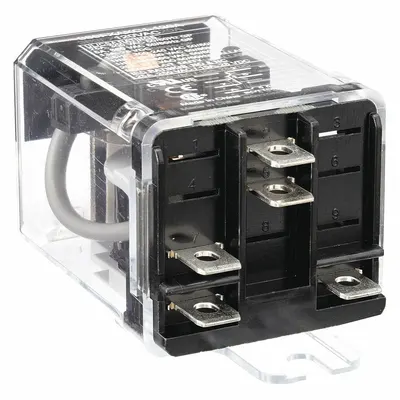

SCHNEIDER Enclosed Power Relay: Surface (Side Flange) Mounted, 25 A Current Rating
The SCHNEIDER 389F Power Series enclosed power relay is a surface-mounted relay with a side flange mounting style and square base. It features a quick-connect electrical connection and is rated for an operating…
SKU 3G-OTH-37016
Also listed as: 389FXAXC1120A · 389FXAXC1 120A
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
The SCHNEIDER 389F Power Series enclosed power relay is a surface-mounted relay with a side flange mounting style and square base. It features a quick-connect electrical connection and is rated for an operating current of 15 A at 28V DC-1 (NO/NC). The relay has a 25 A current rating at 120V AC and is SPDT, with manufacturer part number 389FXAXC1-120A.
Frequently Asked Questions
What is the SCHNEIDER 389FXAXC1-120A enclosed power relay used for?
The SCHNEIDER 389F Power Series enclosed power relay is used for industrial switching applications requiring reliable control of loads up to 25 A at 120V AC. Its SPDT configuration and side flange mounting make it suitable for panel builders and machinery OEMs needing a compact, surface-mounted relay with quick-connect wiring.
What are the specifications of the SCHNEIDER 389FXAXC1-120A relay?
The SCHNEIDER 389FXAXC1-120A is a 389F Power Series enclosed power relay with a square base and side flange mounting. It has a 25 A current rating at 120V AC, SPDT contacts, and an operating current of 15 A at 28V DC-1 (NO/NC). Electrical connection is via quick-connect terminals.
Where to buy the SCHNEIDER 389FXAXC1-120A relay worldwide?
You can source the SCHNEIDER 389FXAXC1-120A relay through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time on this SCHNEIDER 389F Power Series relay.
How to install the SCHNEIDER 389FXAXC1-120A surface-mounted relay?
Mount the SCHNEIDER 389FXAXC1-120A relay using its side flange to a flat surface with appropriate hardware. Connect wiring via the quick-connect terminals, ensuring the coil voltage matches the 120V AC supply. Follow standard industrial relay installation practices and verify the load does not exceed the 25 A rating.
